MCR310-3-16: DescriptionSilicon Controlled Rectifier, 10A I(T)RMS, 100V V(DRM), 100V V(RRM), 1 Element, TO-220, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size73KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

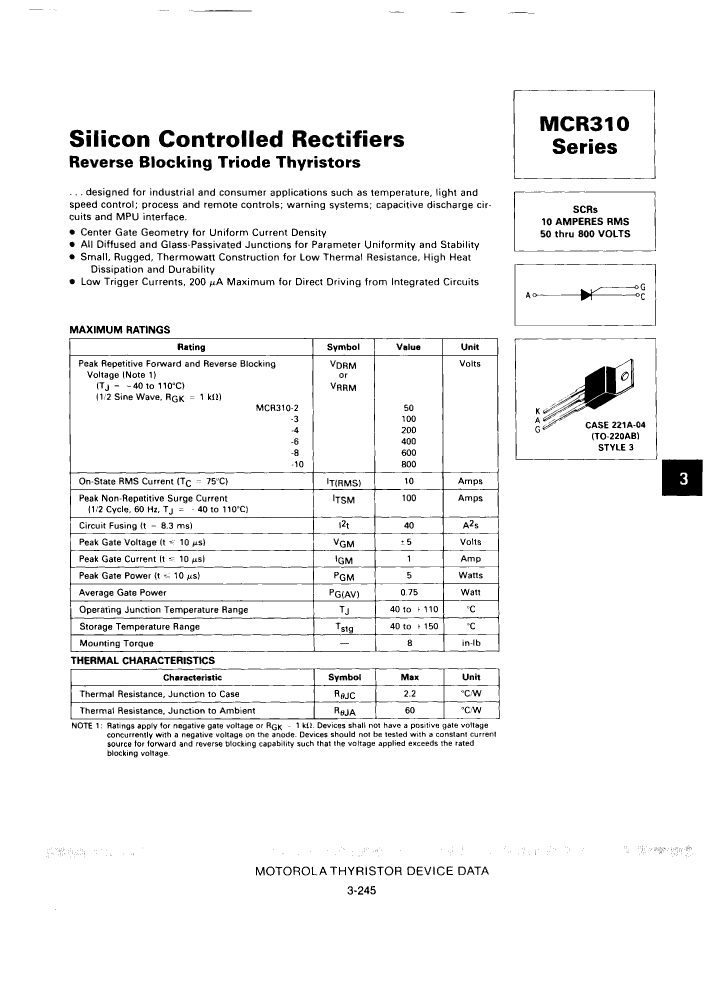

MCR310-3-16 Overview

Silicon Controlled Rectifier, 10A I(T)RMS, 100V V(DRM), 100V V(RRM), 1 Element, TO-220, 2 PIN

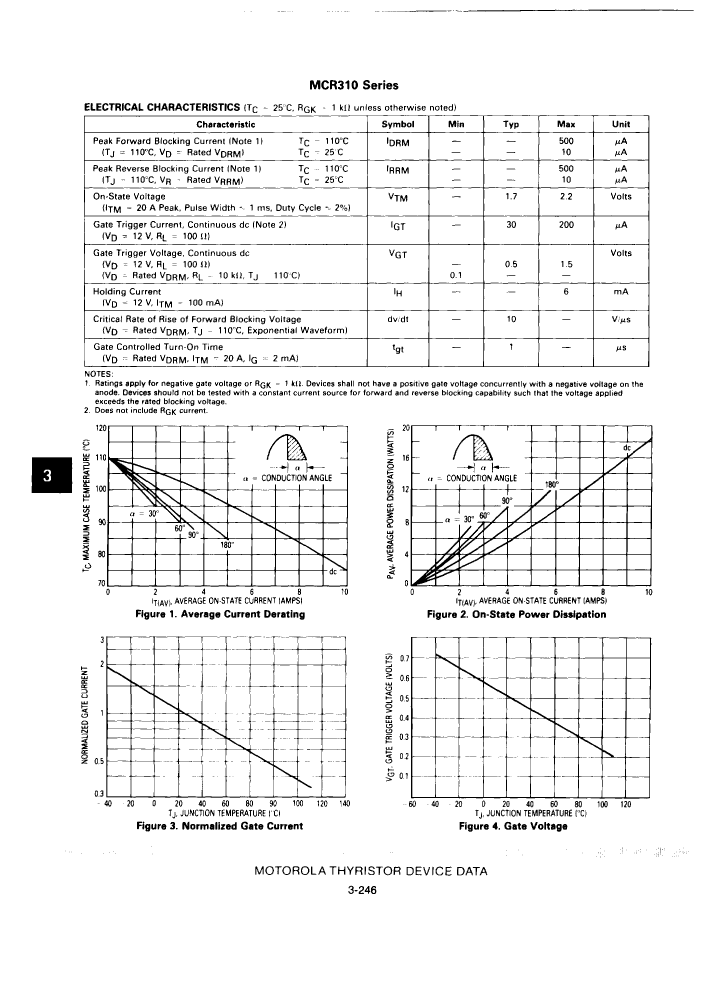

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-30 code	R-PSFM-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	10 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	100 V
Repeated peak reverse voltage	100 V
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Trigger device type	SCR
