GPSCLS11

Description
Snap Acting/Limit Switch, SPDT, Momentary, 25A, 250VDC, 15.61mm, Solder Terminal, Steel Lever Actuator, Panel Mount,
CategoryMechanical and electronic products    switch
File Size191KB,4 Pages
ManufacturerThe Cherry Corporation
Environmental Compliance
Download Datasheet Parametric View All

GPSCLS11 Overview

Snap Acting/Limit Switch, SPDT, Momentary, 25A, 250VDC, 15.61mm, Solder Terminal, Steel Lever Actuator, Panel Mount,

GPSCLS11 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerThe Cherry Corporation
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator stroke15.61 mm
Actuator typeSTEEL LEVER
body width17.6 mm
body height23.5 mm
Body length or diameter49.6 mm
Contact (AC) maximum rated R load15A@250VAC
Maximum contact current (AC)15 A
Maximum contact current (DC)25 A
Contact (DC) maximum rated R load25A@250VDC
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)250 V
Manufacturer's serial numberGP
Installation featuresPANEL MOUNT
Maximum operating force0.67 N
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Maximum pre-travel10 mm
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typeSNAP ACTING/LIMIT SWITCH
Termination typeSOLDER

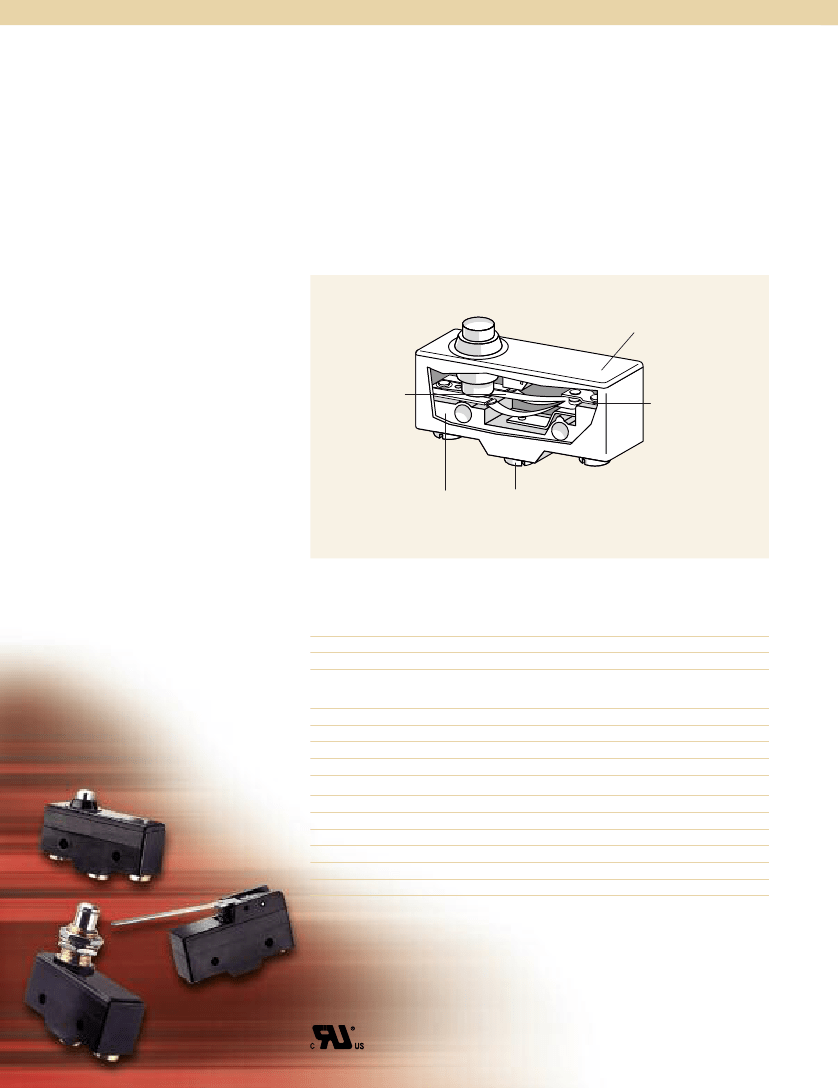

HEAVY-DUTY SNAP ACTION
GP Series
Features
Ultra-small travel differential
Mechanical life tested to 1 million cycles
Current switching to 20 amps
Wide variety of actuators
Screw or solder terminals standard
Low operating forces available
High-strength
beryllium copper
alloy spring
Gold over silver
contacts for versatile,
long-life switching
Rugged phenolic
case and cover
Insert molded
terminal pins
Polished brass screws and lock washers
(solder terminals optional)
Electrical Ratings
Switch
Series
UL1054 Rating
GP*B
GP*C
20A, 1HP, 125VAC; 20A, 2HP, 250VAC; .5A, 125VDC; .25A, 250VDC
15A, 1/8HP, 125VAC; 15A, 1/4HP, 250VAC; .5A, 125VDC; .25A, 250VDC
Specifications
Dielectric Strength:
Insulation Resistance:
Initial Contact Resistance:
Temperature Range:
Materials
1000VAC 50/60Hz for 1 minute
100M ohms min at 500VDC
15m ohms max
-20° to +85°C
Phenolic
Phenolic
Beryllium Copper Alloy
Silver Alloy
Brass Screw Terminals; Copper Alloy Solder Terminals
Stainless Steel
Case:
Cover:
Spring:
Contacts:
Terminals:
Lever Actuator:
