NAN0612T-680M-S

Description
General Purpose Inductor, 68uH, 20%, 1 Element, SMD,
CategoryPassive components    inductor
File Size42KB,1 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric View All

NAN0612T-680M-S Overview

General Purpose Inductor, 68uH, 20%, 1 Element, SMD,

NAN0612T-680M-S Parametric

Parameter NameAttribute value
MakerYAGEO
Reach Compliance Codecompliant
ECCN codeEAR99
DC Resistance2.1 Ω
Nominal inductance(L)68 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberNAN
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%

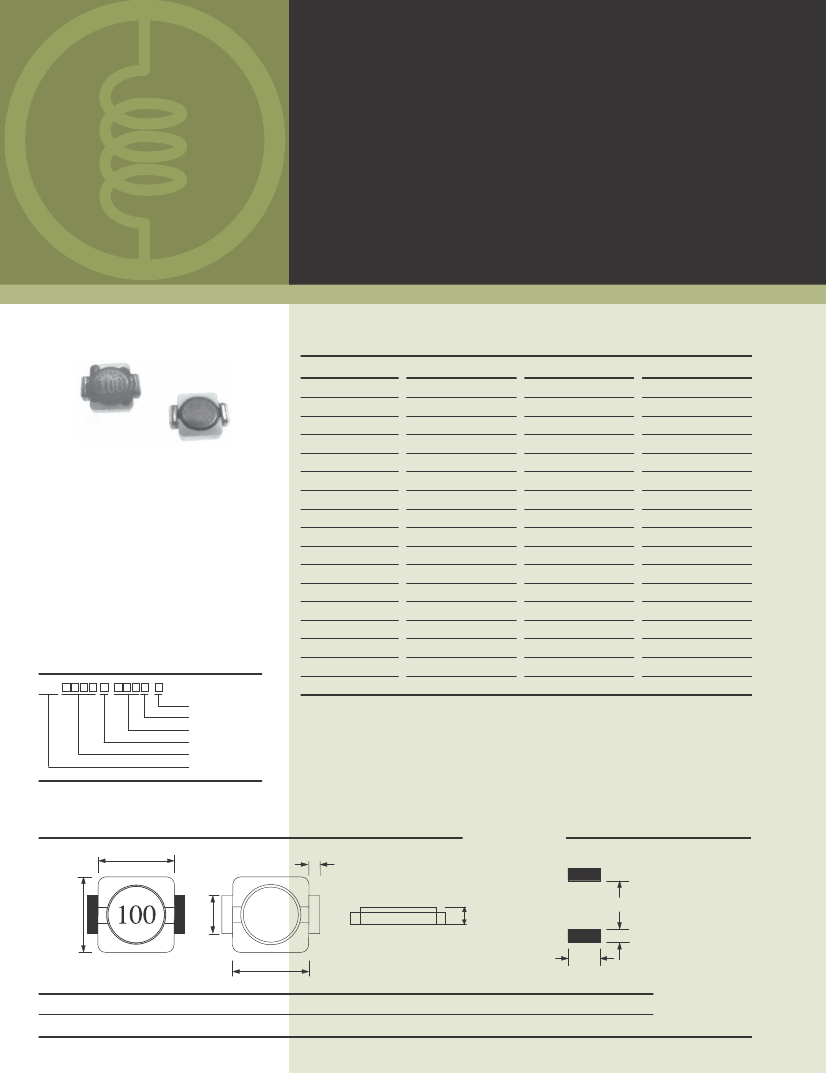

YAGEO CORPORATION
SMD INDUCTOR / BEADS
Mini Power Inductors
NAN Series
ELECTRICAL CHARACTERISTICS
TYPE
NAN0612T-1R2M-S
NAN0612T-2R2M-S
NAN0612T-3R3M-S
NAN0612T-4R7M-S
Inductance L( H)
1
1.20
2.20
3.30
4.70
6.80
10.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
DCR ( ) MAX.
0.060
0.125
0.155
0.206
0.240
0.370
0.460
0.580
0.668
0.950
1.100
1.280
1.380
1.700
2.100
2.700
3.100
IDC (mA) MAX.
2
1800
1200
960.0
900.0
800.0
700.0
600.0
560.0
500.0
450.0
420.0
380.0
340.0
300.0
280.0
260.0
235.0
(NAN0612)
Features
• Very low profile.
• Constructed enclosed in a arugged to provide
optimum pick and place operations.
• High inductance & high cuttent ultra ow profile
power inductors.
Applications
DC to DC converter
LCD
Mobile telephone
NAN0612T-6R8M-S
NAN0612T-100M-S
NAN0612T-150M-S
NAN0612T-180M-S
NAN0612T-220M-S
NAN0612T-270M-S
NAN0612T-330M-S
NAN0612T-390M-S
NAN0612T-470M-S
NAN0612T-560M-S
PRODUCT IDENTIFICATION
NAN
-
-
International No.
Tolerance
Inductance
Packaging Style
Dimensions
Product Symbol
NAN0612T-680M-S
NAN0612T-820M-S
NAN0612T-101M-S
1. Test Frequency 100KHZ / 0.1Vrms.
2. DC current at which the Inductance drops 10%(typ) from its value without current.
3. Operating Temperature Range -40 C to 85 C
4. Electrlcal speclfication at 25 C
5. Inductance : M : 20%
SHAPE AND DIMENSIONS
A
D
Dimensions : mm
LAND PATTERNS PCB
G
B
E
C
H
F
I
TYPE
NAN0612
A
6.6
B
5.3 0.3
C
1.2
D
0.9
E
3.0
F
4.5
G
4.0
H
1.0
I
2.3
