FLAT
2.000
[50.80 ]
MAIN POLARIZING KEYWAY
(1.030 )
[26.16 ]
.505
[12.83 ]
.100
[2.54 ]
RECEPTACLE
HOUSING
NC
A1
A
NEW RELEASE PER E.O. P21414
REVISED PER ECO-14-019072
REVISED PER ECO-16-013285
24AUG2012
23FEB2015
08SEP2016
IG
JA
DD
DM
DM
DM
D
1
GROMMET
POLARIZING
INDICATOR
(1.618 )
[41.10 ]
1.875
[47.63 ]
C
1.586
[40.28 ]
CONTACT
INSERTION
THIS SIDE
C
1
1
(1-11/16-18 UNEF-2A)
6.
B
5
4
RECEPTACLE IS SUPPLIED WITH DUST CAP (2415-001-2405)
NOTED DIMENSION DOES NOT INCLUDE GROMMET PROTRUSION.
MATERIAL: RECEPTACLE HOUSING: PA66 GF10 (BLACK)
THREADED ADAPTER: PA66 GF10 (GREEN, GRAY, BLUE)
GROMMET: SILICONE (ORANGE-RED)
SEE 0425-021-0000 APPLICATION SPECIFICATION
A. RECOMMENDED WIRE INSULATION RANGE
B. CONTACT REMOVAL TOOLS
C. RECOMMENDED MOUNTING HOLE & PANEL THICKNESS
D. MOUNTING HARDWARE & MOUNTING TORQUE.
THIS
X
XX
XXXX
RECEPTACLE MATES WITH HDP26-24-XXP/SX-XXXX PLUG
= SEAL TYPE (N,T,E)
= INSERT ARRANGEMENT
= MODIFICATION
8
1.635 .025
[41.53 0.63 ]
5
(1 11/16-12UN-2A)
THREADED ADAPTER
7
DATE CODE
8
DUST CAP
POLARIZING
INDICATOR
B
3
DATE CODE: IDENTIFIES THE YEAR, MONTH, DAY
AND HOUR OF ASSEMBLY.
YEAR: FIRST AND SECOND DIGITS. (14 = 2014)
MONTH: THRID DIGIT, EXCLUDING I. A = JAN.,
B = FEB., C = MARCH.... (K = OCTOBER)
DAY: FOURTH AND FIFTH DIGITS (14 = 14th DAY)
HOUR: SIXTH AND SEVENTH DIGITS (11 = 11AM)
PART MODIFICATION: THREADED ADAPTER
ACCEPT BACKSHELL: 2428-024-2405
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
7
2.
A
1
DIMENSIONS:
INCHES[mm]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
SEE CUSTOMER DRAWING, 0425-014-2400 FOR AVAILABLE INSERT
ARRANGEMENTS AND PART NUMBERS.
NOTES:
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
13JUL2012
ILINA GRANTCHAROVA
CHK
23AUG2012
ILINA GRANTCHAROVA
APVD
23AUG2012
DAVID MEYER
PRODUCT SPEC
APPLICATION SPEC
SCALE
1:1
TE Connectivity
NAME
.015 [0.38]
0425-021-0000
3
SIZE
FINISH
4
N/A
0°30'0"
WEIGHT
Customer Drawing
A3
4AFU8
CAGE CODE

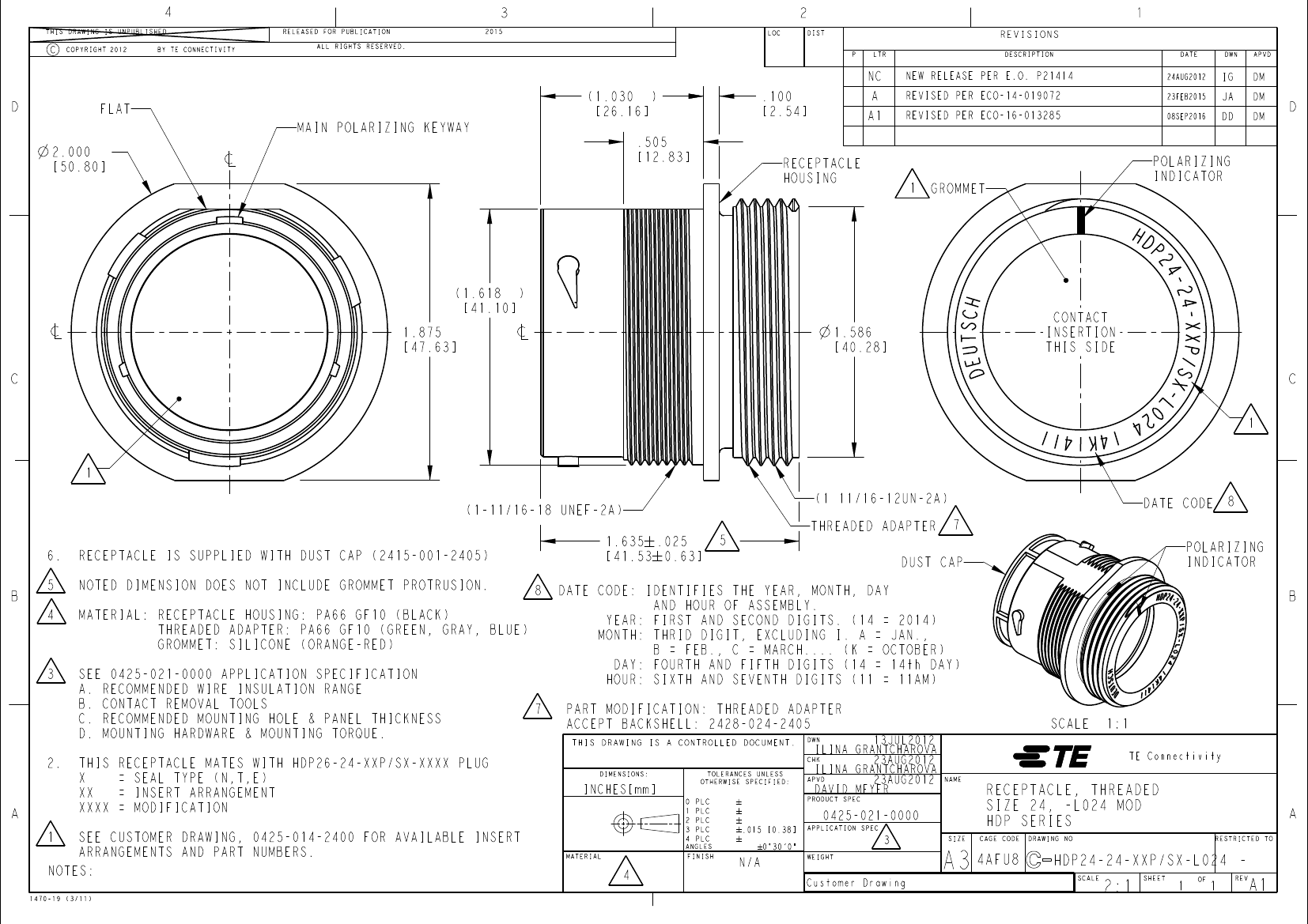

RECEPTACLE, THREADED
SIZE 24, -L024 MOD
HDP SERIES
DRAWING NO
A
RESTRICTED TO
HDP24-24-XXP/SX-L024
SCALE
1470-19 (3/11)
2:1
SHEET
1
OF
1
REV
-
A1
