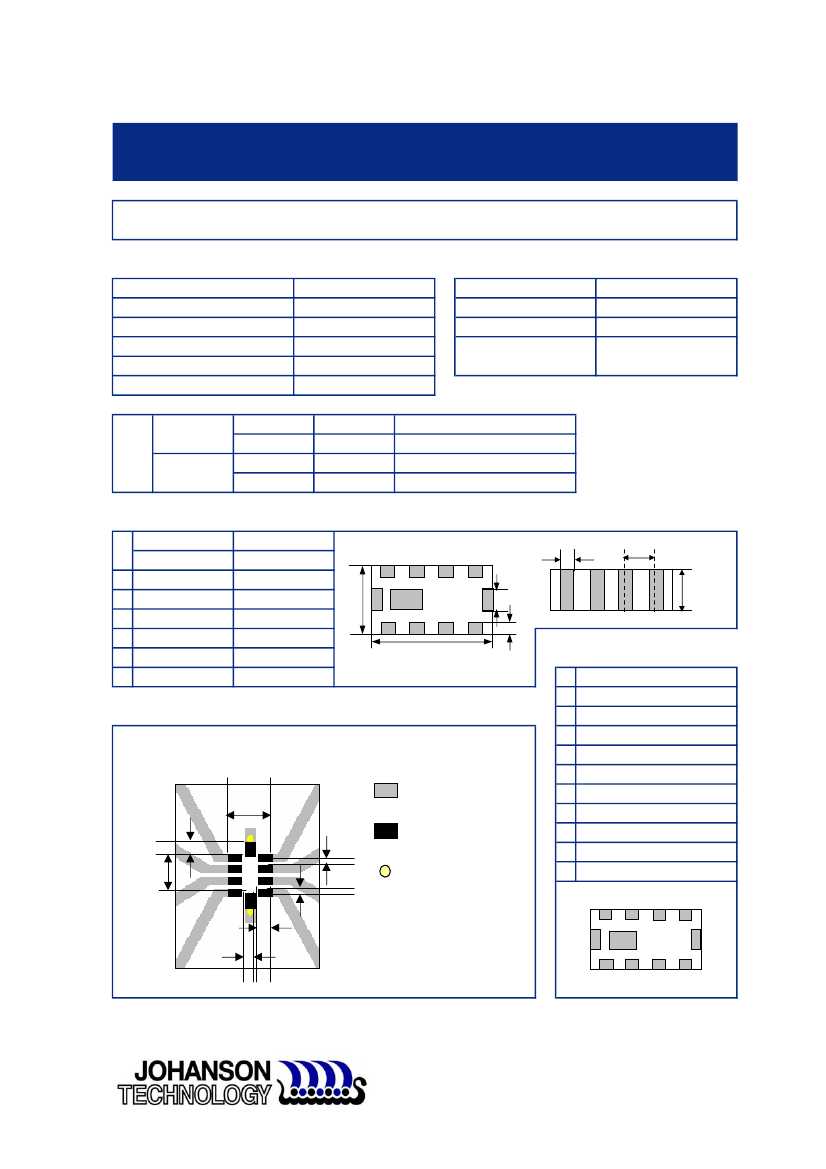

"High Frequency Ceramic Solutions"
400 MHz EMI Filter Array
Detail Specification: 11/05/08
P/N 0400FA15A0400
Page 1 of 2
General Specifications
Part Number
Cut Off Frequency (Mhz)
Capacitance (+30/-30%) (pF)
20 dB min. Attenuation (Mhz)
Rated Current (mA)
Rated Voltage (VDC)
Bulk
T&R
100% Tin
Tin / Lead
0400FA15A0400
400
18
800 - 1000
50
25
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Power Capacity
Reel Quanity
Operating Temperature
Storage Temperature
0.5 W max.
4,000
-40 to +85°C
+5 to +35°C, Humidity:
45-75%RH, 12 mos. Max*
* 12 months in vacuum sealed bag and 1 week after opened.
P/N
Suffix Termination
Style
Packaging
Style
Eg. 0400FA15A0400S
Eg. 0400FA15A0400E
Eg. 0400FA15A0400(E or S)
Eg. 0400FA15A0400(E or S)/Pb
Mechanical Dimensions
In
L
W
T
a
b
c
p
0.079 ± 0.008
0.049 ± 0.008
0.028 ± 0.006
0.010 ± 0.004
0.012 ± 0.006
0.008 +.004/-.006
0.020 ± 0.004
mm
2.00 ± 0.20
1.25 ± 0.20
0.70 ± 0.15
0.25 ± 0.10
0.30 ± 0.15
0.20 +0.1/-0.15
0.50 ± 0.10
W
a
p
b
c
L
No.
T
Terminal Configuration
Function
IN1
IN2
IN3
IN4
GND
OUT4
OUT3
OUT2
OUT1
GND
1
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
*
0.6
*
1.5
*
*
0.3
*
0.6
*
*
0.20
Through-hole (
φ
0.25)
2.0
*
Solder Resist
Land
2
3
4
5
6
7
8
9
10
1
10
9
2
3
4
5
0.35
8
7
6
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2008 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
400 MHz EMI Filter Array
Detail Specification: 11/05/08
P/N 0400FA15A0400
Page 2 of 2

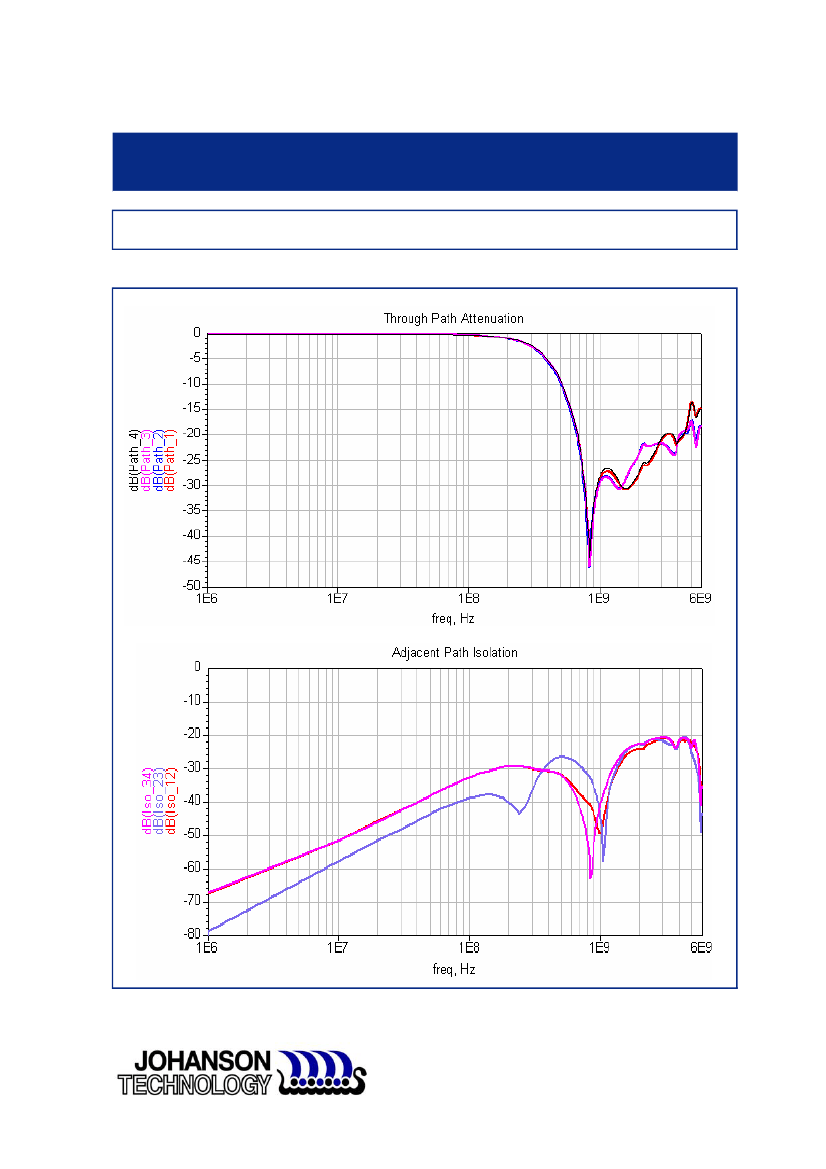

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2008 Johanson Technology, Inc. All Rights Reserved
