26-01-1089 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26-01-1089

26-01-1089: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

26-01-1089 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-01-1089	-	-	View	Buy Now

26-01-1089 Overview

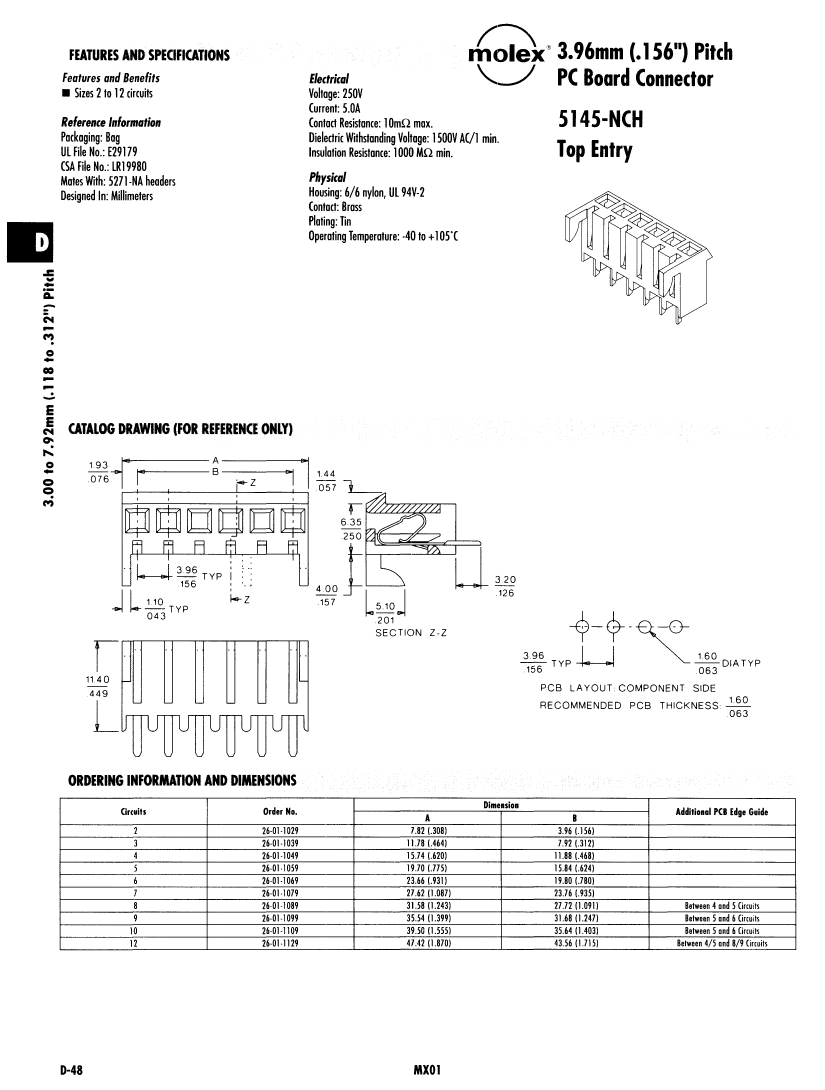

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle

26-01-1089 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TOP ENTRY
body width	0.464 inch
subject depth	0.449 inch
body length	1.243 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.417 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5145
Plug contact pitch	0.156 inch
Plug information	09-67-4081
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	PLASTIC
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-2
Evacuation force-minimum value	.0834 N
Base Number Matches	1

Preview

Download Datasheet

View All

26-01-1089 Related Products

	26-01-1089	26-01-1029	26-01-1039	26-01-1049	26-01-1059	26-01-1069	26-01-1079	26-01-1129	26-01-1099	26-01-1109
Description	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle,	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	unknow	compli	compli	compli	unknow	unknow	unknow	unknown	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY
body width	0.464 inch	0.464 inch	0.464 inch	0.464 inch	0.464 inch	0.464 inch	0.464 inch	0.464 inch	0.464 inch	0.464 inch
subject depth	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch
body length	1.243 inch	0.308 inch	0.464 inch	0.62 inch	0.776 inch	0.931 inch	1.087 inch	1.87 inch	1.399 inch	1.555 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5145	5145	5145	5145	5145	5145	5145	5145	5145	5145
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Plug information	09-67-4081	09-67-4021	09-67-4031	09-67-4041	09-67-4051	09-67-4061	09-67-4071	09-67-4121	09-67-4091	09-67-4101
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	2	3	4	5	6	7	12	9	10
UL Flammability Code	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2
Evacuation force-minimum value	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N
Base Number Matches	1	1	1	1	1	1	1	1	1	-
