2-6609074-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 2-6609074-5

2-6609074-5: Description30DCB6=F7919; CategoryAnalog mixed-signal IC filter; File Size161KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-6609074-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-6609074-5	-	-	View	Buy Now

2-6609074-5 Overview

30DCB6=F7919

2-6609074-5 Parametric

Parameter Name	Attribute value
Brand Name	Corcom
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compli
ECCN code	EAR99
filter type	DATA LINE FILTER
Base Number Matches	1

Preview

Download Datasheet

View All

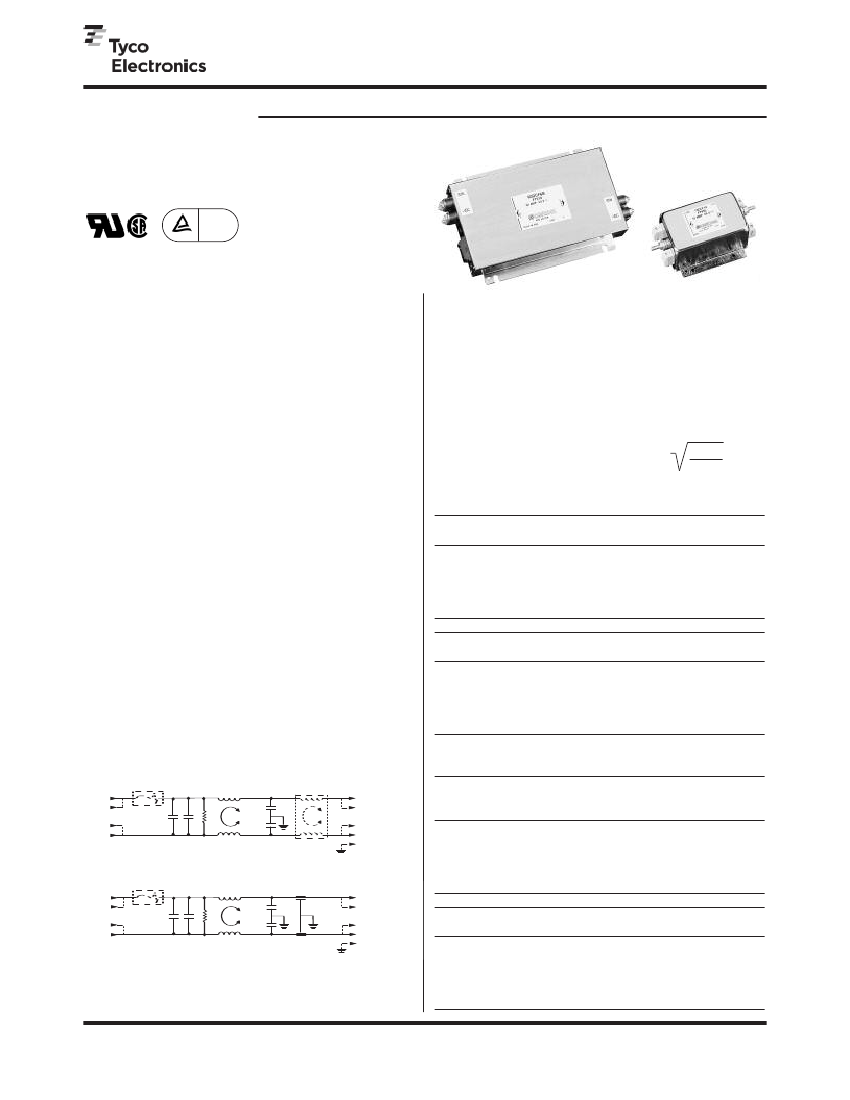

CORCOM Product Guide

RFI Power Line Filters for DC Applications

DC Series

60 950

UL Recognized

CSA Certified

TUV Approved

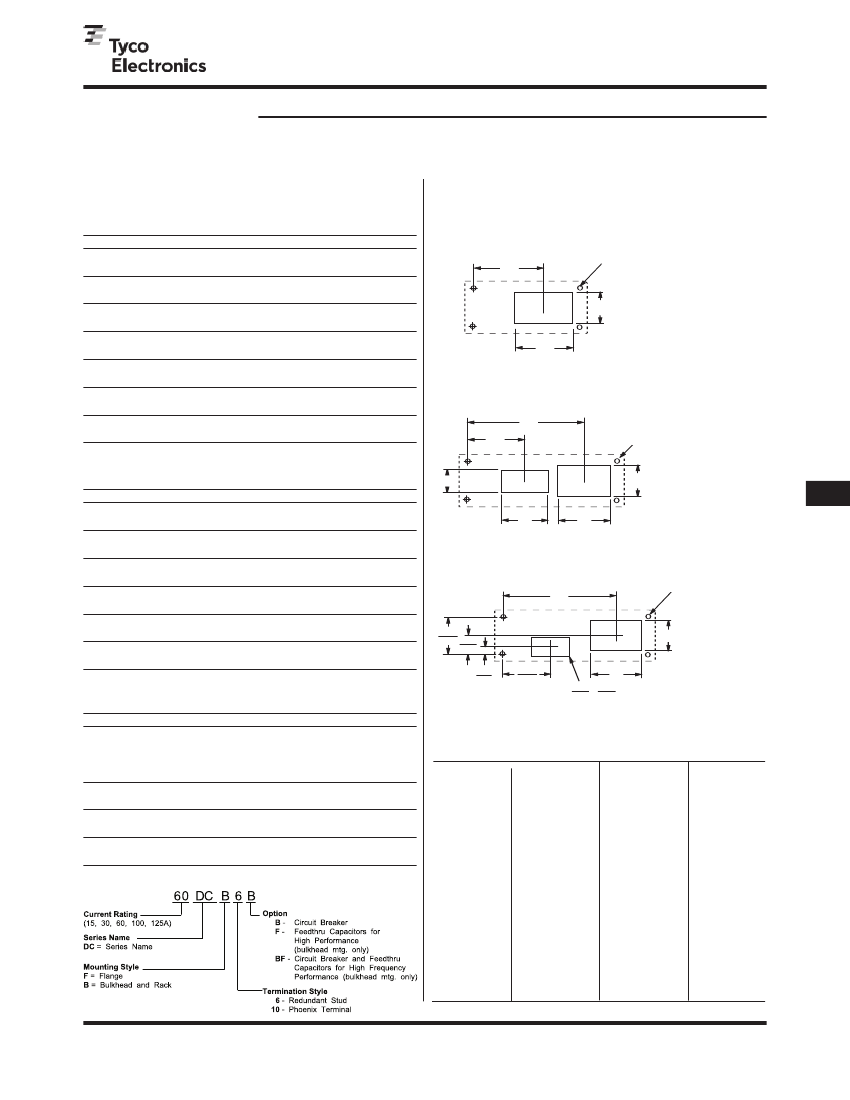

Specifications

Hipot rating (one minute):

line-to-ground

line-to-line

Operating Voltage (max):

Operating Ambient Temperature Range:

(@ rated current Ir)

2250 VDC

1450 VDC

80 VDC

-10

C to +55

DC Series

The DC series filters were designed as general purpose line filters

for DC applications. They are available with or without circuit

breakers for extra protection. They are available with feed-through

capacitors for added high frequency performance. The DC series

is designed to comply with UL 1283, CSA 22.2 No. 8 and

EN60950.

The DC series was developed in response to the increasing

demand for DC filtering in the telecom-datacom market. These

filters are generally used in central office equipment like switches,

routers, and hubs to clean up the 48 VDC power, but are not

exclusive to that equipment. They can also be used at the primary

input of the DC power supply. The DC Series is available in both a

flange mount (DCF) and bulkhead mount (DCB) configuration.

Circuit Breaker Features (B Suffix)

• always hold 100% of rated current independent of ambient

temperature (minimize nuisance tripping)

• Always trip at 125% of rated current independent of ambient

temperature

• Can be combined with feed through capacitor in bulk head

mount (DCB prefix) for high performance applications (BF

Suffix)

Feed Through Capacitor for High Performance (F Suffix)

• High performance results out to 3Ghz

• Available only in bulk head (DCB prefix ) configuration only

• Can be combined with circuit breaker feature (BF Suffix)

In an ambient, Ta, higher than +55

C, the maximum

85 - Ta

operating current, Io, is as follows:

Io = Ir

Minimum insertion loss in dB:

Standard Performance

Line-to-ground in 50 ohm circuit

Current

Frequency-MHz

Rating .01 .05 .1 .15 .5

15A

12 20 41 45 61

30A

15 23 47 59 64

60A

9 17 38 40 59

100A

10 18 38 39 53

125A

12 18 30 32 44

Line-to-line in 50 ohm circuit

Current

Frequency-MHz

Rating .01 .05 .1 .15 .5

15A

7 22 27 30 30 36 56

7 22 28 31 32 59 56

30A

60A

15 30 36 40 40 35 60

100A

14 29 35 39 33 30 53

14 24 35 39 40 28 53

125A

Electrical Schematics

Standard Performance Version

Note 2

LINE

Note 1

Note 3

LOAD

Note 4

High Frequency Performance Version

Note 2

LINE

Note 3

Note 1

LOAD

Note 4

150

Resistor location for reference only.

Note 1:

Depicts redundant style 6 terminals.

Note 2:

Depicts optional circuit breaker.

Note 3:

For 100 & 125A versions delete second coil.

Note 4:

Depicts style 10 terminal versions which have separate ground stud.

High Frequency Performance ("F" & "BF" Styles)

Line-to-ground in 50 ohm circuit

50 300

Current

Frequency-MHz

to to

Rating .01 .05 .1 .15 .5 1 3 5 10 20 300 3000

1 12 20 41 45 55 50 45 25 50 30

15A

4 15 20 46 58 60 60 48 35 50 30

30A

60A

9 16 38 42 52 60 48 26 40 30

9 16 38 42 52 60 42 26 40 30

100A

125A

9 16 28 34 46 54 34 34 40 30

Line-to-line in 50 ohm circuit

Current

Frequency-MHz

10 20

Rating .01 .05 .1 .15 .5

15A

7 22 27 30 30 50 60 60 60 36

7 22 27 30 33 56 60 60 60 40

30A

15 30 36 40 37 26 46 54 48 30

60A

100A

14 29 35 39 33 30 56 53 41 30

14 29 35 39 40 28 53 60 42 33

125A

USA Cust. Svc.: 1-800-468-2023

CORCOM Prods: 1-847-680-7400

Germany:

49-89-6089-0

www.corcom.com

www.tycoelectronics.com

Catalog 1654001

Revised 05-07

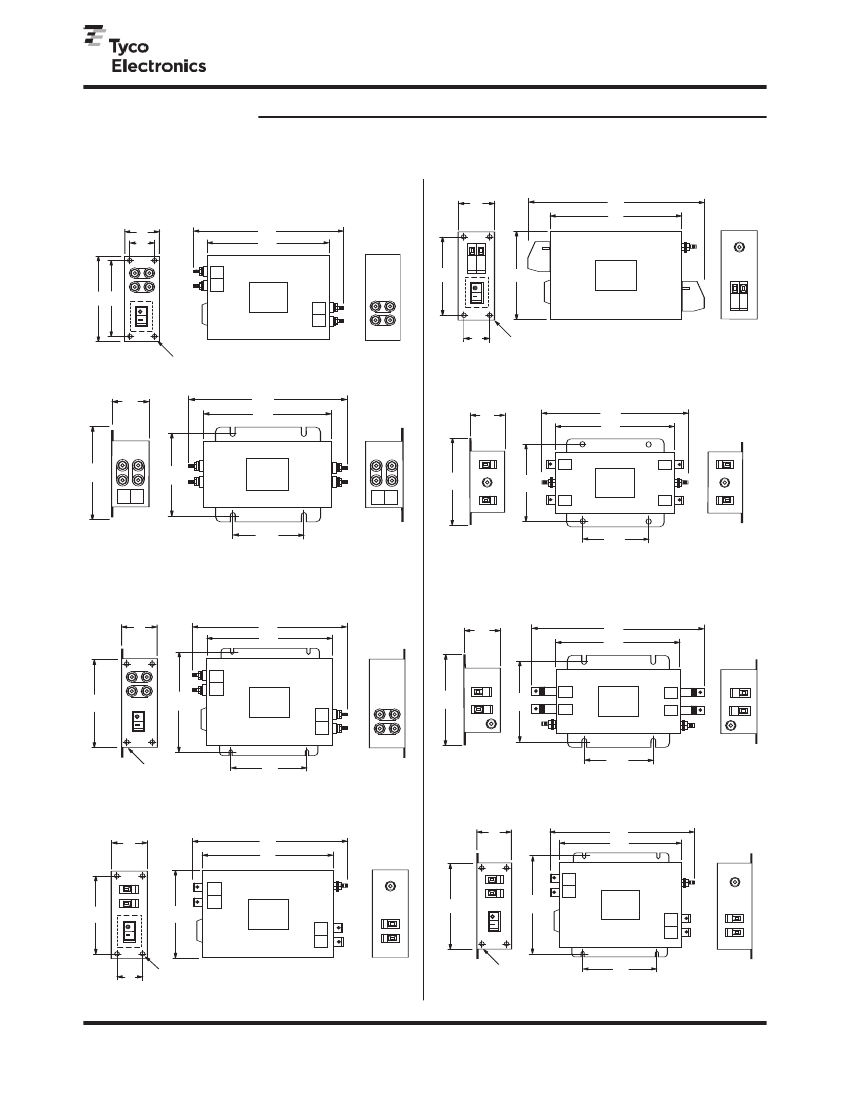

Dimensions are in inches and

millimeters unless otherwise

specified. Values in italics

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.
