MA45400 Series
Si Abrupt Tuning Varactor Diode
Features
•
Surface Mount Plastic Packages :SOT-23, SC-79
•
SPC Process for Superior C vs V and Q vs V
Repeatability
•
Lead-Free (RoHs Compliant) equivalents avail-
able with 260°C reflow compatibility
M/A-COM Products
Rev. V5
SOT-23
SC-79

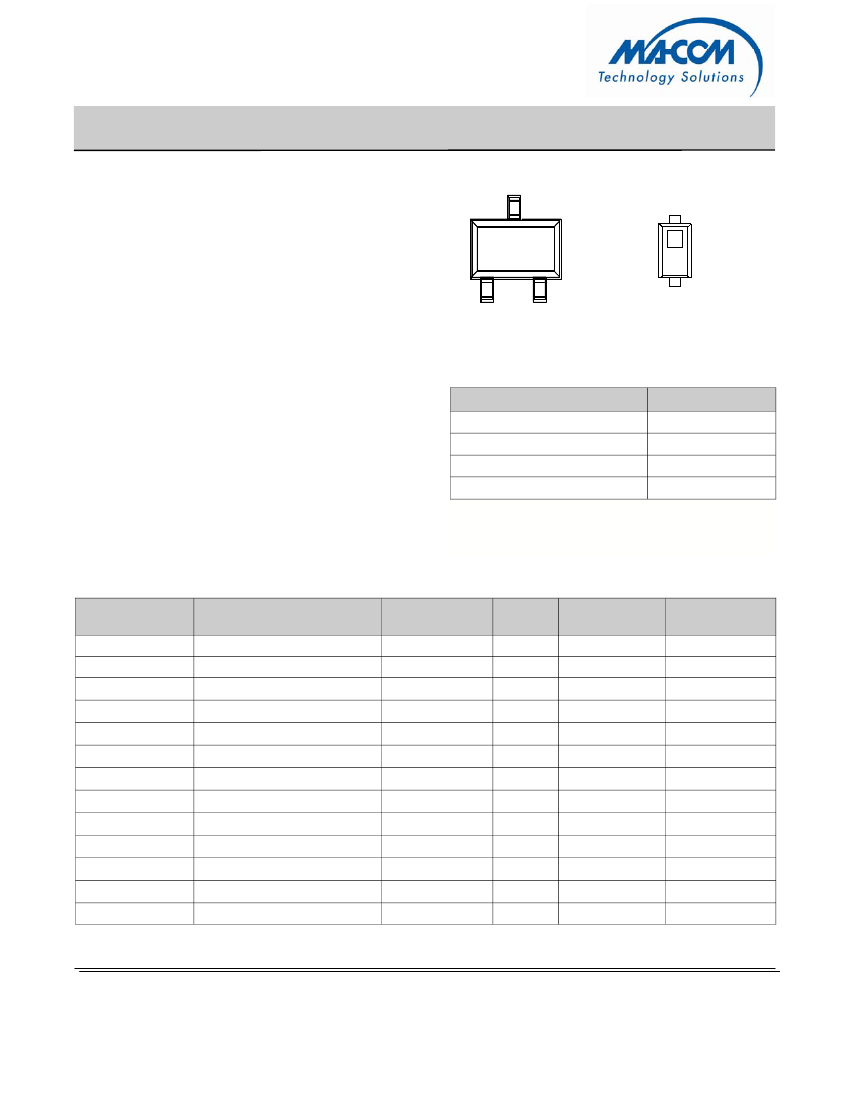

Description
M/A-COM’s MA45400 series is a highly repeatable,
UHCVD/ion-implanted, abrupt silicon tuning varactor
in a cost effective surface mount package. This se-
ries of varactors is designed for general purpose
tuning in the HF to UHF frequency bands. It is effi-
cient for wide tuning across a 0-30V range. These
diodes are offered with standard Sn/Pb plating , as
well as 100% matte Sn plating on our RoHs compli-
ant equivalent devices.
Absolute Maximum Ratings
1,2
@ T
A
=+25 °C (Unless Otherwise Noted)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Absolute Maximum
30 V
50 mA
-55 °C to +125 °C
-55 °C to +125 °C
Application
M/A-COM’s MA45400 series tuning varactor is use-
ful for tuning applications in the HF through UHF
ranges. Applications include VCO’s and voltage
tuned filters in radios, cable TV tuners and test in-
struments where low cost and excellent lot to lot re-
peatability are critical.
Part Number
RoHS Compliant Part Number
MAVR-045436-12790T
MA45436-287T
MA45438-287T
MA45439-287T
MA45440-287T
MA45441-287T
MA45445-287T
MA45446-287T
MA45436CK-287T
MA45438CK-287T
MA45439CK-287T
MA45440CK-287T
MA45441CK-287T
MAVR-045436-0287AT
MAVR-045438-0287AT
MAVR-045439-0287AT
MAVR-045440-0287AT
MAVR-045441-0287AT
MAVR-045445-0287AT
MAVR-045446-0287AT
MAVR-045436-0287FT
MAVR-045438-0287FT
MAVR-045439-0287FT
MAVR-045440-0287FT
MAVR-045441-0287FT
1. Operation of this device above any one of these parameters
may cause permanent damage.
2. Please refer to application note M538 for surface mounting
instructions
Configuration
Single
Single
Single
Single
Single
Single
Single
Single
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Package
SC-79
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
Package Cp
(pF)
0.10
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
Package Ls
(nH)
0.6
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA45400 Series
Si Abrupt Tuning Varactor Diode

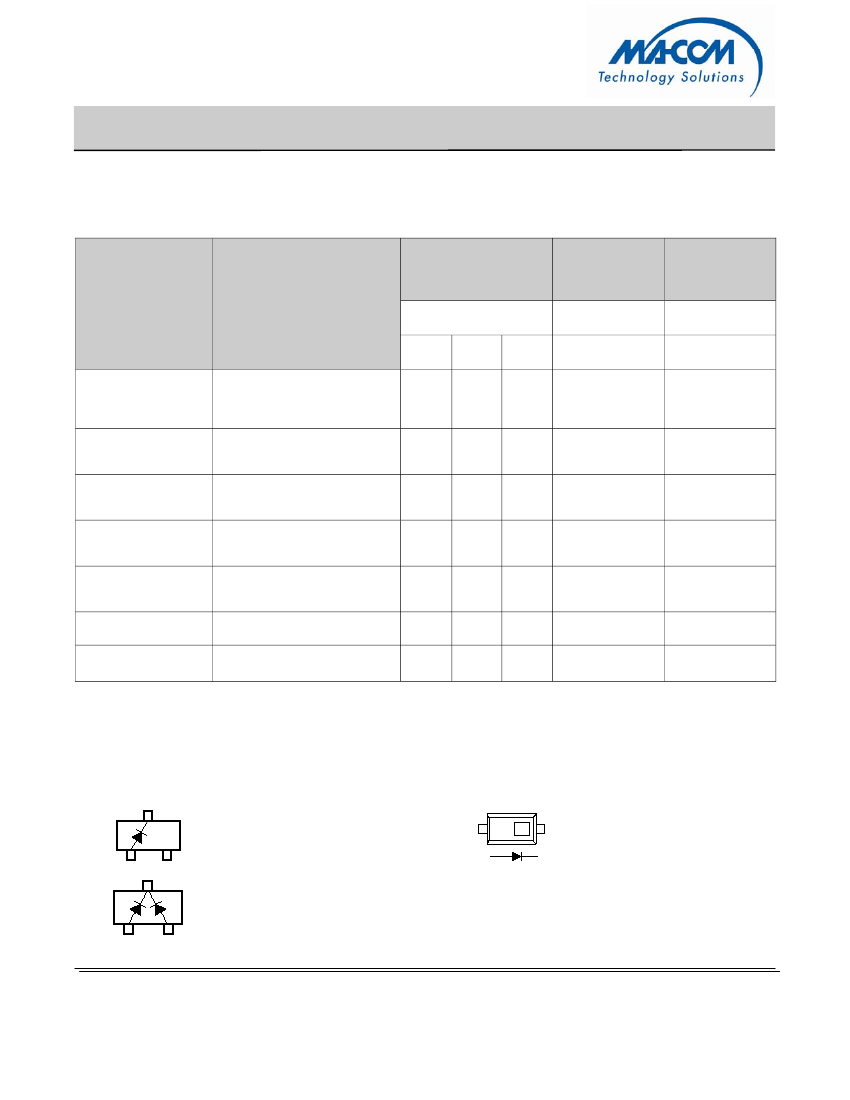

Electrical Specifications @ T
A
= +25 °C
Breakdown Voltage @ I
R
= 10
μ
A, V
b
= 30V Minimum
Reverse Leakage Current @ V
R
=24V, I
R
= 100 nA Maximum
M/A-COM Products
Rev. V5
Ct
2
(pF)
Part Number
1
Equivalent RoHS Compliant
Part Number
1
Min.
MA45436-287T
MA45436CK-287T
MAVR-045436-0287AT
MAVR-045436-0287FT
MAVR-045436-12790T
MAVR-045438-0287AT
MAVR-045438-0287FT
MAVR-045439-0287AT
MAVR-045439-0287FT
MAVR-045440-0287AT
MAVR-045440-0287FT
MAVR-045441-0287AT
MAVR-045441-0287FT
MAVR-045445-0287AT
MAVR-045446-0287AT
Capacitance
Ratio
Ct
0V/
Ct
30V
Max.
Typ.
Q Minimum
V
R
= 4.0 V
Nom.
V
R
= 4.0 V
Min.
4.23
4.7
5.17
4.5
1800
MA45438-287T
MA45438CK-287T
MA45439-287T
MA45439CK-287T
MA45440-287T
MA45440CK-287T
MA45441-287T
MA45441CK-287T
MA45445-287T
MA45446-287T
1.
2.
6.12
6.8
7.48
4.5
1600
7.38
8.2
9.02
4.5
1500
9
10
11
4.5
1300
10.8
12
13.2
4.6
1200
24.3
29.7
27
33
29.7
36.3
4.6
4.7
900
750
The suffix defines package style, configuration and packaging information. Contact representative for complete part identification.
Capacitance @ 1 MHz
SOT-23 Configuration
SC-79 Configuration
Single Configuration
Single Configuration
Common Cathode Configuration
2
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA45400 Series
Si Abrupt Tuning Varactor Diode

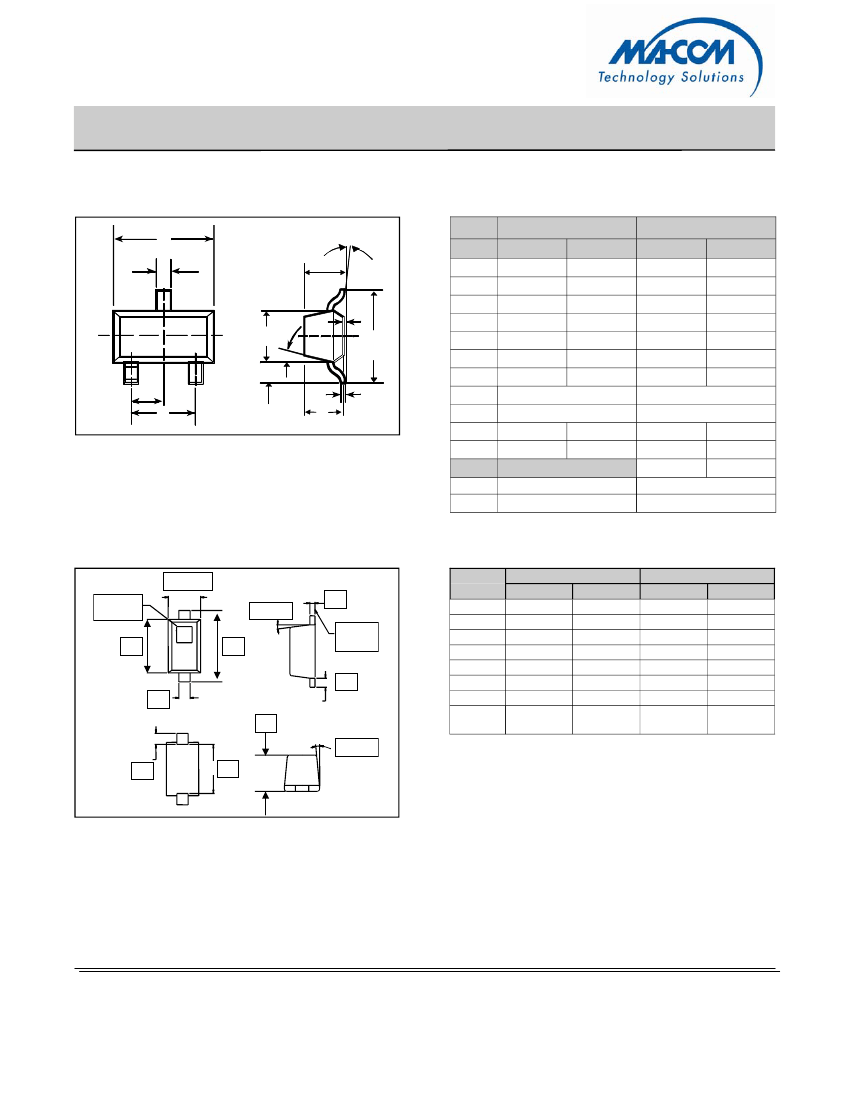

Case Styles
SOT-23 (Case Style 287)
INCHES
F
D
A
N
M/A-COM Products
Rev. V5
MILLIMETERS
MIN.
⎯
⎯
⎯
0.35
0.08
2.80
1.20
DIM.
A
B
C
M
G
B
K
MIN.
⎯
⎯
⎯
0.013
0.003
0.110
0.047
MAX.
0.048
0.008
0.040
0.020
0.006
0.119
0.056
MAX.
1.22
0.20
1.00
0.50
0.15
3.00
1.40
D
E
F
G
L
H
J
C
E
H
J
K
L
0.037 typical
0.075 typical
⎯
⎯
0.103
0.024
10° max.
2° . . .30°
⎯
⎯
0.95 typical
1.90 typical
2.60
0.60
DIM.
M
N
GRADIENT
SC-79 (Case Style 1279)
Topview
Cathode
Mark
B
10
°
Max
Seating
Plane
F
E
DIM.
A
B
C
D
E
F
G
H
10
°
Max
INCHES
MIN.
MAX.
0.020
0.003
0.006
0.010
0.059
0.043
0.011
0.037
typical
0.028
0.008
0.010
0.014
0.067
0.051
0.012
0.043
MILLIMETERS
MIN.
MAX.
0.50
0.08
0.15
0.25
0.08
1.50
0.28
0.94
0.71
0.20
0.25
0.36
0.15
1.30
0.30
1.09
C
D
A
G
H
3
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
MA45400 Series
Si Abrupt Tuning Varactor Diode

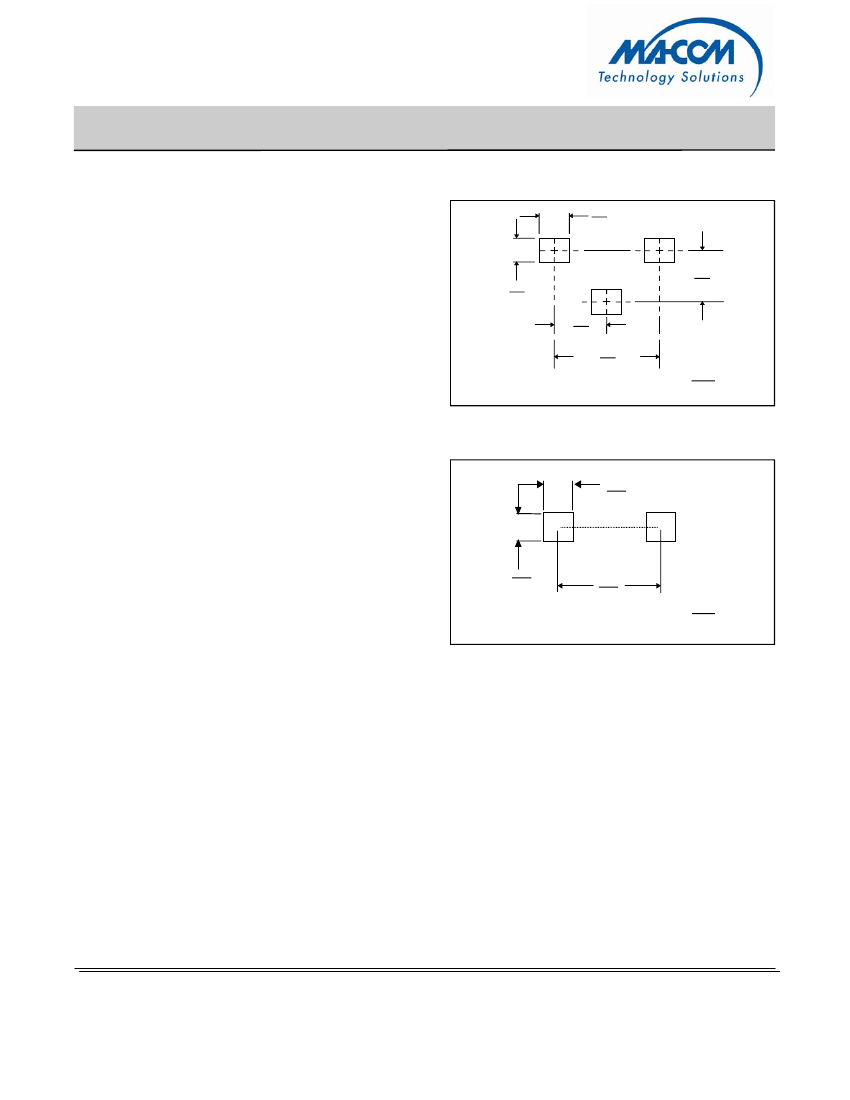

Mounting Information
The illustration indicates the recommended mount-
ing pad configuration for the SOT-23/SC-79 pack-
ages. Solder paste containing flux should be
screened onto the pads to a thickness of 0.005-
0.007 inches. The plastic package is placed in posi-
tion, firmly adhering to the solder paste.
Permanent attachment is performed by a reflow sol-
dering procedure during which the tab temperature
does not exceed +275
°C
and the body temperature
does not exceed +250
°C,
for standard models and
+260
°C
for the RoHS compliant devices.
Please refer to Application Note M538 for surface
mounting instructions.
M/A-COM Products
Rev. V5
SOT-23
.030 min.
0.80
.035 min.
0.90
.037
0.95
0.75
1.9
.090
2.2
Dimenstions: inches
mm
SC-79 (Case Style 1279)
0.020
0.50
0.020
0.50
0.053
1.35
Dimenstions: inches
mm
4
ADVANCED:
Data Sheets contain information regarding a product MA-COM Technical Solutions is
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
considering for development. Performance is based on target specifications, simulated results, and/
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product MA-COM Technical Solutions
Visit www.macom.com for additional data sheets and product information.
has under development. Performance is based on engineering tests. Specifications are typical.
Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-
MA-COM Technical Solutions and its affiliates reserve the right to make changes to the
ment to produce in volume is not guaranteed.
product(s) or information contained herein without notice.
