SDA167HC
Series
33 Amp
Three Phase Bridge
Rectifier Assembly
600 – 1000 Volts
DESIGNER’S DATA SHEET
Part Number / Ordering Information
1/
SDA167H C E UF __ __ __
│ │ │ │ │ └
Screening
2/
│ │ │ │ │
__
= Not Screened
│ │ │ │ │
TX = TX Level
│ │ │ │ │
TXV = TXV Level
│ │ │ │ │
│ │ │ │ └
Terminal
3/
__
= Blade
│ │ │ │
T
= Turret
│ │ │ └
Finish
__
= Anodized Case
│ │ │
N
= Ni Plated Case
│ │ │
│ │ └
Recovery Time
UF = Ultra Fast Recovery
│ │
│ └
Voltage
E = 600V
│
F = 800V
│
G = 1000V
│
└
Polarity
C = Normal
R = Reverse
Features:
Up to 1000 V Blocking Voltage
Average Output Current: 33 Amps
Low Reverse Leakage Current
Constructed with Void-Free, Hermetically Sealed
Discretes
Aluminum Case for Maximum Thermal
Conductivity
Electrically Insulated Aluminum Case
TX & TXV Level Screening Available
Standard and Fast Recovery Versions Available
– Consult Factory
Maximum Ratings
4/
Peak Repetitive Reverse and
DC Blocking Voltage
Average Rectified Forward Current
5/, 6/
(Resistive load, 60Hz, Sine Wave, T
C
= 55°C)
Peak Surge Current
5/
(8.3 ms Pulse, Half Sine Wave, T
A
= 25°C)
Operating & Storage Temperature
Maximum Junction Temperature
Maximum Thermal Resistance
5/
Junction to Case
Notes:
1/ For ordering information, price, and availability, contact
factory.
2/ Screening flows available on request.
3/ Other termination available – contact factory.
4/ Unless otherwise specified, all maximum ratings / electrical
characteristics @25ºC.
5/ Rating applies to the total bridge.
6/ Derate linearly at 0.35A/°C for T
C
> 55°C.
Symbol
SDA167HCEUF
SDA167HCFUF
SDA167HCGUF
V
RRM
V
RWM
V
R
I
O
I
FSM
T
op
& T
stg
T
J
R
JC
SDA167
Blade (_)
Value
600
800
1000
33
250
-55 to +150
175
0.85
Units
Volts
Amps
Amps
ºC
ºC/W
Turret (T)
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0018C
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SDA167HC
Series
Symbol
SDA167HCEUF
SDA167HCFUF
SDA167HCGUF
I
F
= 3 A
I
F
= 9 A
Electrical Characteristic (per leg)
4/
Peak Reverse Voltage
(I
R
= 100µA)
Min
620
820
1020
-
-
-
-
-
100
Max
-
-
-
1.42
1.80
20
750
70
-
Units
Vdc
Vdc
A
A
nsec
MΩ
BVR
V
F1
V
F2
I
R1
I
R2
t
RR
Instantaneous Forward Voltage Drop
(300 - 500µsec pulse)
Reverse Leakage Current
(Rated V
R
, 300µs pulse minimum)
Reverse Leakage Current
(Rated V
R
, T
A
= 100ºC, 300µs pulse minimum)
Reverse Recovery Time
(I
F
= 0.5A, I
R
= 1A, I
RR
= 0.25A)
Isolation Resistance
(All terminals in common to case)
1500 V
R
ISO

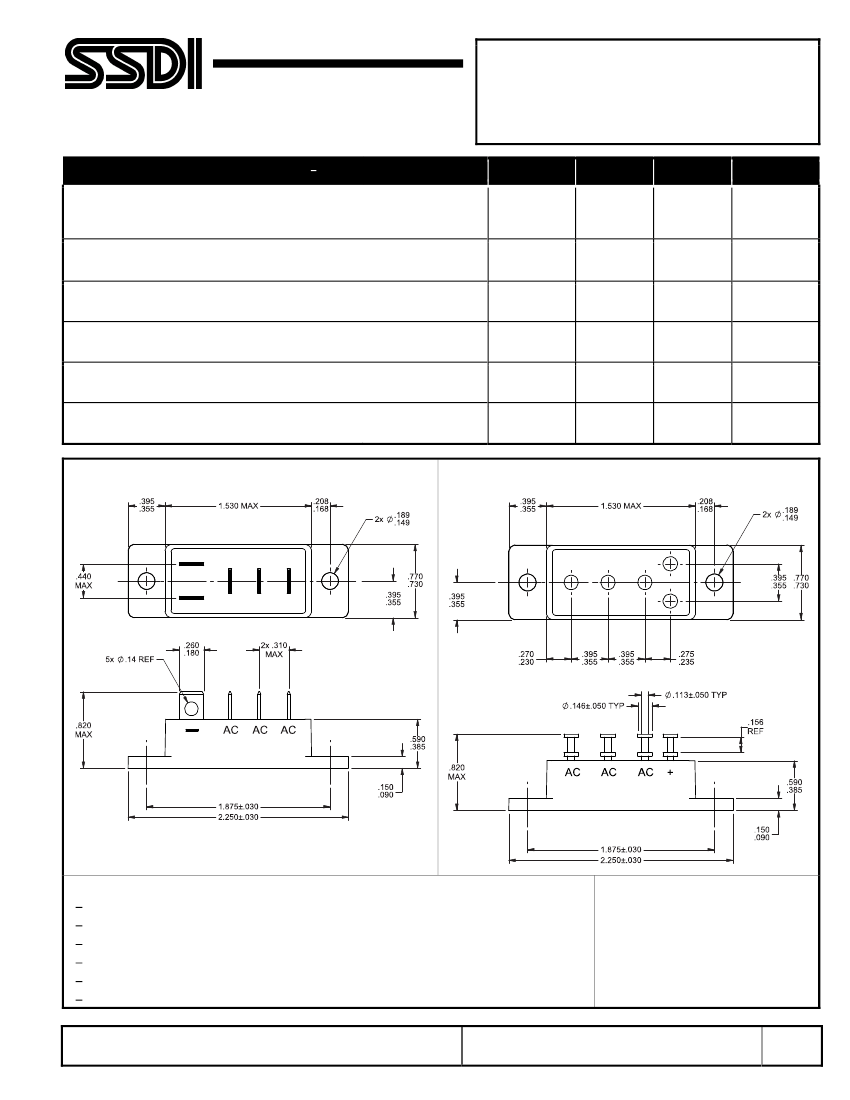

CASE OUTLINE: SDA167 - Blade (_)
SDA167 - Turret (T)
Notes:
1/ For ordering information, price, and availability, contact factory.
2/ Screening flows available on request.
3/ Other termination available – contact factory.
4/ Unless otherwise specified, all maximum ratings / electrical characteristics @25ºC.
5/ Rating applies to the total bridge.
6/ Derate linearly at 0.35A/°C for T
C
> 55°C.
Available Part Numbers:
SDA167HCEUF, SDA167HCEUFT
SDA167HCFUF, SDA167HCFUFT
SDA167HCGUF, SDA167HCGUFT
SDA167HREUF, SDA167HREUFT
SDA167HRFUF, SDA167HRFUFT
SDA167HRGUF, SDA167HRGUFT
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RA0018C
DOC
