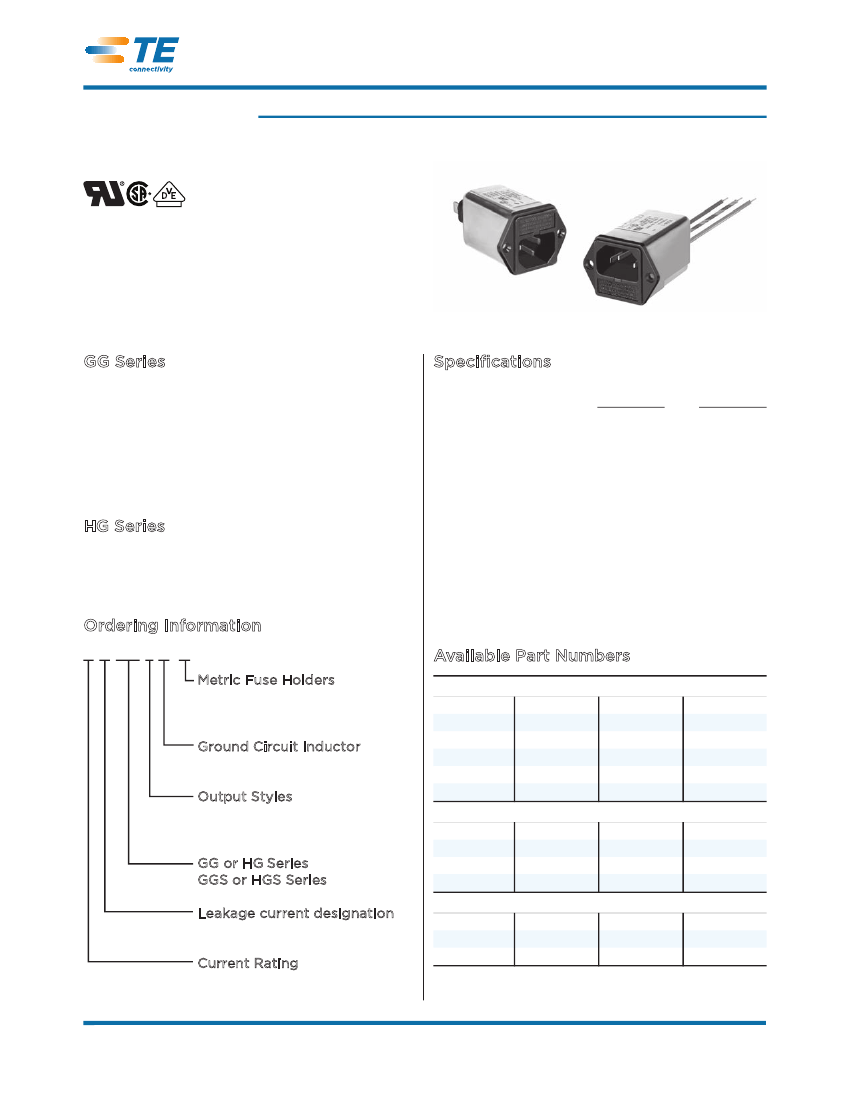

Corcom Product Guide
Smallest Power Entry Module with Metric Fuse Holders
Catalog: 1654001
Issue Date: 06.2011
GG & HG Series
UL Recognized
CSA Certified
VDE Approved
GG1
GG8
GG Series
• Power entry module with enhanced EMI filter
• Single or dual fusing
• Two element circuit provides basic attenuation
• Available with an internal ground-circuit inductor
(C versions) to isolate equipment chassis from
power line ground at radio frequencies
• Multiple termination and mounting styles
Specifications
Maximum leakage current each Line to Ground:
HG Models
GG Models
@ 120 VAC 60 Hz:
2
A
.25 mA
@250 VAC 50 Hz:
5
A
.42 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max.):
Operating Frequency:
Rated Current:
Required Fuse(s):
2250 VDC
1450 VDC
250 VAC
50/60 Hz
1 to 10A
5 x 20mm
(not included)
HG Series
• Medical version of our GG Series
• Mechanically identical to GG Series
• Available only with dual fusing
Ordering Information
3 E GG 1 C -2
Metric Fuse Holders
1 – Single
2 – Double
Ground Circuit Inductor
Omit if none
Output Styles
1 – .250 [6.3] spade terminals
8 – Wire leads
GG or HG Series
(Flange mount)
GGS or HGS Series
(Snap-in mount)
Leakage current designation
E – Low leakage
(<0.5 mA)
Current Rating
1, 3, 6 or 10A
166
Available Part Numbers
Filtered modules
1EGG1-1
3EGG1-1
6EGG1-1
10EGG1-1
1EGG1-2
3EGG1-2
6EGG1-2
10EGG1-2
1EGG8-1
3EGG8-1
6EGG8-1
10EGG8-1
1EGG8-2
3EGG8-2
6EGG8-2 10EGG8-2
1EGS1-1
3EGS1-1
6EGS1-1
10EGS1-1
1EGS1-2
3EGS1-2
6EGS1-2
10EGS1-2
Filtered modules with ground circuit inductor
1EGG1C-1 3EGG1C-1 6EGG1C-1
1EGG1C-2 3EGG1C-2 6EGG1C-2
1EGG8C-1 3EGG8C-1 6EGG8C-1
1EGG8C-2 3EGG8C-2 6EGG8C-2
Medical filter modules
1EHG1-2
3EHG1-2
6EHG1-2
10EHG1-2
1EHG8-2
3EHG8-2
6EHG8-2 10EHG8-2
1EHGS1-2 3EHGS1-2 6EHGS1-2 10EHGS1-2
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
Smallest Power Entry Module with Metric Fuse Holders
(continued)
GG & HG Series

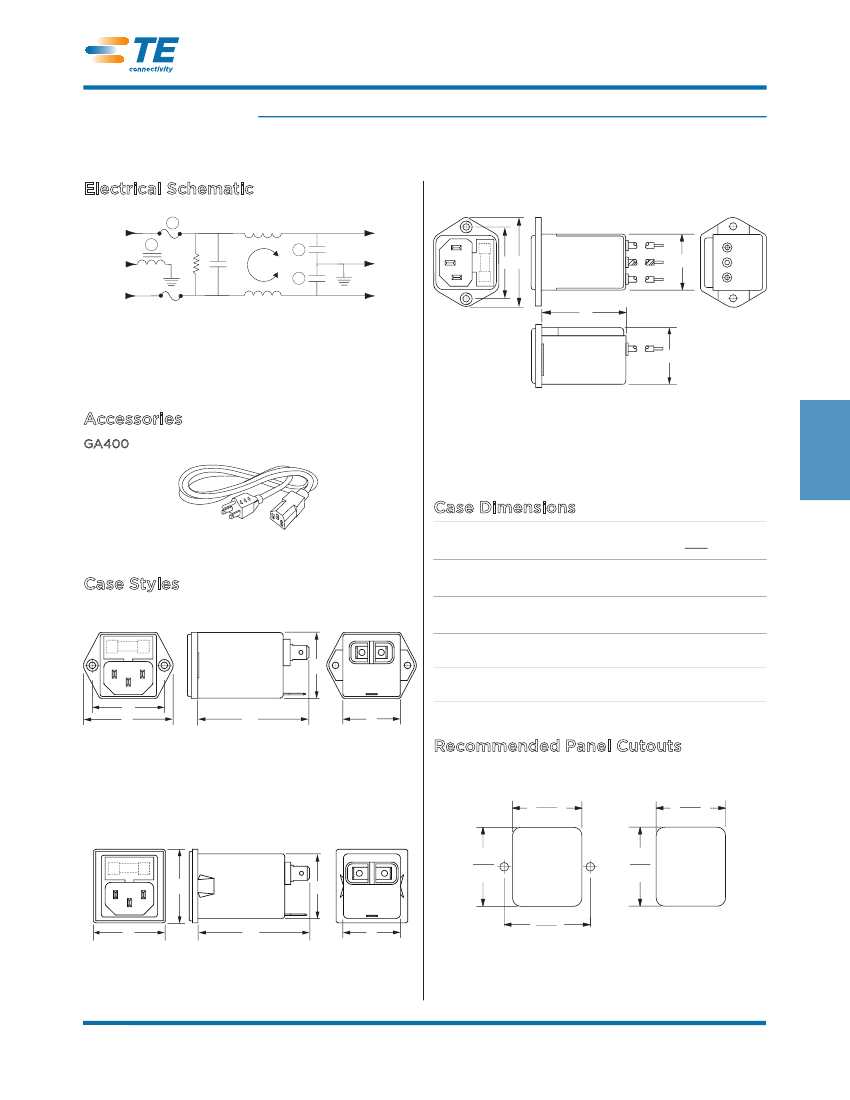

Electrical Schematic
LINE
1
2
Blue
GG8 & HG8
LOAD
3
D E
Green/Yellow
B
Brown
3
Note 1: Second fuse only in -2 version
Note 2: C versions only
present in HG versions
Note 3: not
½½
A
C
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
½
3
Power Inlet Filters & Power Entry Modules
E
Case Dimensions
Part No.
A
½
B
½
C
½
Case Styles
GG1, GG1C & HG1
GG1 & HG1
GG1C
GS1, HGS1
C
GG8, HG8
D
E
A
B
D
½
½½
½
½
½
Recommended Panel Cutouts
GG / HG
1.14
29.0
GS / HGS
1.24
31.5
GS1 & HGS1
1.30
33.0
D
C
1.29
32.8
E
A
B
1.417
36.0
Front or Back Mount
Front Mount Only
½
½
½
½
167
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
Smallest Power Entry Module with Metric Fuse Holders
(continued)
GG & HG Series

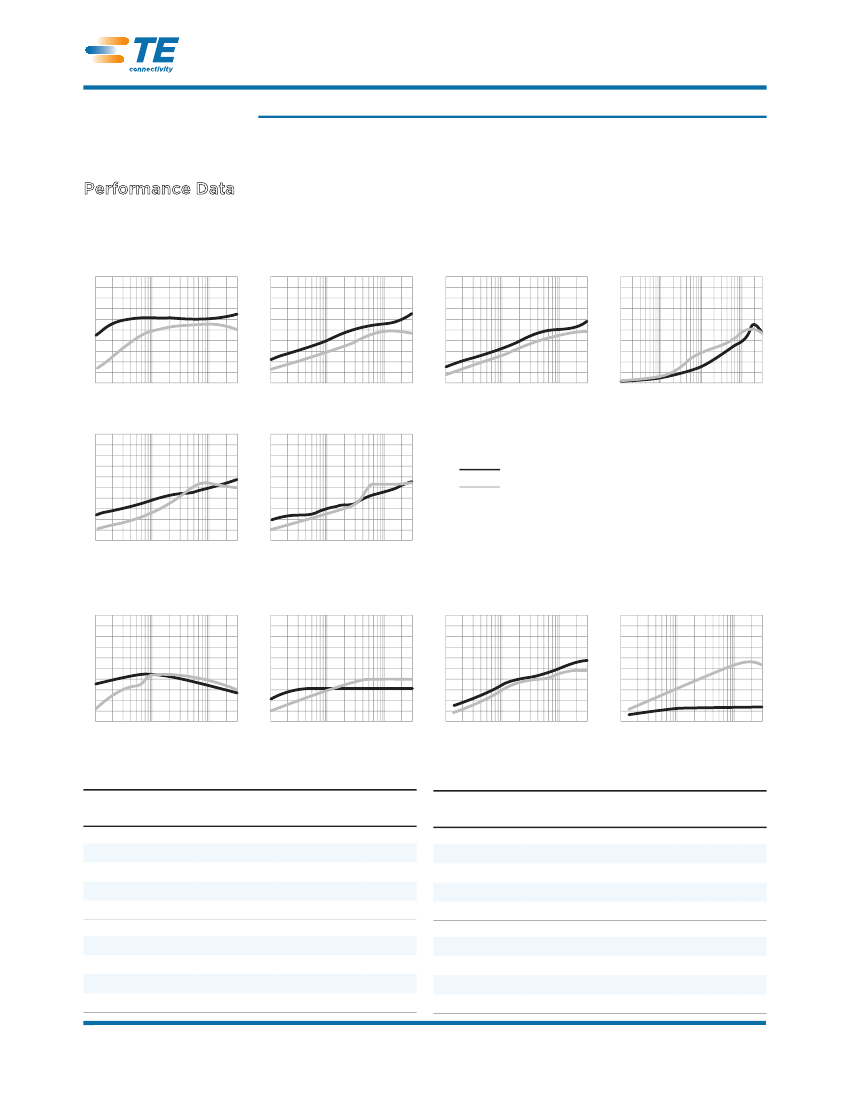

Performance Data
Typical Insertion Loss
GG & GS Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Measured in closed 50 Ohm system
3A
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
3A GG1C
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6A GG1C
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
HG Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Minimum Insertion Loss
Measured in closed 50 Ohm system
Differential Mode / Symmetrical (Line to Line)
Common Mode / Asymmetrical (Line to Ground)
168
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
