Part Number

Search

P8253-2B

Description
Programmable Timer, 3 Timer(s), NMOS, PDIP24, PLASTIC, DIP-24
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size362KB,11 Pages
ManufacturerAMD
Websitehttp://www.amd.com
Download Datasheet Parametric View All

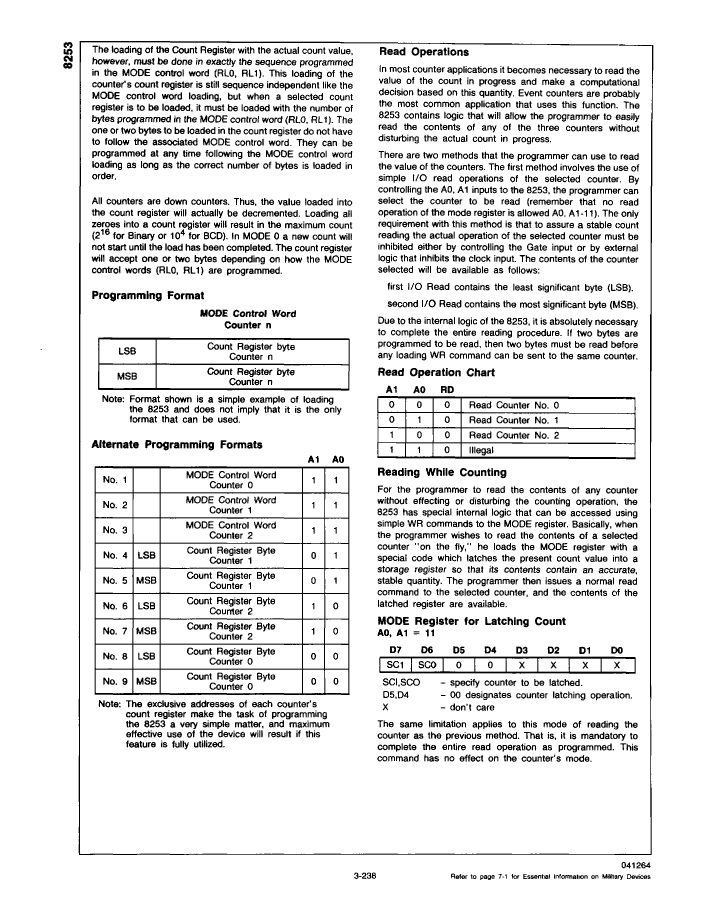

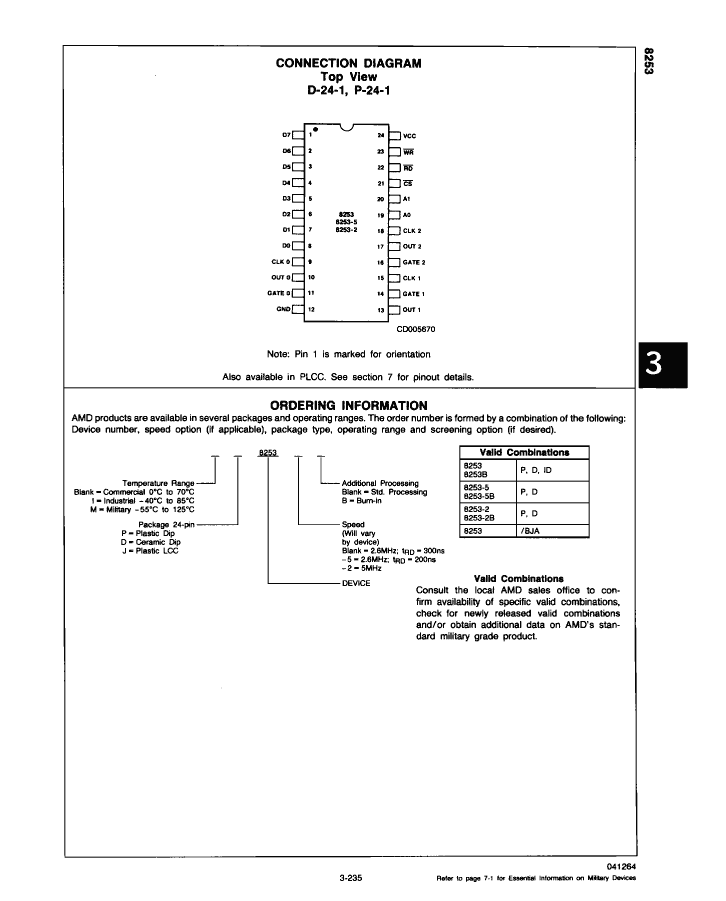

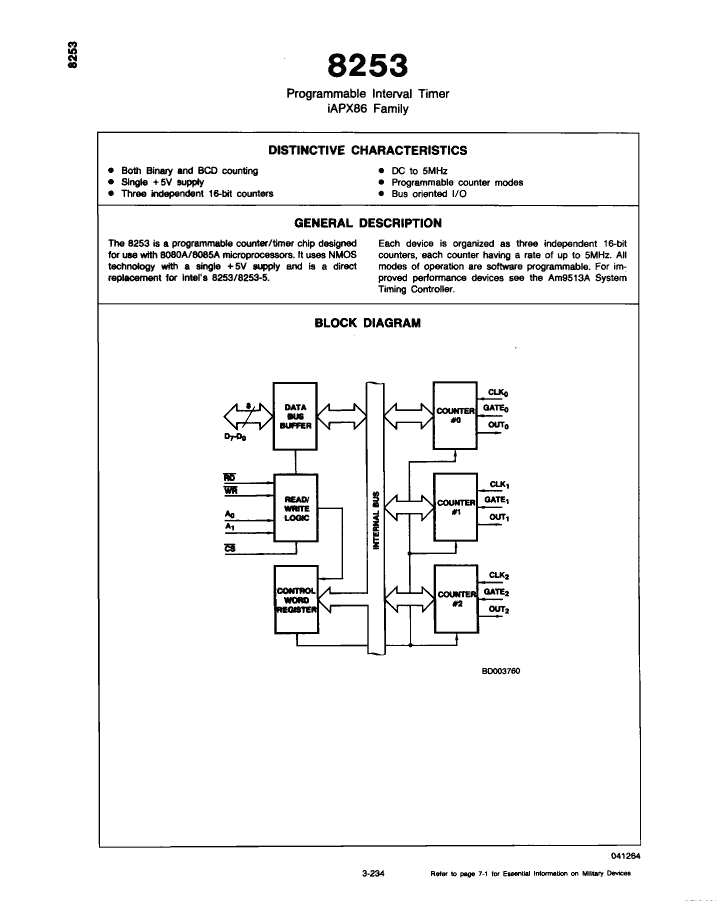

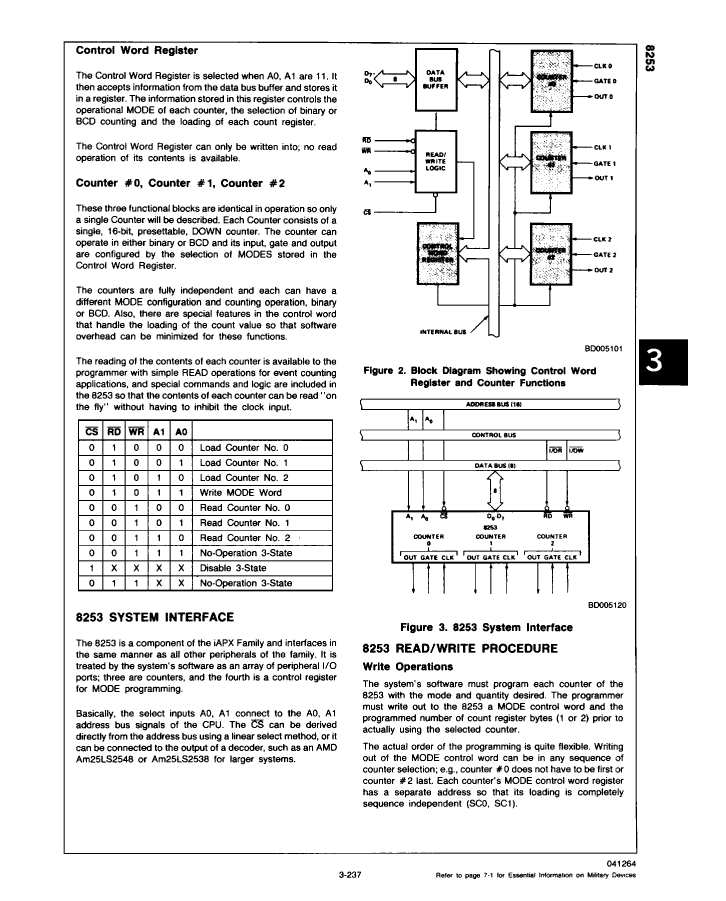

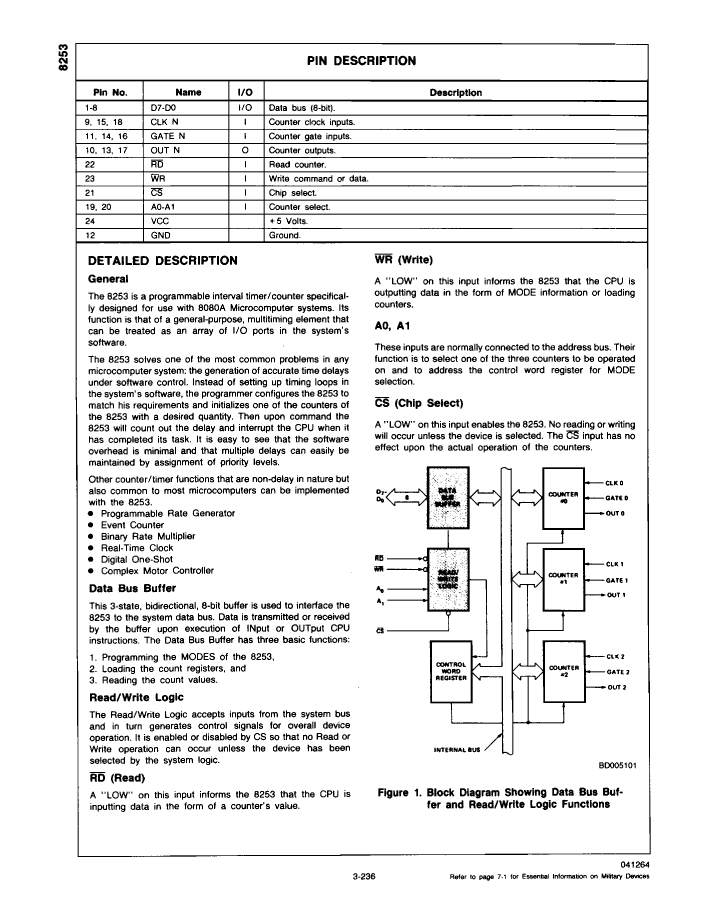

P8253-2B Overview

Programmable Timer, 3 Timer(s), NMOS, PDIP24, PLASTIC, DIP-24

P8253-2B Parametric

Parameter NameAttribute value
MakerAMD
Parts packaging codeDIP
package instructionDIP,
Contacts24
Reach Compliance Codeunknown
ECCN codeEAR99
Bus compatibility8085A; 8080A
External data bus width8
Information access methodsPARALLEL, DIRECT ADDRESS
JESD-30 codeR-PDIP-T24
length31.877 mm
Number of digits16
Number of terminals24
Number of timers3
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Maximum seat height5.461 mm
Maximum slew rate140 mA
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountNO
technologyNMOS
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width15.24 mm
uPs/uCs/peripheral integrated circuit typeTIMER, PROGRAMMABLE
