CD54HCT158F/3W datasheet, PDF - EEWORLD Datasheet

CD54HCT158F/3W: DescriptionMultiplexer, 4-Func, 2 Line Input, CMOS, CDIP16; Categorylogic logic; File Size114KB，2 Pages; ManufacturerRCA

Download Datasheet Parametric View All

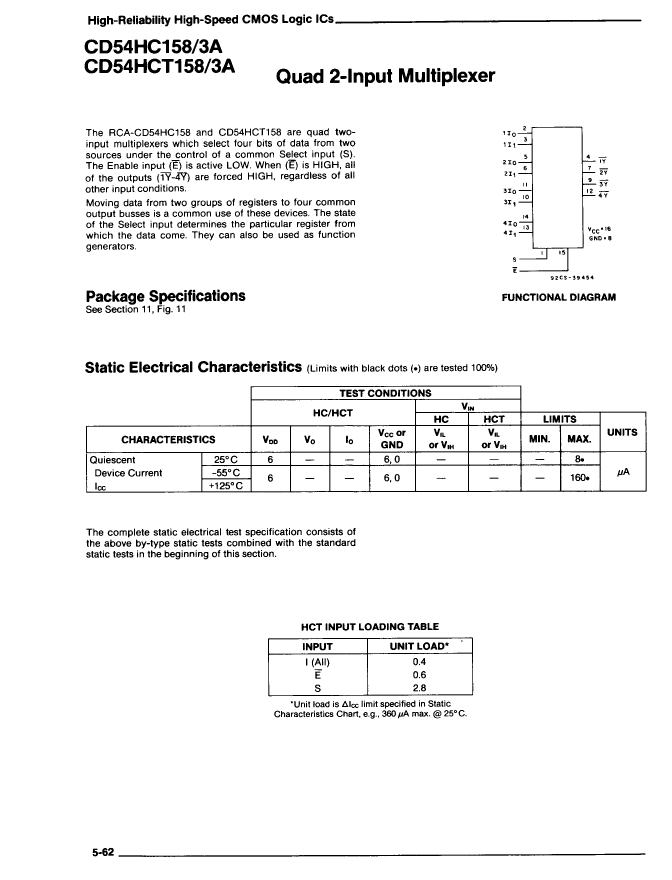

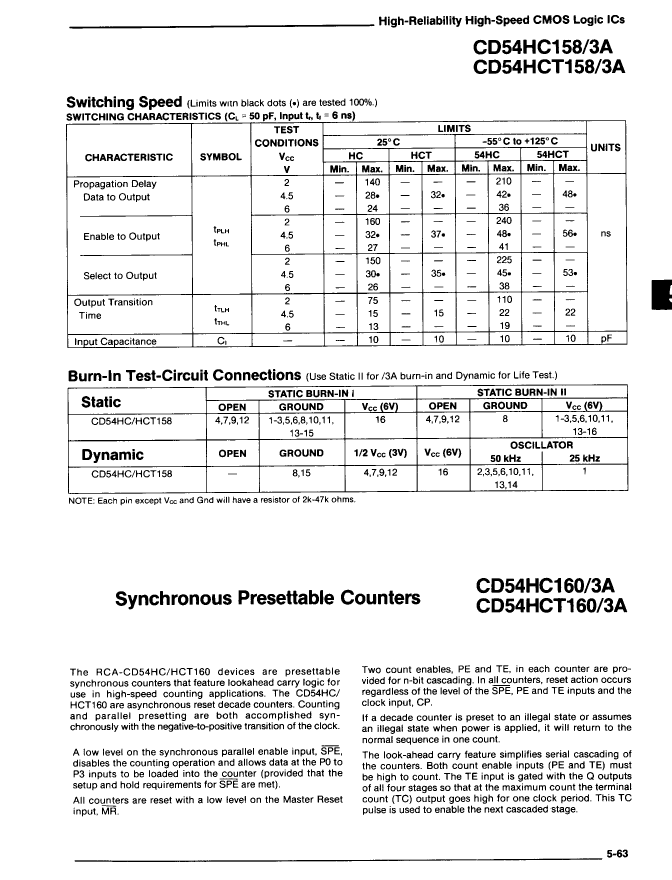

CD54HCT158F/3W Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	48 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
