SBR9329: Description10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size201KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

SBR9329 Overview

10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

SBR9329 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	7.5 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

BR9329 / SBR9329*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1500.0 MHz

9.0 dB Typical

7.5 dB Min

6.5 dB Typical

8.0 dB Max

20.0 dBm Typical

19.0 dBm Min

30.0 dBm Typical

36.0 dBm Typical

1.8/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-11.0 dB Typical

-10.0 dB Min

15.0 Volts

90.0 mA

-55.0 - 85.0 °C

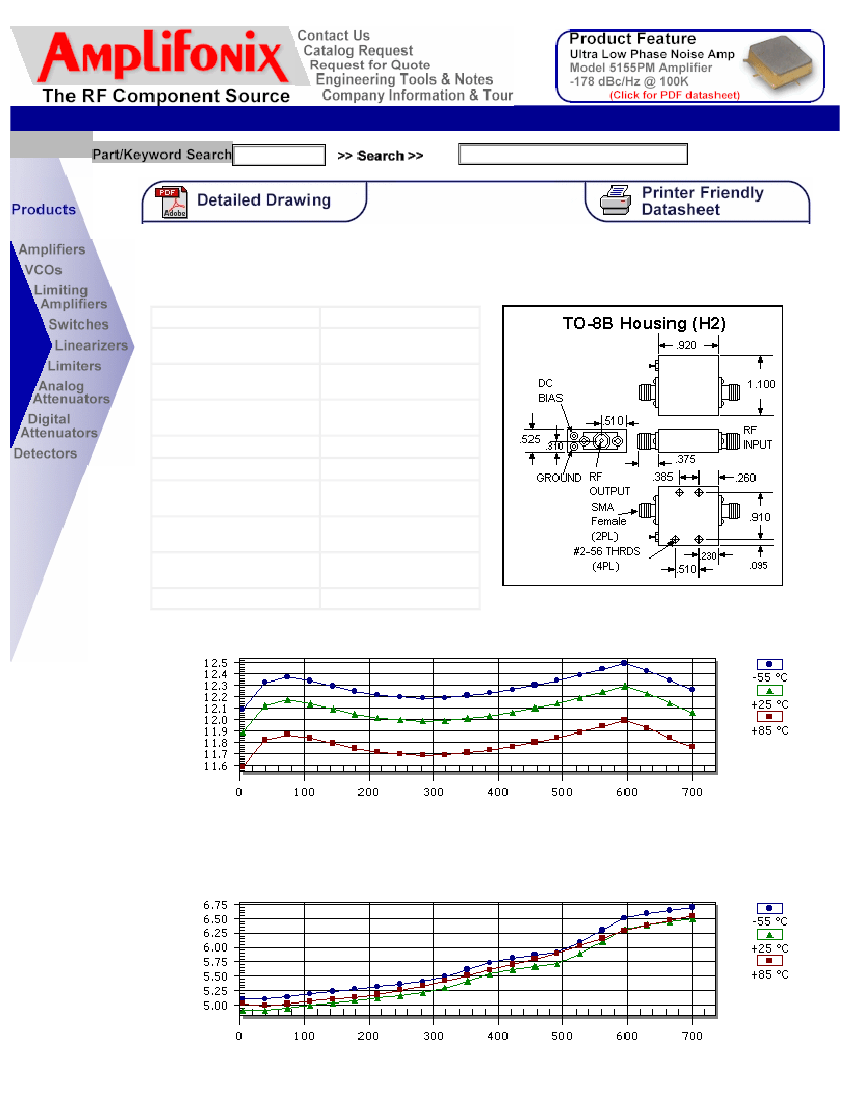

Package Drawing

Gain

Frequency (MHz)

Noise Figure
