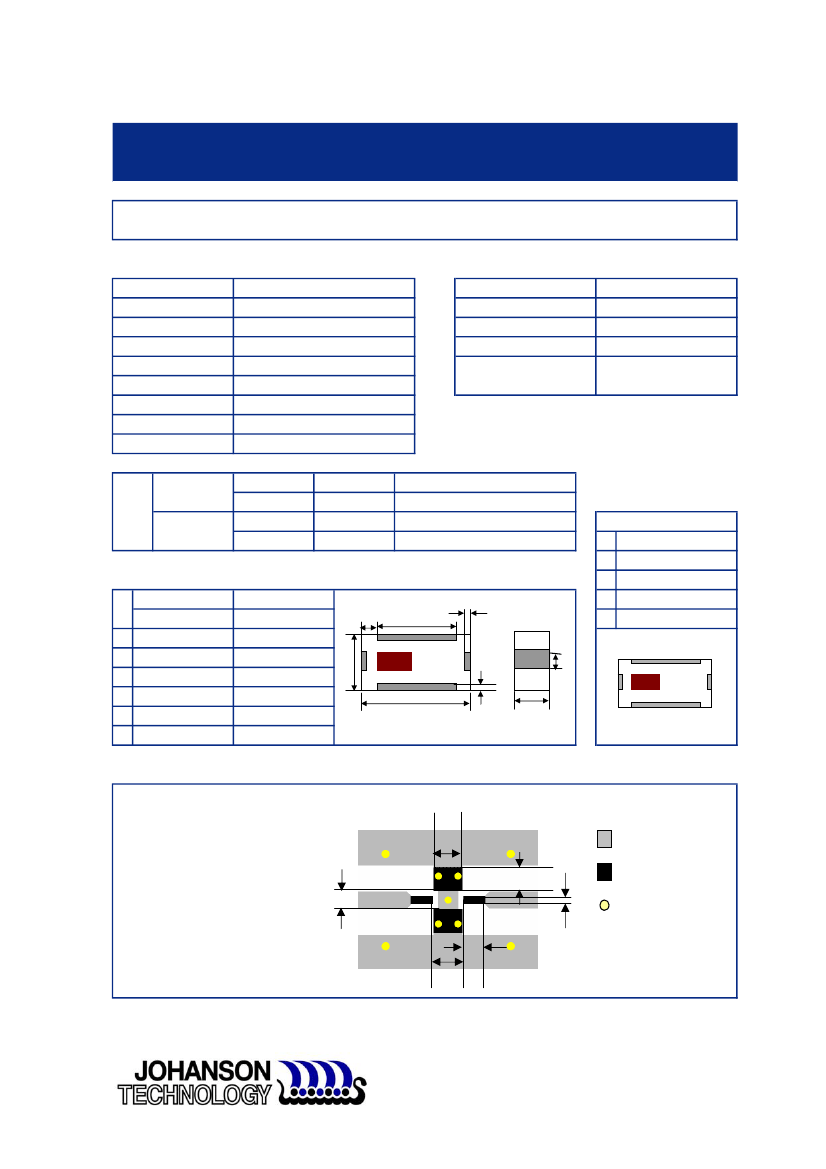

High Frequency Ceramic Solutions
2450 MHz Band Pass Filter
Detail Specification: 08/29/08
P/N 2450BP15H0100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Insertion Loss
Return Loss
2450BP15H0100
2400 - 2500
25 dB @ 1200 - 1300 MHz
10 dB @ 2000 MHz
12 dB @ 3000 MHz
30 dB @ 3600 - 3800 MHz
34 dB @ 4800 - 5000 MHz
1.5 max.@ 25°C, 1.8 max.@ -40~85°C
Impedance
Input Power
Reel Quantity
Operating Temperature
Storage Temp
50
Ω
500 mW max.
4,000
-40 to +85°C
+5 ~ +35°C, Humidity:
45~75%RH, 12 mos. Max
9.5 dB min.
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 2450BP15H0100S
Eg. 2450BP15H0100E
Eg. 2450BP15H0100(E or S)
Eg. 2450BP15H0100(E or S)/Pb
Terminal Configuration
No.
1
P/N
Suffix Termination
Style
Packaging
Style
Function
GND
OUT
GND
IN
1
Mechanical Dimensions
In
L
W
T
a
b
c
d
2
mm
2.00 ± 0.15
1.25 ± 0.10
0.95 ± 0.10
1.30 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
0.079 ± 0.006
0.049 ± 0.004
0.037 ± 0.004
0.051 ± 0.006
0.012 ± 0.006
0.010 ± 0.006
0.014 ± 0.006
d
W
c
a
b
c
L
T
3
4
4
3
2
Mounting Considerations
Mount these devices with brown mark facing up.
*
Line width should be designed to provide
50 ohm impedance, depending on PCB
material and thickness
1.30
1.00
Solder
Land
Through-hole (
φ
0.35)
0.80
*
*
0.35
1.00
Units: mm
1.40
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
High Frequency Ceramic Solutions
2450 MHz Band Pass Filter
Detail Specification: 08/29/08
P/N 2450BP15H0100
Page 2 of 2

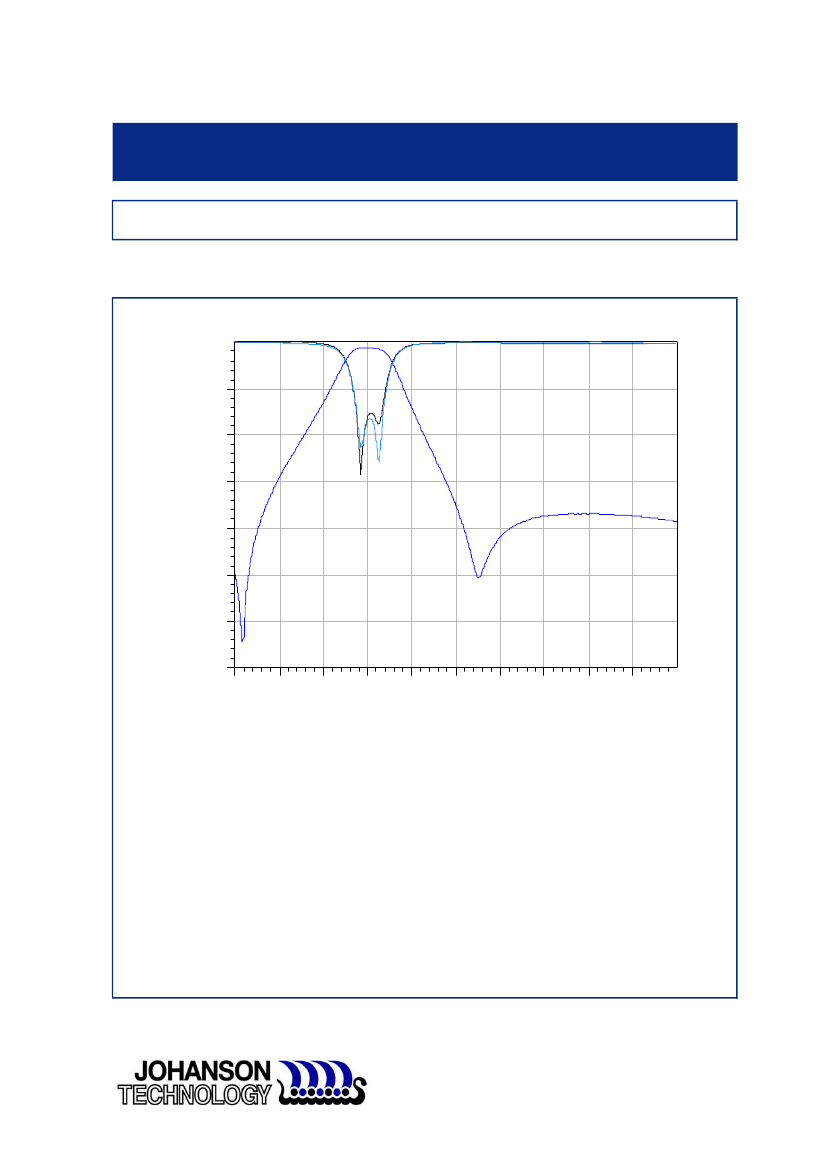

Typical Electrical Performance (T=25°C)
