ESMQ401VSN271MR25S

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size425KB，3 Pages
ManufacturerNIPPON CHEMI-CON
Websitehttp://www.chemi-con.co.jp
Environmental Compliance
Related ProductsFound18parts with similar functions to ESMQ401VSN271MR25S
Download Datasheet Parametric View All

ESMQ401VSN271MR25S Online Shopping

Suppliers Part Number Price MOQ In stock
ESMQ401VSN271MR25S - - View Buy Now

ESMQ401VSN271MR25S Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, ROHS COMPLIANT

ESMQ401VSN271MR25S Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNIPPON CHEMI-CON
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance270 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter30 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current0.9859 mA
length25 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package shapeCYLINDRICAL PACKAGE
Package formSnap-in
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)400 V
ripple current1670 mA
surface mountNO
Delta tangent0.15
Terminal surfaceTin (Sn)
Terminal shapeSNAP-IN

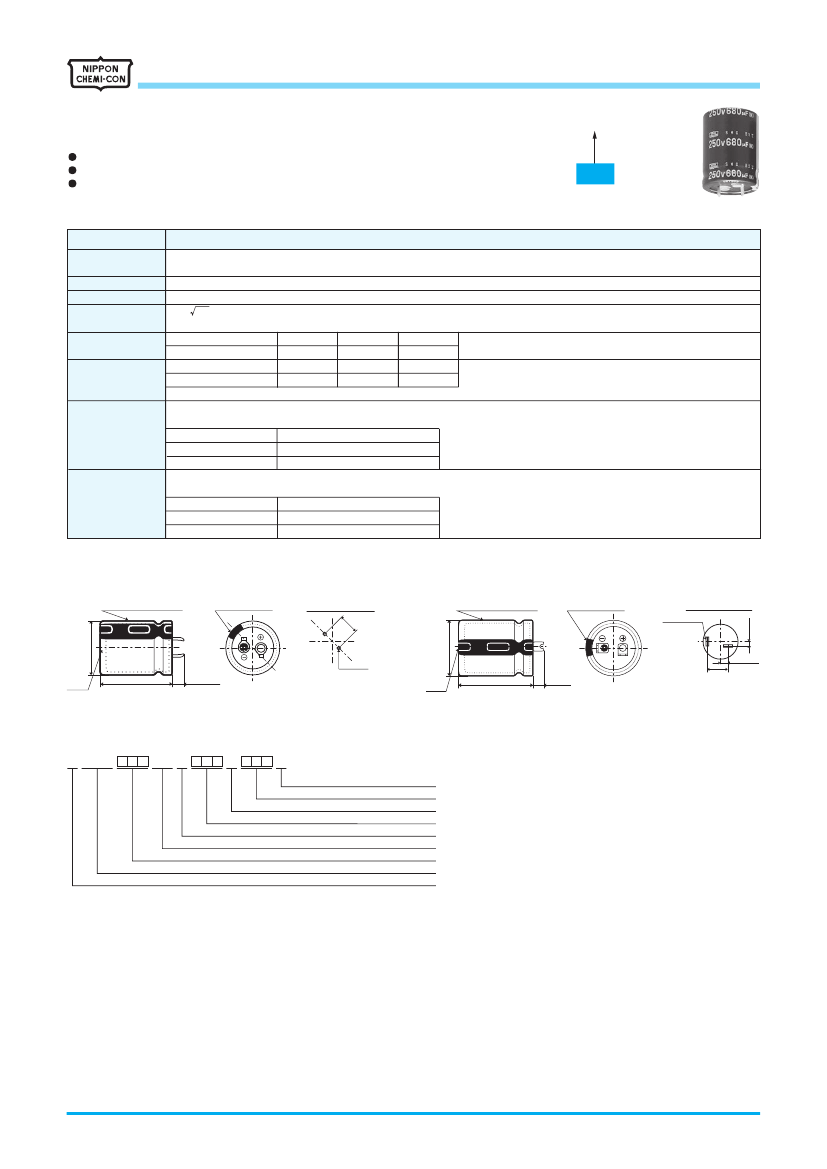

Preview

Download Datasheet
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Downsized snap-ins, 85℃
SMQ
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Series
SMR P205
Downsized
・Endurance
with ripple current : 2,000 hours at 85℃
・Non
solvent resistant type
・RoHS
Compliant
SMQ
◆SPECIFICATIONS
Characteristics
-25 to +85℃
160 to 450V
dc
±
20% (M)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
dc
)
160 to 250V 315 to 400V 420 & 450V
tanδ (Max.)
0.15
0.15
0.20
Rated voltage (V
dc
)
160 to 250V 315 to 400V 420 & 450V
Z(-25℃)/Z(+20℃)
4
8
8
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at 85℃.
Capacitance change
≦±
20% of the initial value
D. F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±
15% of the initial value
D. F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
●
Terminal
Code : VS (φ22 to
φ35)
: Standard
Negative mark
PC board pin-out
10
●
Terminal
Code : LI (φ35)
Negative mark
4.2
±
0.5
PC board pin-out
2-1.2×6
Sleeve (PET : Black)
φD+1max.
Sleeve (PET : Black)
φD+1max.
2-
φ2
L
±
2
4.0
±
0.5
5
±
0.5
L
±
2
4.5
±
1
14.2
±
1
Vent
Vent
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E S MQ
A A A
V S N
A A A
M
A A A
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 82µF:820, 3,300µF:332)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 160V:161, 315V:3B1, 450V:451)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
207
CAT. No. E1001N
