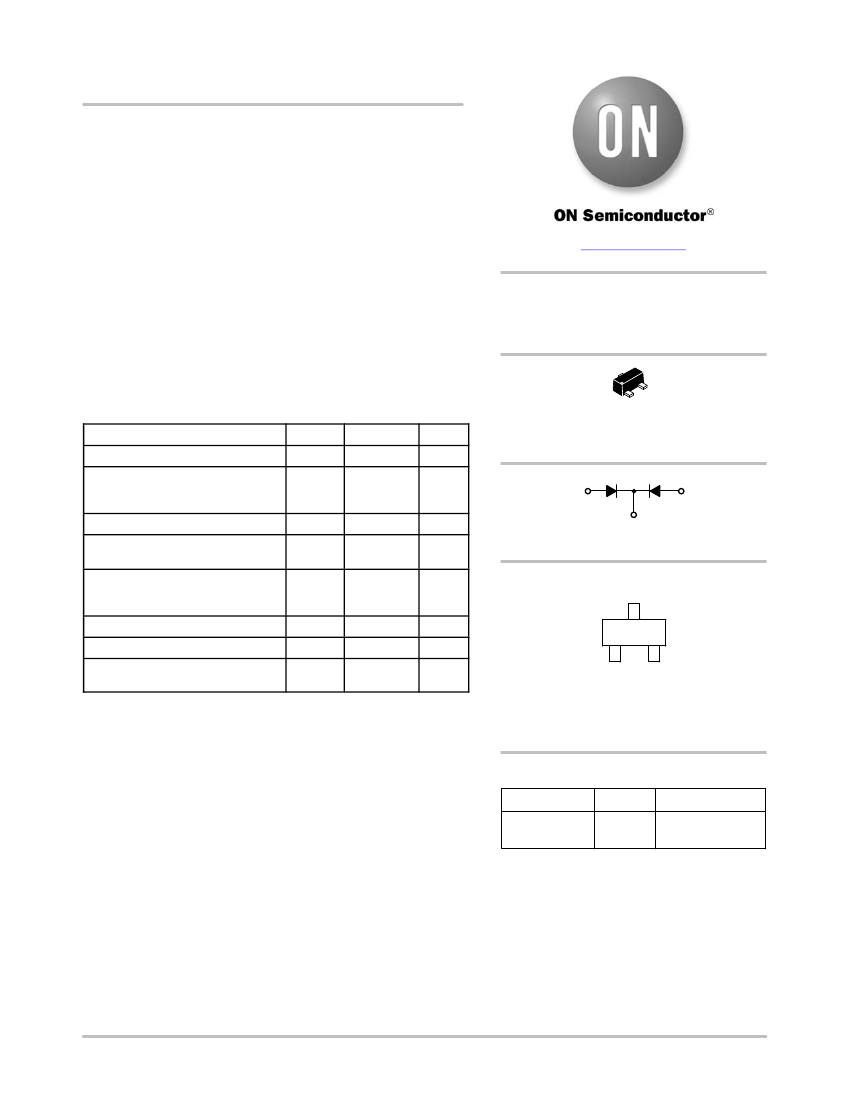

BAT54CXV3
Dual Series Schottky
Barrier Diodes
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
Features
www.onsemi.com
•
Extremely Fast Switching Speed
•
Low Forward Voltage − 0.35 V (Typ) @ I
F
= 10 mAdc
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
(T
J
= 125°C unless otherwise noted)
Rating
Reverse Voltage
Forward Power Dissipation
@ T
A
= 25°C
Derate above 25°C
Forward Current (DC)
Non−Repetitive Peak Forward
Current, t
p
< 10 msec
Repetitive Peak Forward Current
Pulse Wave = 1 sec, Duty Cycle =
66%
Junction Temperature
Storage Temperature Range
Thermal Resistance,
Junction−to−Ambient (Note 1)
Symbol
V
R
P
F
240
1.9
I
F
I
FSM
I
FRM
200 Max
600
300
mW
mW/°C
mA
mA
mA
Value
30
Unit
V
30 VOLT
DUAL COMMON CATHODE
SCHOTTKY BARRIER DIODES
3
1
2
SC−89
CASE 463C
STYLE 3
1
ANODE
3
CATHODE
2
ANODE
MARKING DIAGRAM
T
J
T
stg
R
qJA
−55 to 125
−55 to +150
525
°C
°C
°C/W
1
5CM
G
G
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. FR−4 board with minimum mounting pad.
5C
= Device Code
M
= Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
BAT54CXV3T1G
Package
SC−89
(Pb−Free)
Shipping
†
3000 / Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2014
1
November, 2014 − Rev. 3
Publication Order Number:
BAT54CXV3/D
BAT54CXV3
PACKAGE DIMENSIONS
SC−89, 3−LEAD
CASE 463C−03
ISSUE C
A
−X−
3
1
2
B −Y− S
K
G
2 PL
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETERS
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD
FINISH THICKNESS. MINIMUM LEAD THICKNESS
IS THE MINIMUM THICKNESS OF BASE
MATERIAL.
4. 463C−01 OBSOLETE, NEW STANDARD 463C−02.
DIM
A
B
C
D
G
H
J
K
L
M
N
S
MILLIMETERS
MIN
NOM MAX
1.50
1.60
1.70
0.75
0.85
0.95
0.60
0.70
0.80
0.23
0.28
0.33
0.50 BSC
0.53 REF
0.10
0.15
0.20
0.30
0.40
0.50
1.10 REF
−−−
−−−
10
_
−−−
−−−
10
_
1.50
1.60
1.70
MIN
0.059
0.030
0.024
0.009
INCHES
NOM MAX
0.063 0.067
0.034 0.040
0.028 0.031
0.011 0.013
0.020 BSC
0.021 REF
0.004 0.006 0.008
0.012 0.016 0.020
0.043 REF
−−−
−−−
10
_
−−−
−−−
10
_
0.059 0.063 0.067
D
0.08 (0.003)
M
3 PL
X Y
M
C
N
J
−T−
SEATING
PLANE
STYLE 3:
PIN 1. ANODE
2. ANODE
3. CATHODE
SOLDERING FOOTPRINT*
0.53
0.020
0.53
0.020
1.10
0.043
0.50
0.020
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and the
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States and/or other countries.
SCILLC owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed
at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation
or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets
and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each
customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended,
or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which
the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or
unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable
copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
www.onsemi.com
4
BAT54CXV3/D
