BC847BPDXV6T5

Description
100 mA, 45 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR
CategoryDiscrete semiconductor    The transistor
File Size110KB,6 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

BC847BPDXV6T5 Overview

100 mA, 45 V, 2 CHANNEL, NPN AND PNP, Si, SMALL SIGNAL TRANSISTOR

BC847BPDXV6T5 Parametric

Parameter NameAttribute value
Brand NameON Semiconduc
Is it lead-free?Lead free
MakerON Semiconductor
package instructionPLASTIC, CASE 463A-01, 6 PIN
Contacts6
Manufacturer packaging code463A-01
Reach Compliance Codecompli
ECCN codeEAR99
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage45 V
ConfigurationSEPARATE, 2 ELEMENTS
Minimum DC current gain (hFE)200
JESD-30 codeR-PDSO-F6
JESD-609 codee3
Humidity sensitivity level1
Number of components2
Number of terminals6
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN AND PNP
Maximum power dissipation(Abs)0.5 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperature40
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz

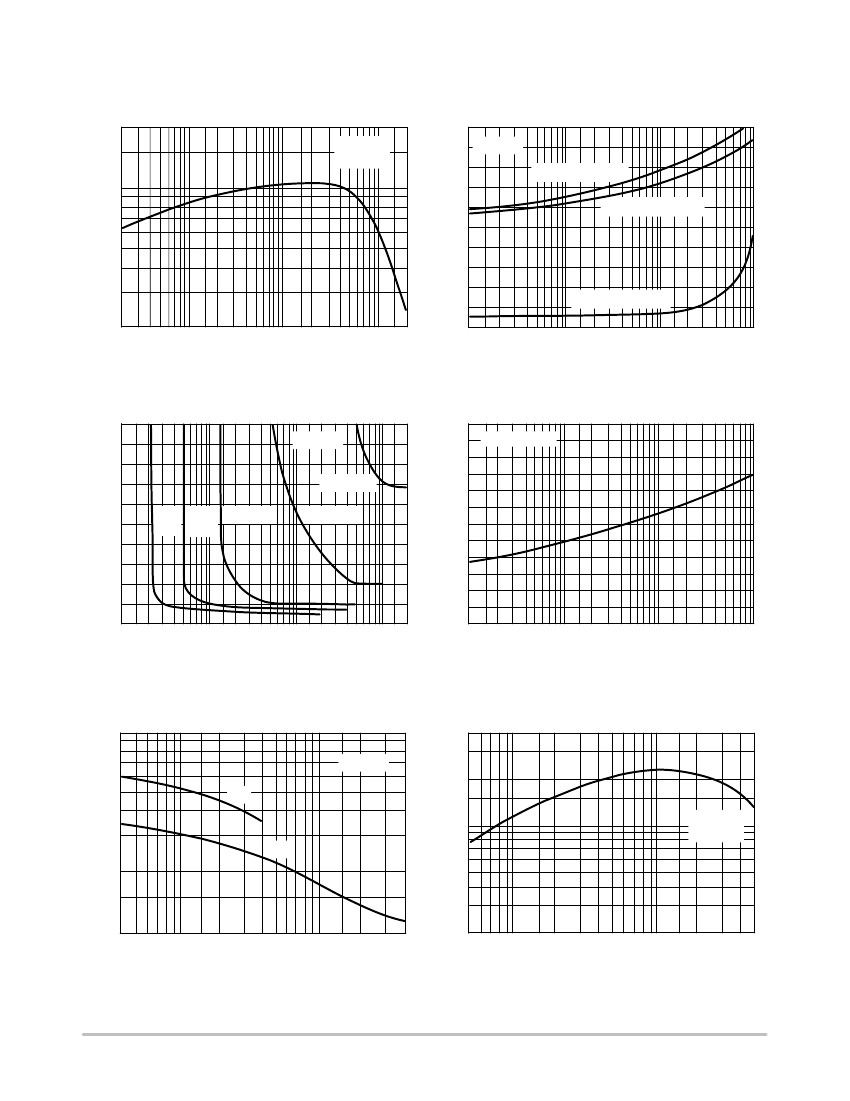

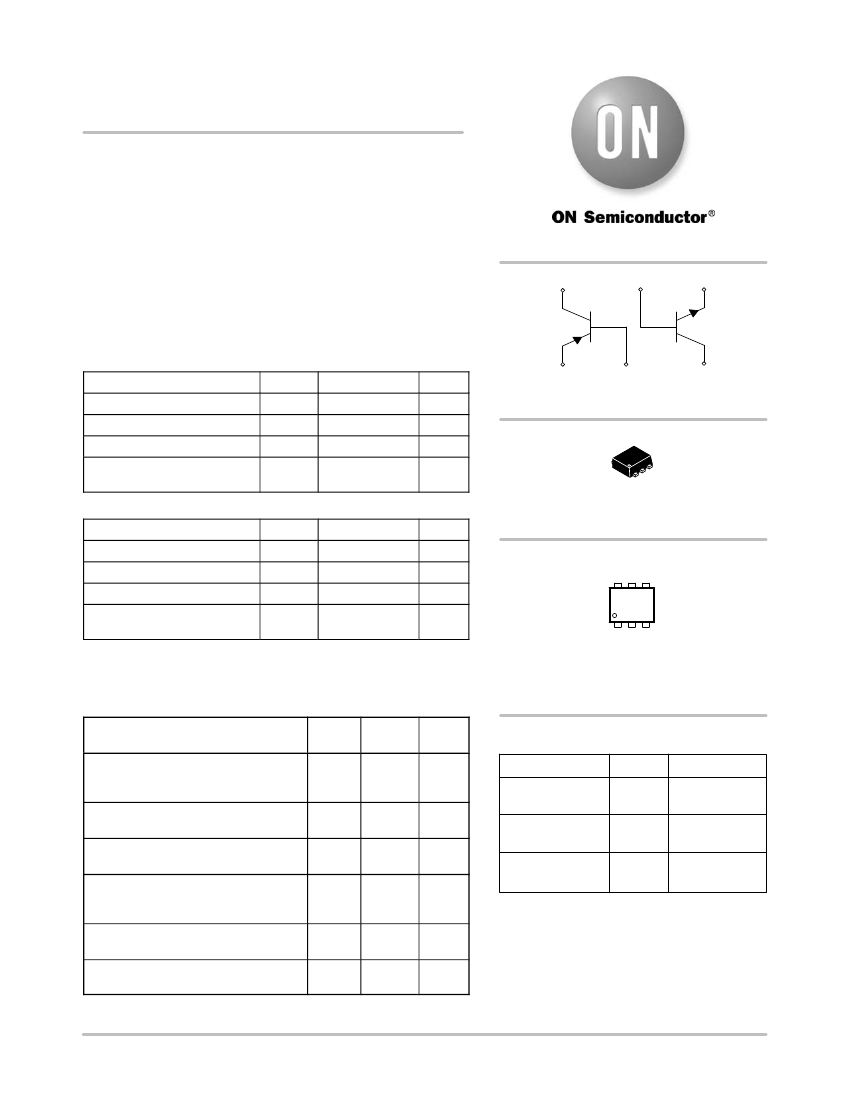

BC847BPDXV6,
SBC847BPDXV6
NPN/PNP Dual General
Purpose Transistor
This transistor is designed for general purpose amplifier
applications. It is housed in the SOT−563 which is designed for low
power surface mount applications.
Features
http://onsemi.com
(3)
(2)
(1)
S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
MAXIMUM RATINGS
NPN
Rating
Collector
−Emitter
Voltage
Collector
−Base
Voltage
Emitter
−Base
Voltage
Collector Current
Continuous
Symbol
V
CEO
V
CBO
V
EBO
I
C
Value
45
50
6.0
100
Unit
V
V
V
mAdc
Q
1
Q
2
(4)
(5)
BC847BPDX6T1
54
12
3
(6)
6
MAXIMUM RATINGS
PNP
Rating
Collector
−Emitter
Voltage
Collector
−Base
Voltage
Emitter
−Base
Voltage
Collector Current
Continuous
Symbol
V
CEO
V
CBO
V
EBO
I
C
Value
−45
−50
−5.0
−100
Unit
V
V
V
mAdc
SOT−563
CASE 463A
MARKING DIAGRAM
4F MG
G
1
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
THERMAL CHARACTERISTICS
Characteristic
(One Junction Heated)
Total Device Dissipation (Note 1)
T
A
= 25°C
Derate above 25°C
Thermal Resistance
Junction-to-Ambient (Note 1)
Characteristic
(Both Junctions Heated)
Total Device Dissipation (Note 1)
T
A
= 25°C
Derate above 25°C
Thermal Resistance
Junction-to-Ambient (Note 1)
Junction and Storage Temperature Range
1. FR−4 @ Minimum Pad
Symbol
P
D
Max
357
2.9
350
Max
500
4.0
250
−55
to
+150
Unit
mW
mW/°C
°C/W
4F = Specific Device Code
M = Month Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
BC847BPDXV6T1G
Package
Shipping
R
qJA
SOT−563
4 mm pitch
(Pb−Free) 4000/Tape & Reel
SBC847BPDXV6T1G SOT−563
2 mm pitch
(Pb−Free) 4000/Tape & Reel
Unit
mW
mW/°C
°C/W
°C
BC847BPDXV6T5G
SOT−563
2 mm pitch
(Pb−Free) 8000/Tape & Reel
Symbol
P
D
R
qJA
T
J
, T
stg
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2013
May, 2013
Rev. 2
1
Publication Order Number:
BC847BPDXV6T1/D
