BYV95A - BYV96E

PRV : 200 - 1000 Volts

Io : 1.5 Amperes

FEATURES :

* High current capability

* High surge current capability

* High reliability

* Low reverse current

* Low forward voltage drop

* Fast switching for high efficiency

* Pb / RoHS Free

AVALANCHE FAST RECOVERY

RECTIFIER DIODES

D2

0.161 (4.10)

0.154 (3.90)

1.00 (25.4)

MIN.

0.284 (7.21)

0.268 (6.81)

MECHANICAL DATA :

* Case : D2 Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

Method 208 guaranteed

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.465 gram

0.034 (0.86)

0.028 (0.71)

1.00 (25.4)

MIN.

Dimensions in inches and ( millimeters )

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25

°

C ambient temperature unless otherwise specified.

Single phase, half wave, 50 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

RATING

Maximum Recurrent Peak Reverse Voltage

Maximum RMS voltage

Maximum DC Blocking Voltage

Min. Avalanche Breakdown Voltage @ 100

µA

Maximum Average Forward Rectified Current

Lead Length 10 mm. ; T

tp

= 65

°C

Peak Forward Surge Current single half sine wave

superimposed on rated load

Maximum Forward Voltage at I

F

= 3.0 Amps.

Maximum DC Reverse Current

T

J

= 25

°C

at Rated DC Blocking Voltage

T

J

= 165

°C

Maximum Reverse Recovery Time ( Note 1 )

Typical Thermal Resistance (Note 2)

Junction Temperature Range

Storage Temperature Range

Notes :

SYMBOL

BYV95A BYV95B BYV95C BYV96D BYV96E

UNIT

V

RRM

V

RMS

V

DC

V

BR(

min.

)

I

F(AV

)

I

FSM

V

F

I

R

I

R(H)

Trr

R

θ

JA

T

J

T

STG

250

50

175

- 65 to + 175

200

140

200

300

400

280

400

500

600

420

600

700

1.5

35

1.6

5.0

150

300

800

560

800

900

1000

700

1000

1100

V

A

V

µA

ns

°C/W

°C

(1) Measured with I

F

= 0.5A, I

R

= 1.0A, Irr = 0.25A

(2) Thermal resistance from Junction to Ambient at 0.375" (9.5mm) Lead Lengths, P.C. Board Mounted.

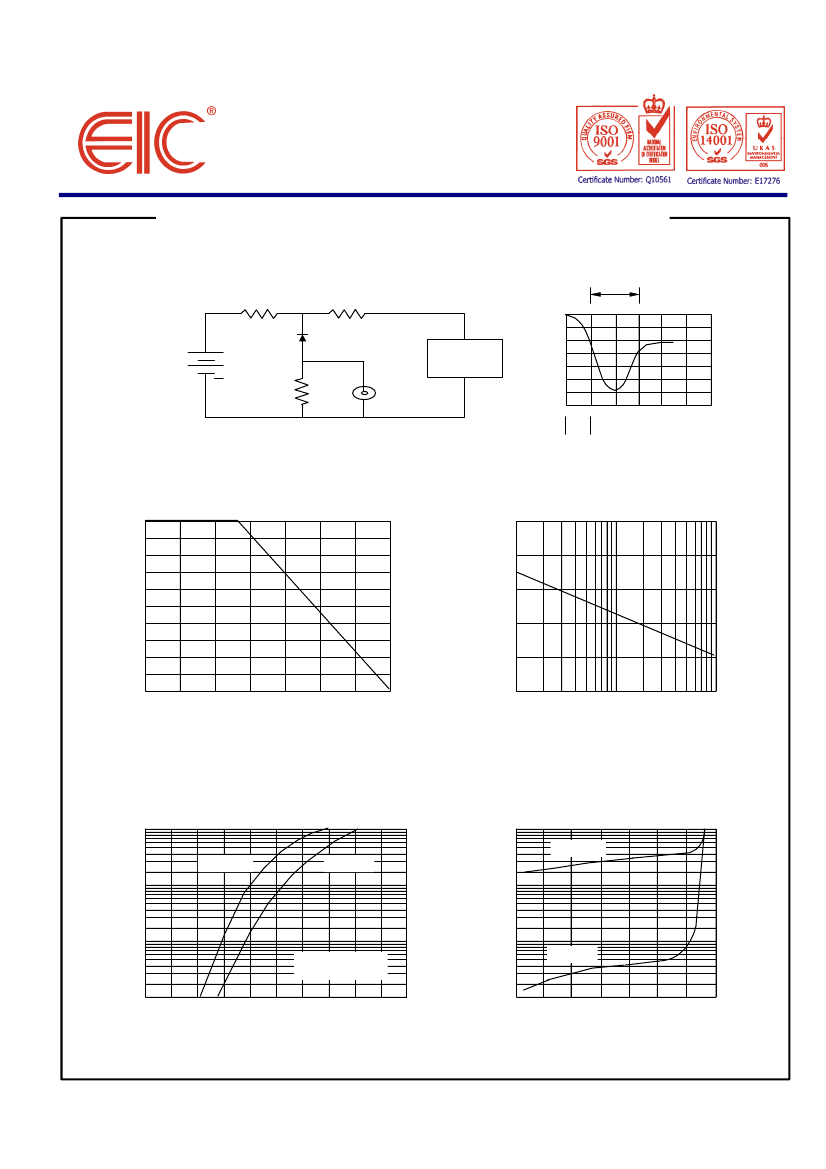

Page 1 of 2

Rev. 02 : March 24, 2005
