IL-G SERIES CONNECTORS
2.5mm (.098") Contact Spacing, PCB-to-Cable (Crimp Type) Connectors
• • • • • • • • • • • • • •

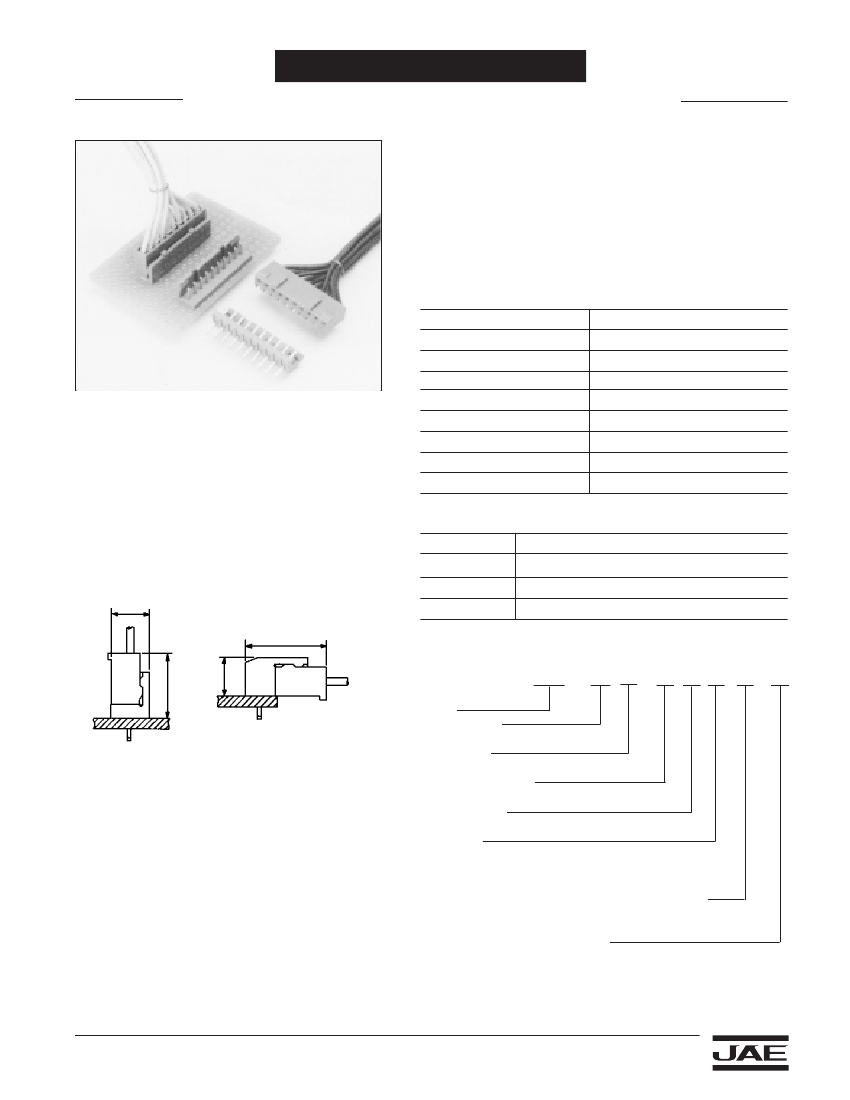

IL-G Series connectors are low profile, PCB-to-cable connectors
with 2.5mm (.098") contact spacing.
The crimp contacts for socket housing can be terminated with a
hand crimping tool, or a semi-automatic crimping machine for
rapid, high volume terminations. IL-G Series connectors are
available in socket housing, straight pin header and right angle
pin header configurations.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
2 to 15
2.5mm (.098"), single row
3 Amps
1500 VAC r.m.s. (for one minute)
100 megohms min.
20 milliohms max.
-40°C to +85°C
1.6 to 2.6mm (.063 to .102") thick
AWG #22 to #28
FEATURES
Contact Resistance
Operating Temperature
Applicable PCB Thickness
Applicable Wire Sizes
• Low profile—10mm (.394") total mated height
for straight connection
• Mismating-prevention structure
• Friction locking mechanism
• Prevents solder-flux contamination
MATERIALS AND FINISHES
Description
Insulator
Pin Contact
Socket Contact
Materials/Finishes
6-6 Nylon (UL94V-0, Light Brown)
Brass, Tin plated over Nickel
Phosphor Bronze/Tin plated
6
(.236)
Connector Profile (Ref.)
12.6 (.496)
ORDERING INFORMATION
IL-G
–
**
* –
S
3
*
2 – E
10
(.394)
6
(.236)
Series
No. of Contacts
2 to 15
Contact Type
P – Pin
S – Socket
Contact Arrangement
S – Single Row
Contact Spacing
3 – 2.5mm (.098")
Termination
C – Crimp (Socket Housing)
T – Straight (Pin Header)
L – Right Angle (Pin Header)
PCB Thickness (Pin Header)/Wire Size (Socket Housing)
2 – 1.6 to 2.6mm (.063 to .102") PCB Thickness or
#22 AWG to #28 AWG Wire Size
Modification Code (Pin Header Only)
Dimensions without notice.
Dimensions and specifications subject to change in mm (inches).
IL-G SERIES CONNECTORS
2.5mm (.098") Contact Spacing, PCB-to-Cable (Crimp Type) Connectors

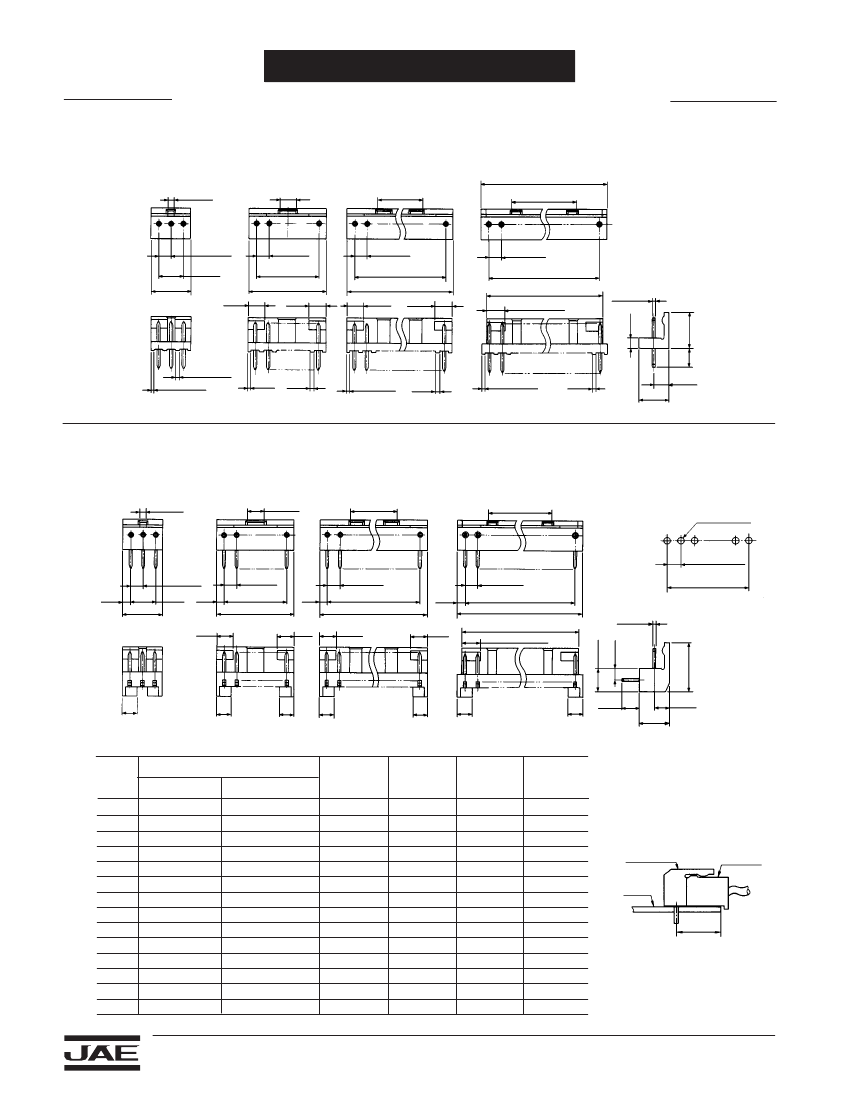

STRAIGHT PIN HEADER
: IL-G-**P-S3T2-E
• 2, 3 Contacts
+ 0.3 (.012)
C
0 (0)
• 4 to 6 Contacts
+ 0.3 (.012)
C
0 (0)
• 7 to 12 Contacts
+ 0.3 (.012)
C
0 (0)
• 13 to 15 Contacts
B
±
0.5 (.020)
C
+ 0.3 (.012)
0
(0)
2.5 (.098)
±
0.08 (.003)
2.5 (.098)
±
0.08 (.003)
2.5 (.098)
±
0.08 (.003)
2.5 (.098)
±
0.08 (.003)
A
B
±
0.5 (.020)
±
0.25 (.010)
A
±
0.25 (.010)
B
±
0.5 (.020)
3.5
(.138)
A
±
0.25 (.010)
B
±
0.5 (.020)
3.5
(.138)
3.5
(.138)
A
±
0.5 (.020)
D
- 0.5 (.020)
3.5 (.138) (both sides)
0
(0)
2.1
(.083)
3.5
(.138)
0.64 (.025)
square
0.8
(.031)
0.65 (.026)
(both sides)
0.65
0.8
(.026) (.031)
(both sides)
0.65 (.026)
(both sides)
0.8
(.031)
0.65 (.026)
(both sides)
0.8
(.031)
6
(.236)
3.07
(.121)
RIGHT ANGLE PIN HEADER
: IL-G-**P-S3L2-E
• 2, 3 Contacts
C
+ 0.3 (.012)
0
(0)
• 4 to 6 Contacts
C
+ 0.3 (.012)
0
(0)
• 7 to 12 Contacts
C
+ 0.3 (.012)
0
(0)
• 13 to 15 Contacts
C
+ 0.3 (.012)
0
(0)
• PCB Mounting hole
PCB thickness:
1.6 to 2.6mm (.062 to .102")
PCB Hole Pattern
1.1 (.043) DIA.
±
0.1 (.004)
2.5 (.098)
±
0.08 (.003)
2.5 (.098)
±
0.08 (.003)
A
±
0.25 (.010)
2.5 (.098)
1.5
(.059)
3.5
(.138)
±
0.08 (.003)
A
±
0.25 (.010)
2.5 (.098)
1.5
(.059)
3.5
(.138)
±
0.08 (.003)
A
±
0.25 (.010)
1.5
(.059)
A
B
±
0.5 (.020)
±
0.25
(.010)
1.5
(.059)
3.5
(.138)
B
±
0.5 (.020)
B
±
0.5 (.020)
3.5
(.138)
B
±
0.5 (.020)
4.7 (.185)
2.35
(.093)
D
- 0.5 (.020)
3.5 (.138) (both sides)
0
(0)
0.64 (.025)
square
D
3
(.118)
3
(.118)
3
(.118)
3
(.118)
3
(.118)
3
(.118)
3.5
(.138)
6
(.236)
3.07
(.121)
No. of
Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part Number
Straight Pin Header Right Angle Pin Header
A
B
±
0.5 (± .020)
5.5 ( .217)
8
13
18
23
28
33
38
( .315)
( .512)
( .709)
( .905)
( 1.102)
( 1.299)
( 1.496)
10.5 ( .413)
15.5 ( .610)
20.5 ( .807)
25.5 ( 1.004)
30.5 ( 1.201)
35.5 ( 1.398)
C
+0.3 +.012
-0
-0
D
(
)
1.7 ( .067)
3
( .118)
—
—
—
—
—
—
—
—
—
31.4 ( 1.236)
33.9 ( 1.335)
36.4 ( 1.433)
IL-G- 2P-S3T2-E
IL-G- 3P-S3T2-E
IL-G- 4P-S3T2-E
IL-G- 5P-S3T2-E
IL-G- 6P-S3T2-E
IL-G- 7P-S3T2-E
IL-G- 8P-S3T2-E
IL-G- 9P-S3T2-E
IL-G-10P-S3T2-E
IL-G-11P-S3T2-E
IL-G-12P-S3T2-E
IL-G-13P-S3T2-E
IL-G-14P-S3T2-E
IL-G-15P-S3T2-E
IL-G- 2P-S3L2-E
IL-G- 3P-S3L2-E
IL-G- 4P-S3L2-E
IL-G- 5P-S3L2-E
IL-G- 6P-S3L2-E
IL-G- 7P-S3L2-E
IL-G- 8P-S3L2-E
IL-G- 9P-S3L2-E
IL-G-10P-S3L2-E
IL-G-11P-S3L2-E
IL-G-12P-S3L2-E
IL-G-13P-S3L2-E
IL-G-14P-S3L2-E
IL-G-15P-S3L2-E
2.5 ( .098)
5
10
15
20
25
30
35
( .197)
( .394)
( .591)
( .787)
( .984)
( 1.181)
( 1.378)
7.5 ( .295)
12.5 ( .492)
17.5 ( .689)
22.5 ( .886)
27.5 ( 1.083)
32.5 ( 1.280)
1.5 ( .059)
2
3
6
11
16
( .079)
( .118)
( .236)
( .433)
( .630)
2.5 ( .098)
3.5 ( .138)
8.5 ( .335)
13.5 ( .531)
18.5 ( .728)
21.3 ( .839)
23.8 ( .937)
26.3 ( 1.035)
INSTALLATION
Right-angle pin header must
be installed on an edge of the
board as shown below.
Angle Pin
Header
PCB
Socket
Housing
7.0 to 8.5
(.276 to .335)
Dimensions in mm (inches).
9.7
(.382)
3.5
7.1
(.138) (.280)
2.5 (.098)
±
0.01 (.0004)
A
±
0.1 (.004)
IL-G SERIES CONNECTORS
2.5mm (.098") Contact Spacing, PCB-to-Cable (Crimp Type) Connectors

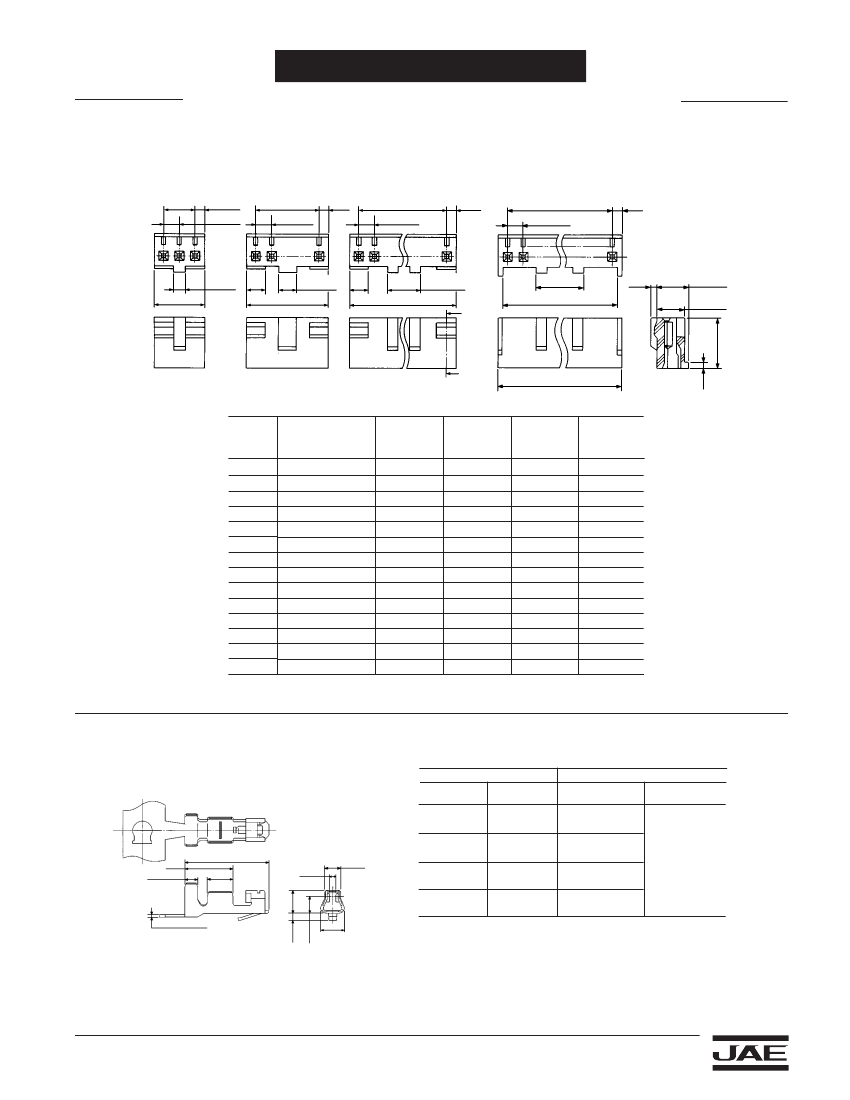

SOCKET HOUSING
: IL-G-**S-S3C2
• 2, 3 Contacts
A
±
0.25 (.010)
• 4 to 6 Contacts
A
±
0.25 (.010)
2.5 (.098)
±
0.08 (.003)
• 7 to 12 Contacts
A
±
0.25 (.010)
2.5 (.098)
±
0.08 (.003)
• 13 to 15 Contacts
1.5
(.059)
A
±
0.25 (.010)
2.5 (.098)
±
0.08 (.003)
1.5 (.059)
2.5 (.098)
±
0.08 (.003)
1.5
(.059)
1.5
(.059)
C
- 0.3 (.012)
B
±
0.5 (.020)
0
(0)
3
(.118)
C
- 0.3 (.012)
B
±
0.5 (.020)
0
(0)
3
(.118)
C
- 0.3 (.012)
B
±
0.5 (.020)
0
(0)
C
±
0.3 (.012)
+ 0.3 (.012)
D
0 (0)
1
(.039)
5 (.197)
±
0.8 (.031)
4.5 (.177)
7.9 (.311)
±
0.5 (.020)
A
B
±
0.5 (.020)
1
(.039)
A
Section A-A
No. of
Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3
IL-G- 3P-S3T2-E
4
IL-G- 4P-S3T2-E
5
IL-G- 5P-S3T2-E
6
IL-G- 6P-S3T2-E
7
IL-G- 7P-S3T2-E
8
IL-G- 8P-S3T2-E
IL-G- 9P-S3T2-E
9
10
IL-G-10P-S3T2-E
11
IL-G-11P-S3T2-E
IL-G-12P-S3T2-E
12
13
IL-G-13P-S3T2-E
14
IL-G-14P-S3T2-E
15
IL-G-15P-S3T2-E
Part Number
IL-G- 2S-S3C2
IL-G- 3S-S3C2
IL-G- 4S-S3C2
IL-G- 5S-S3C2
IL-G- 6S-S3C2
IL-G- 7S-S3C2
IL-G- 8S-S3C2
IL-G- 9S-S3C2
IL-G- 10S-S3C2
IL-G- 11S-S3C2
IL-G- 12S-S3C2
IL-G- 13S-S3C2
IL-G- 14S-S3C2
IL-G- 15S-S3C2
A
±
0.25 (± .010)
2.5 ( .098)
5
10
15
20
25
30
35
( .197)
( .394)
( .591)
( .787)
( .984)
( 1.181)
( 1.378)
7.5 ( .295)
12.5 ( .492)
17.5 ( .689)
22.5 ( .886)
27.5 ( 1.083)
32.5 ( 1.280)
B
±
0.5 (± .020)
5.5 ( .217)
8
13
18
23
28
33
38
( .315)
( .512)
( .709)
( .905)
( 1.102)
( 1.299)
( 1.496)
10.5 ( .413)
15.5 ( .610)
20.5 ( .807)
25.5 ( 1.004)
30.5 ( 1.201)
35.5 ( 1.398)
C
+0
+0
-0.3 -.012
(
)
D
+0.3 +.012
-0
-0
(
)
1.4 ( .055)
1.9 ( .075)
2.4 ( .094)
2.9 ( .114)
3.4 ( .134)
5.9 ( .232)
8.4 ( .331)
10.9 ( .429)
13.4 ( .528)
15.9 ( .626)
18.4 ( .724)
20.9 ( .823)
23.4 ( .921)
25.9 ( 1.020)
—
—
—
—
—
—
—
—
—
—
—
31.3 ( 1.232)
33.8 ( 1.331)
36.3 ( 1.429)
SOCKET CONTACT (CRIMP TYPE):
Applicable Wire and Crimping Tool
Applicable Wire
AWG#
#28 to #26
#26 to #24
Outer Dia.
1.0 to 1.3mm
(.039 to .051")
1.2 to 1.5mm
(.047 to .059")
1.4 to 1.7mm
(.055 to .067")
—
Crimping Tool
Hand Crimping tool
Semi-Automatic
Crimping Machine
P/N: IL-G-C2-SA-10000 (10000 pcs. per reel)
CT150-1-ILG
CT150-1B-ILG
CT350-2-ILG
CT150-1C-ILG
CT150-1D-ILG
3.8
1 (.150)
(.039)
2
(.079)
6.6
(.260)
0.5
(.020)
1.25
(.049)
#24 to #22
#20
(Shielded Wire)
0.6
(.024)
1.35
(.053)
0.2 (.008)
t hick
1.8
(.071)
1.85
(.073)
Contact Extraction tool:
JET-IL-G-NO2
Dimensions in mm (inches).
PCB Design
