IL-S-11P-S2UX2-EF datasheet, PDF

Datasheet> All Categories > The connector> The connector> IL-S-11P-S2UX2-EF

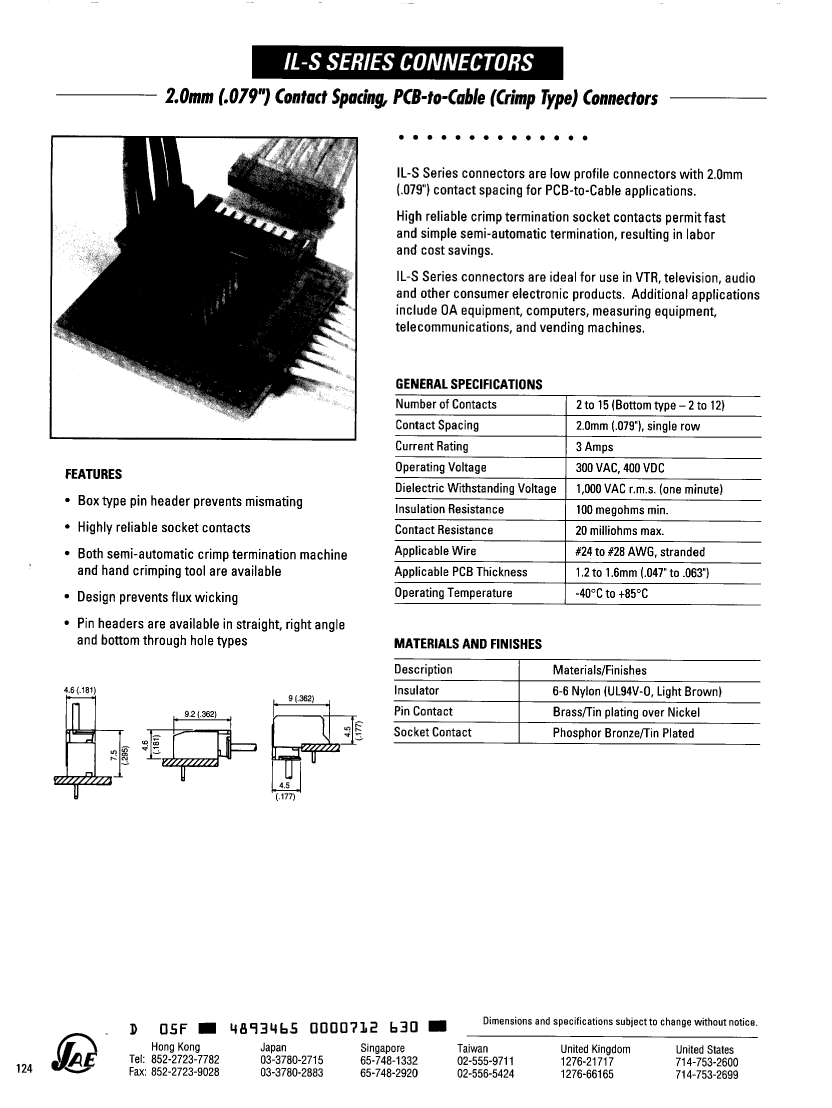

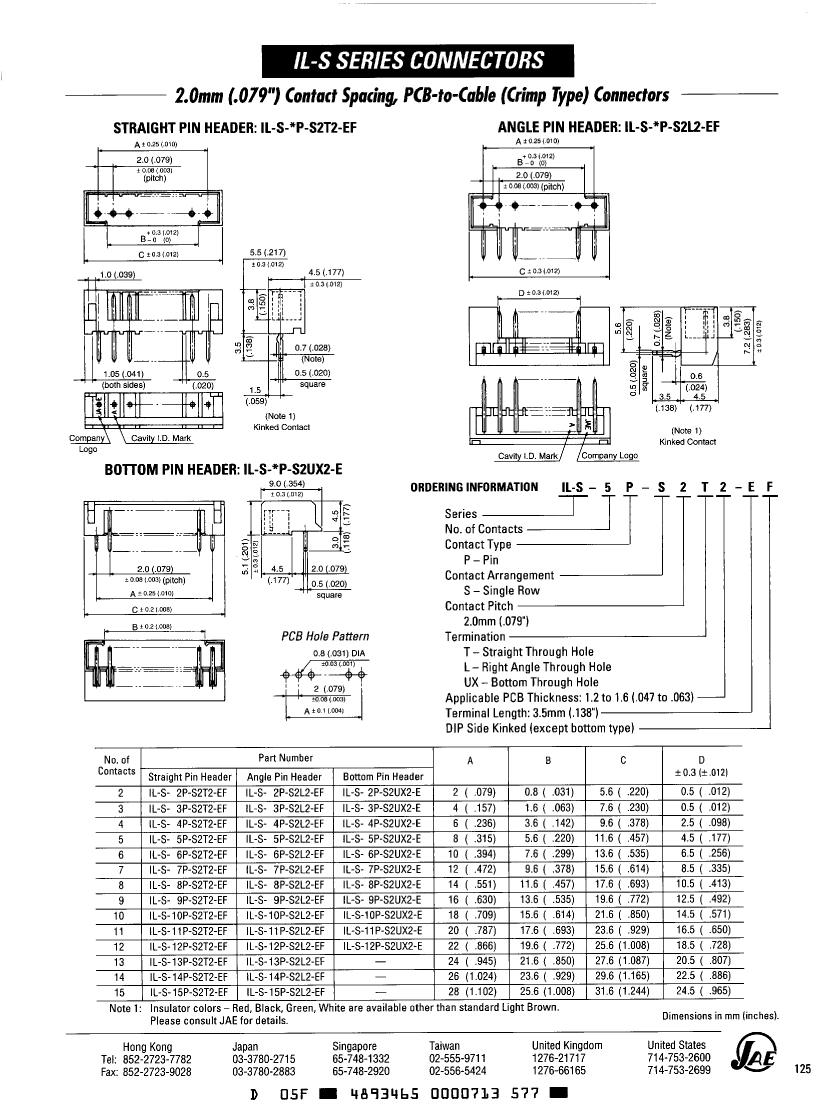

IL-S-11P-S2UX2-EF: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle; CategoryThe connector The connector; File Size197KB，2 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

IL-S-11P-S2UX2-EF Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle

IL-S-11P-S2UX2-EF Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
body width	0.201 inch
subject depth	0.354 inch
body length	0.929 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	100000000 Ω
Insulator color	BROWN
insulator material	NYLON
Manufacturer's serial number	IL-S
Plug contact pitch	0.079 inch
Installation method	90 DEGREE BOTTOM MOUNT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	11

Preview

Download Datasheet

View All

IL-S-11P-S2UX2-EF Related Products

	IL-S-11P-S2UX2-EF	IL-S-2P-S2UX2-EF	IL-S-3P-S2UX2-EF	IL-S-4P-S2UX2-EF	IL-S-5P-S2UX2-EF	IL-S-6P-S2UX2-EF	IL-S-8P-S2UX2-EF	IL-S-9P-S2UX2-EF	IL-S-10P-S2UX2-EF
Description	Board Connector, 11 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, 90 Degree Bottom Mount, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch	0.201 inch
subject depth	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
body length	0.929 inch	0.22 inch	0.23 inch	0.378 inch	0.457 inch	0.535 inch	0.693 inch	0.772 inch	0.85 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	IL-S	IL-S	IL-S	IL-S	IL-S	IL-S	IL-S	IL-S	IL-S
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT	90 DEGREE BOTTOM MOUNT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	11	2	3	4	5	6	8	9	10
