BAT64-04W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT64-04W

BAT64-04W: Description0.12 A, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size201KB，12 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT64-04W Overview

0.12 A, 2 ELEMENT, SILICON, SIGNAL DIODE

BAT64-04W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	SC-70
package instruction	R-PDSO-G3
Contacts	3
Manufacturer packaging code	SOT323
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-PDSO-G3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	0.8 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

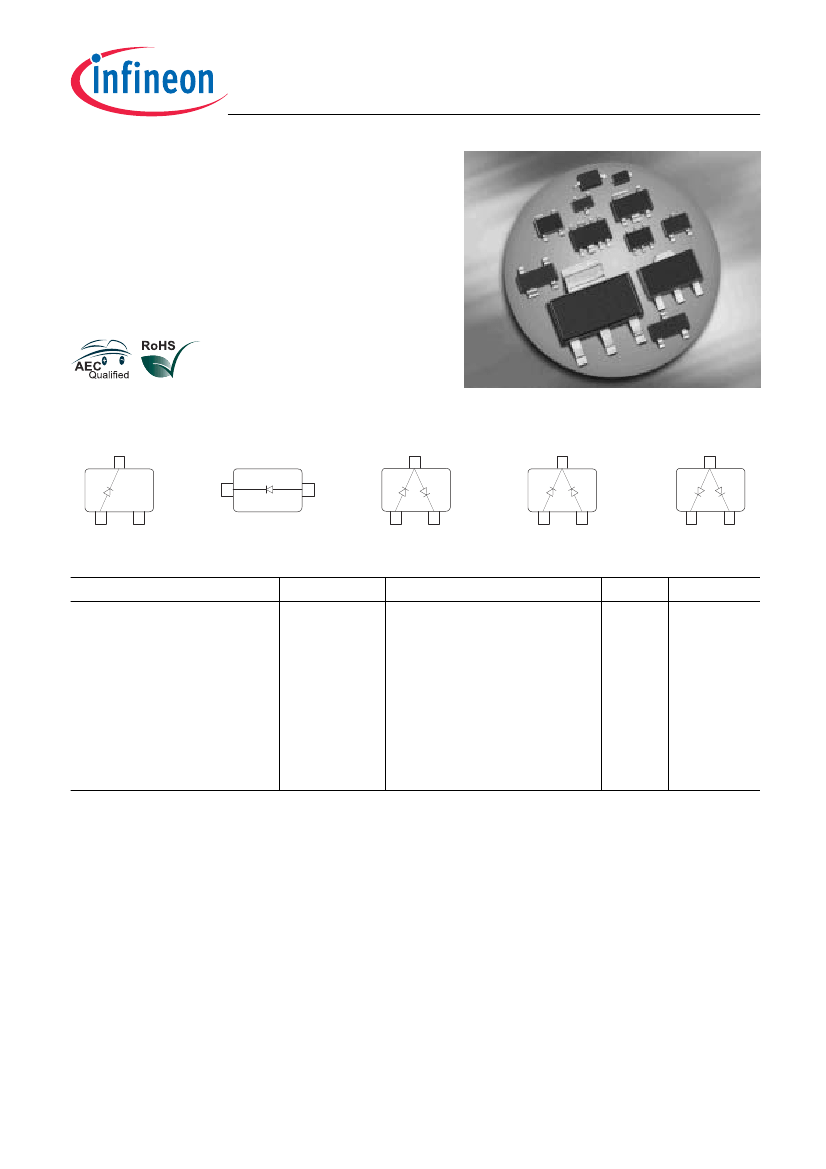

BAT64...

Silicon Schottky Diodes

•

For low-loss, fast-recovery, meter protection,

bias isolation and clamping application

•

Integrated diffused guard ring

•

Low forward voltage

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAT64

BAT64-02W

BAT64-04

BAT64-04W

BAT64-05

BAT64-05W

BAT64-06

BAT64-06W

ESD

(Electrostatic

discharge)

sensitive device, observe handling precaution!

Type

BAT64

BAT64-02W

BAT64-04

BAT64-04W

BAT64-05

BAT64-05W

BAT64-06

BAT64-06W

Pb-containing

Package

SOT23

SCD80

SOT23

SOT323

SOT23

SOT323

SOT23

SOT323

Configuration

single

series

common cathode

common anode

(nH)

1.8

0.6

1.8

1.4

1.8

1.4

1.8

1.4

Marking

63s

64s

65s

66s

package may be available upon special request

2007-06-11

BAT64-04W Related Products

	BAT64-04W	BAT64-02W	BAT64-04	BAT64-05	BAT64_07	BAT64-05W
Description	0.12 A, 2 ELEMENT, SILICON, SIGNAL DIODE	0.12 A, 40 V, SILICON, SIGNAL DIODE	0.12 A, 40 V, 2 ELEMENT, SILICON, SIGNAL DIODE	0.12 A, 2 ELEMENT, SILICON, SIGNAL DIODE	0.12 A, 40 V, SILICON, SIGNAL DIODE	0.12 A, 2 ELEMENT, SILICON, SIGNAL DIODE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to
Maker	Infineon	Infineon	Infineon	Infineon	-	Infineon
Parts packaging code	SC-70	-	SOT-23	SOT-23	-	SC-70
package instruction	R-PDSO-G3	R-PDSO-F2	R-PDSO-G3	SOT-23, 3 PIN	-	SOT-323, 3 PIN
Contacts	3	2	3	3	-	3
Reach Compliance Code	compli	unknown	compli	compli	-	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	-	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V	0.35 V	1 V	1 V	-	0.75 V
JESD-30 code	R-PDSO-G3	R-PDSO-F2	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3
Humidity sensitivity level	1	1	1	1	-	1
Maximum non-repetitive peak forward current	0.8 A	0.8 A	0.8 A	0.8 A	-	0.8 A
Number of components	2	1	2	2	-	2
Number of terminals	3	2	3	3	-	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	-	150 °C
Maximum output current	0.12 A	0.12 A	0.12 A	0.12 A	-	0.12 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	260	-	NOT SPECIFIED
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	-	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	40 V	40 V	40 V	40 V	-	40 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	-	0.005 µs
surface mount	YES	YES	YES	YES	-	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	SCHOTTKY
Terminal form	GULL WING	FLAT	GULL WING	GULL WING	-	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	-	NOT SPECIFIED
