BAV99: DescriptionSIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size169KB，13 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAV99 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAV99	-	-	View	Buy Now

BAV99 Overview

SIGNAL DIODE

BAV99 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	ROHS COMPLIANT PACKAGE-3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	Infineon BAV99, Dual SMT Switching Diode, Series, 85V 200mA, 4ns, 3-Pin SOT-23
Other features	HIGH SPEED SWITCH
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.33 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	85 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

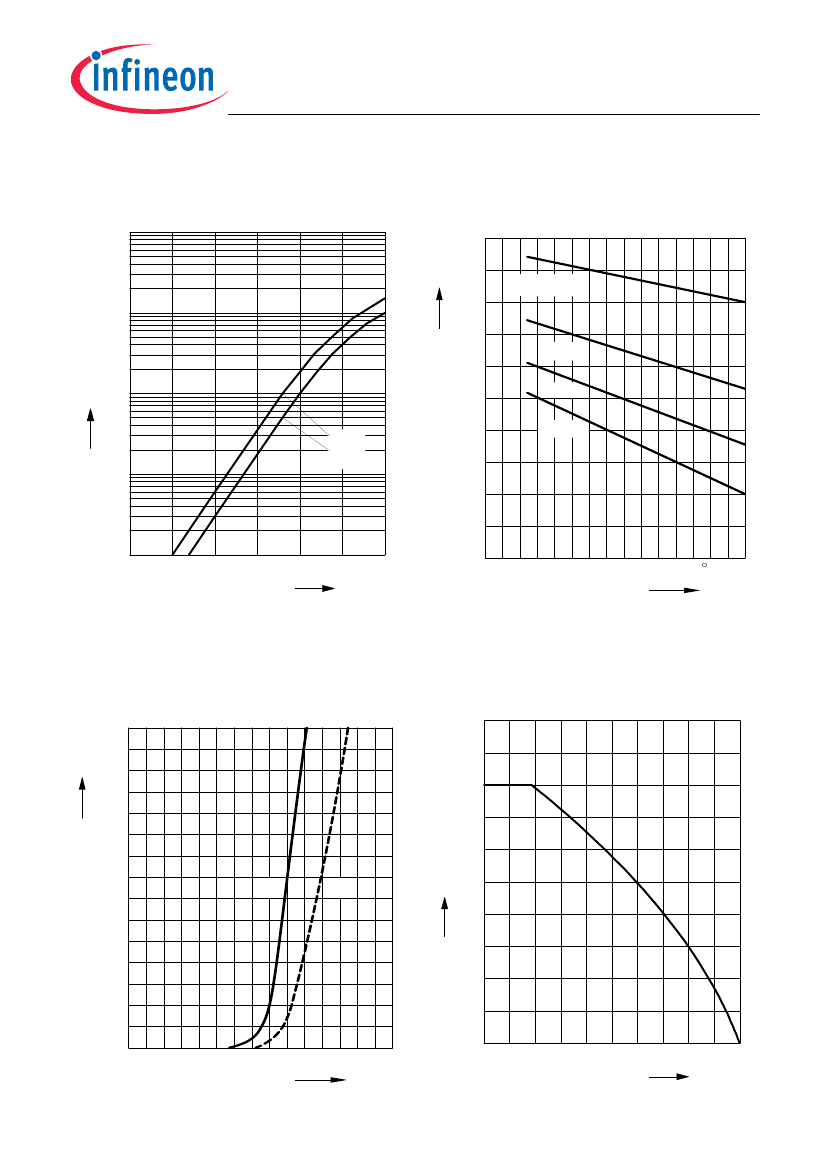

BAV99...

Silicon Switching Diode

•

For high-speed switching applications

•

Series pair configuration

•

BAV99S / U: For orientation in reel see

package information below

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAV99

BAV99W

BAV99S

BAV99U

, "

, !

Type

BAV99

BAV99S

BAV99U

BAV99W

Pb-containing

Package

SOT23

SOT363

SC74

SOT323

Configuration

series

dual series

series

Marking

A7s

package may be available upon special request

2007-09-19

BAV99 Related Products

	BAV99	BAV99U	BAV99S	BAV99_07	BAV99W
Description	SIGNAL DIODE	0.1 A, 2 ELEMENT, SILICON, SIGNAL DIODE	0.15 A, 100 V, 4 ELEMENT, SILICON, SIGNAL DIODE	SIGNAL DIODE	0.15 A, 75 V, 2 ELEMENT, SILICON, SIGNAL DIODE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	Signal diode	RECTIFIER DIODE
Is it lead-free?	Lead free	Lead free	Lead free	-	-
Is it Rohs certified?	conform to	conform to	conform to	-	conform to
Maker	Infineon	Infineon	Infineon	-	Infineon
package instruction	ROHS COMPLIANT PACKAGE-3	R-PDSO-G6	ROHS COMPLIANT PACKAGE-6	-	R-PDSO-G3
Contacts	3	6	6	-	3
Reach Compliance Code	compli	compliant	compli	-	unknow
ECCN code	EAR99	EAR99	EAR99	-	EAR99
Other features	HIGH SPEED SWITCH	HIGH SPEED SWITCH	HIGH SPEED SWITCH	-	HIGH SPEED SWITCH
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	SILICON
Maximum forward voltage (VF)	1.3 V	1.25 V	1.25 V	-	1.2 V
JESD-30 code	R-PDSO-G3	R-PDSO-G6	R-PDSO-G6	-	R-PDSO-G3
JESD-609 code	e3	-	e3	-	e3
Humidity sensitivity level	1	1	1	-	-
Number of components	2	4	4	-	2
Number of terminals	3	6	6	-	3
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C
Maximum output current	0.2 A	0.2 A	0.2 A	-	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	-	260
Maximum power dissipation	0.33 W	0.25 W	0.25 W	-	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	85 V	85 V	85 V	-	85 V
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	-	0.004 µs
surface mount	YES	YES	YES	-	YES
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	-	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	-	GULL WING
Terminal location	DUAL	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	40	NOT SPECIFIED	NOT SPECIFIED	-	40
