BBY51_07: Description5.4 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE; Categorysemiconductor Discrete semiconductor; File Size97KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Compare View All

BBY51_07 Overview

5.4 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE

Preview

Download Datasheet

View All

BBY51...

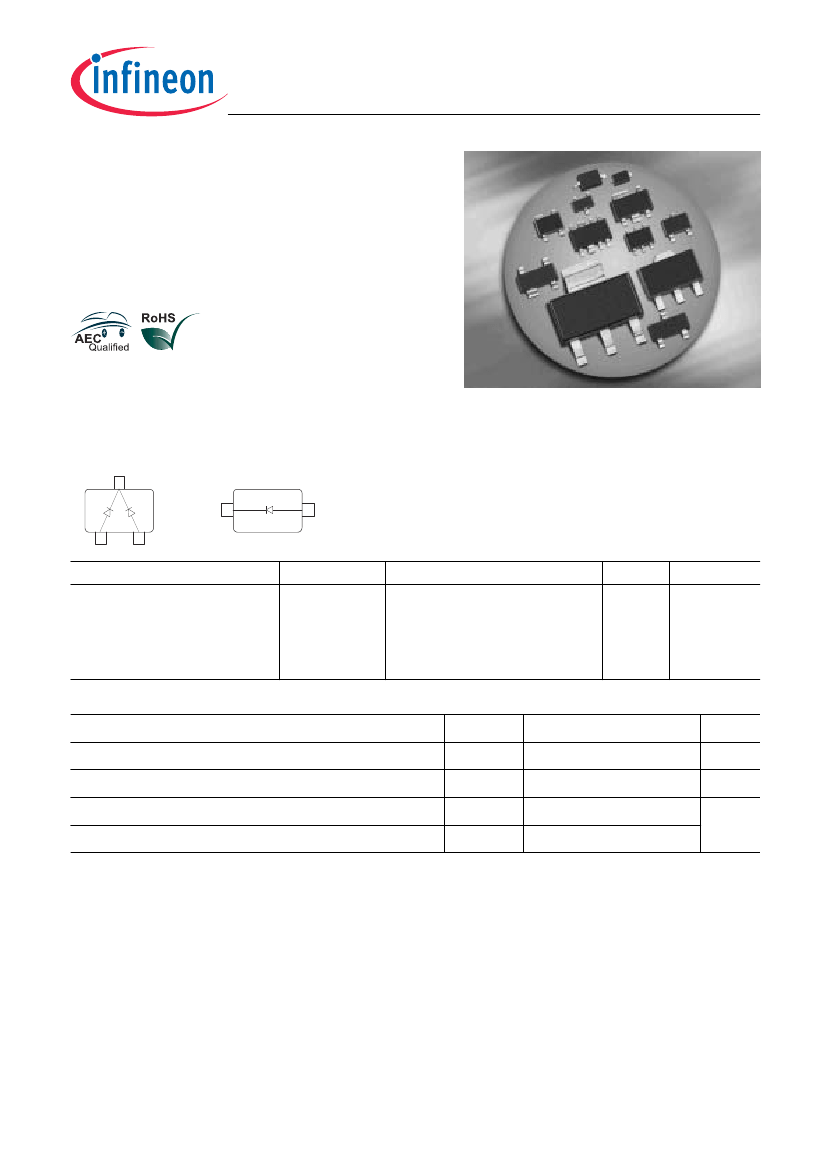

Silicon Tuning Diode

•

High Q hyperabrupt tuning diode

•

Designed for low tuning voltage operation

•

For VCO's in mobile communications equipment

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BBY51

BBY51-02L

BBY51-02W

BBY51-03W

Type

BBY51

BBY51-02L

BBY51-02W

BBY51-03W

Package

SOT23

TSLP-2-1

SCD80

SOD323

Configuration

common cathode

single, leadless

single

(nH)

0.4

0.6

1.8

Marking

S3s

Maximum Ratings

= 25°C, unless otherwise specified

Parameter

Diode reverse voltage

Forward current

Operating temperature range

Storage temperature

Pb-containing

Symbol

stg

Value

-55 ... 125

-55 ... 150

Unit

°C

package may be available upon special request

2007-04-20

BBY51_07 Related Products

	BBY51_07	BAV101	BBY51-02L	BBY51-03W	BBY51-02W
Description	5.4 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE	SMALL SIGNAL SWITCHING DIODE	5.4 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE	5.4 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE	5.4 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE
Is it Rohs certified?	-	-	conform to	conform to	conform to
Maker	-	-	Infineon	Infineon	Infineon
package instruction	-	-	LEADLESS, TSLP-2	R-PDSO-G2	R-PDSO-F2
Contacts	-	-	2	2	2
Reach Compliance Code	-	-	compli	compliant	compliant
ECCN code	-	-	EAR99	EAR99	EAR99
Is Samacsys	-	-	N	N	N
Minimum breakdown voltage	-	-	7 V	7 V	7 V
Configuration	-	-	SINGLE	SINGLE	SINGLE
Diode Capacitance Tolerance	-	-	6.48%	6.48%	6.48%
Minimum diode capacitance ratio	-	-	1.55	1.55	1.55
Nominal diode capacitance	-	-	5.4 pF	5.4 pF	5.4 pF
Diode component materials	-	-	SILICON	SILICON	SILICON
Diode type	-	-	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	-	-	R-XBCC-N2	R-PDSO-G2	R-PDSO-F2
Number of components	-	-	1	1	1
Number of terminals	-	-	2	2	2
Package body material	-	-	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	-	7 V	7 V	7 V
surface mount	-	-	YES	YES	YES
Terminal form	-	-	NO LEAD	GULL WING	FLAT
Terminal location	-	-	BOTTOM	DUAL	DUAL
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Varactor Diode Classification	-	-	HYPERABRUPT	HYPERABRUPT	HYPERABRUPT
Base Number Matches	-	-	1	1	1
