BC807-16W

Description
PNP SURFACE MOUNT TRANSISTOR
CategoryDiscrete semiconductor    The transistor
File Size109KB,11 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BC807-16W Overview

PNP SURFACE MOUNT TRANSISTOR

BC807-16W Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerInfineon
package instructionROHS COMPLIANT PACKAGE-3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum collector current (IC)0.5 A
Collector-emitter maximum voltage45 V
ConfigurationSINGLE
Minimum DC current gain (hFE)100
JESD-30 codeR-PDSO-G3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Maximum power dissipation(Abs)0.2 W
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
Base Number Matches1

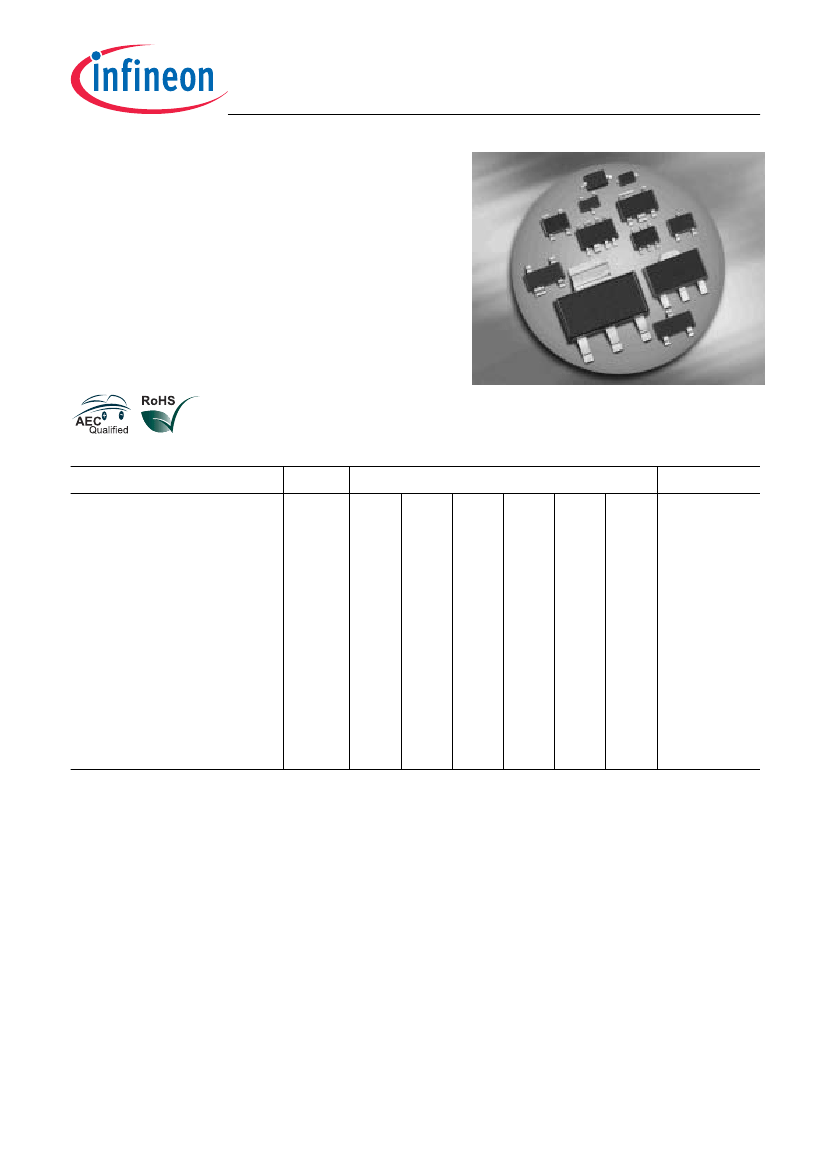

BC807.../BC808...
PNP Silicon AF Transistor
For general AF applications
High collector current
High current gain
Low collector-emitter saturation voltage
Complementary type:
BC817.../W, BC818.../W (NPN)
Pb-free (RoHS compliant) package
1)
Qualified according AEC Q101
Type
BC807-16
BC807-16W
BC807-25
BC807-25W
BC807-40
BC807-40W
BC808-25
BC808-25W
BC808-40
BC808-40W
1
Pb-containing
Marking
5As
5As
5Bs
5Bs
5Cs
5Cs
5Fs
5Fs
5Gs
5Gs
Pin Configuration
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
1=B 2=E 3=C -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Package
SOT23
SOT323
SOT23
SOT323
SOT23
SOT323
SOT23
SOT323
SOT23
SOT323
package may be available upon special request
1
2007-06-08
