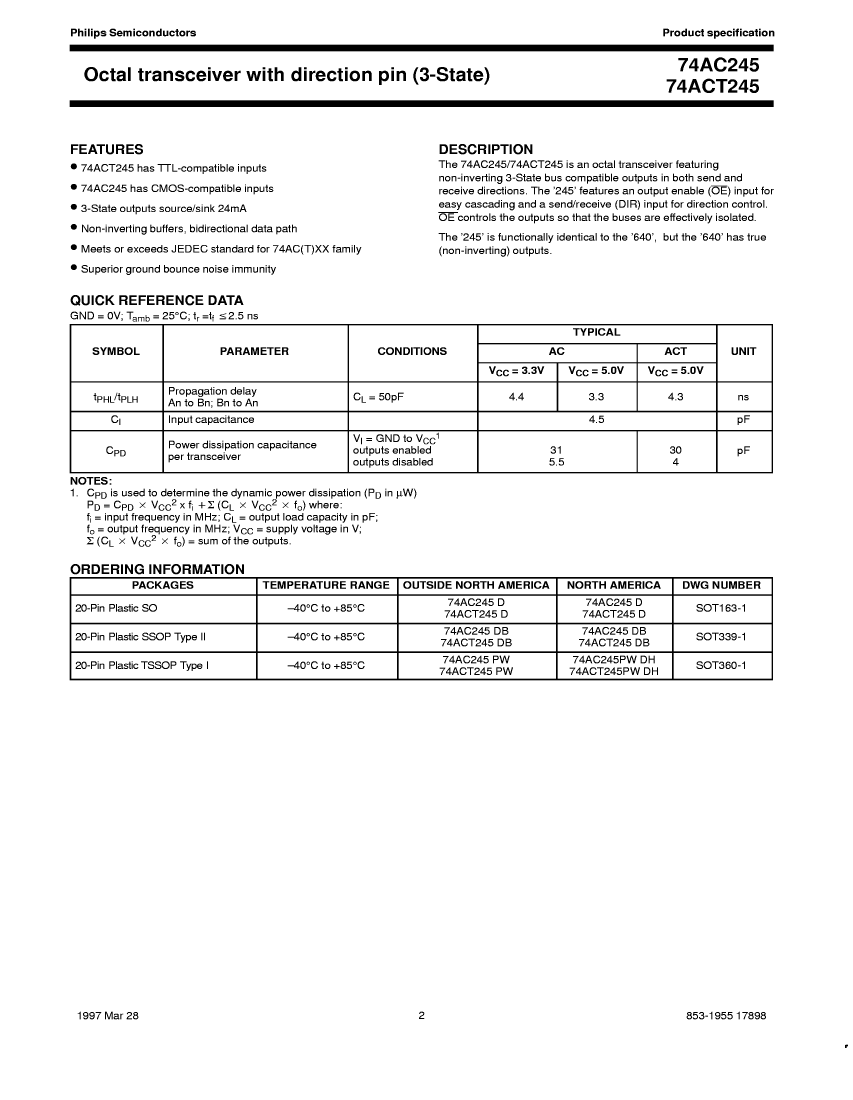

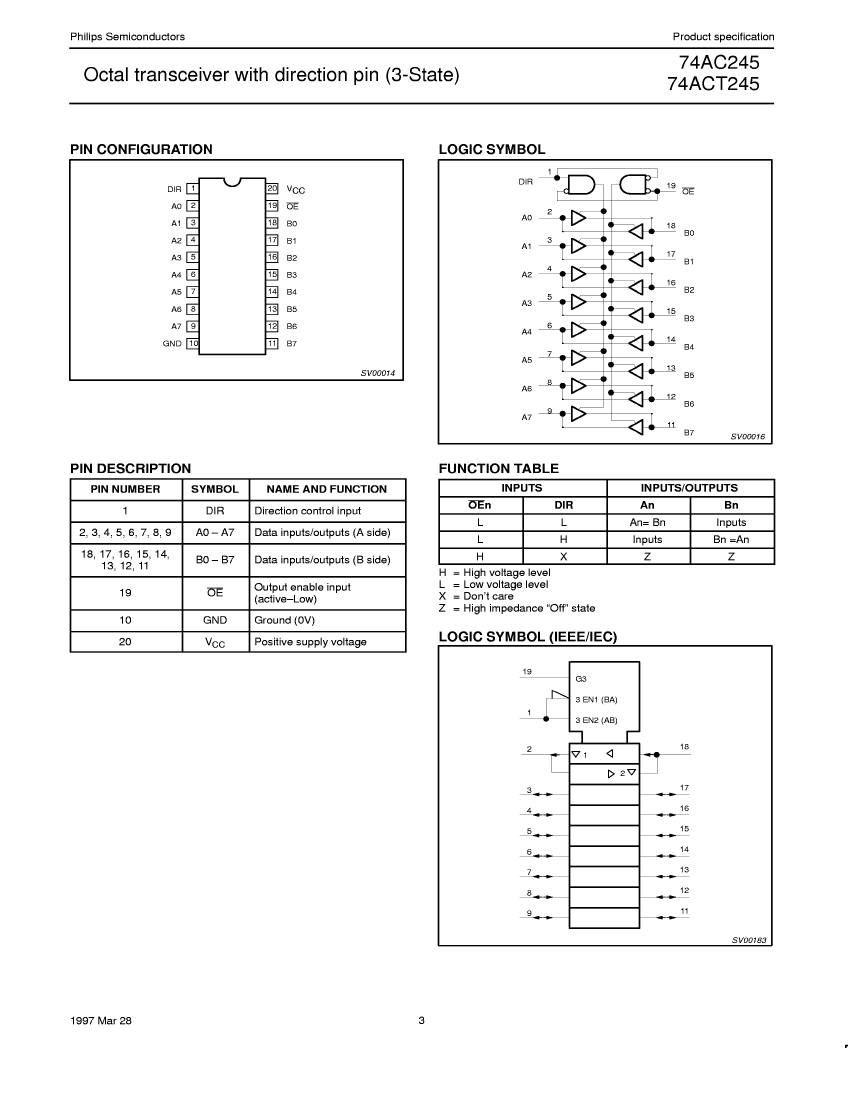

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20,

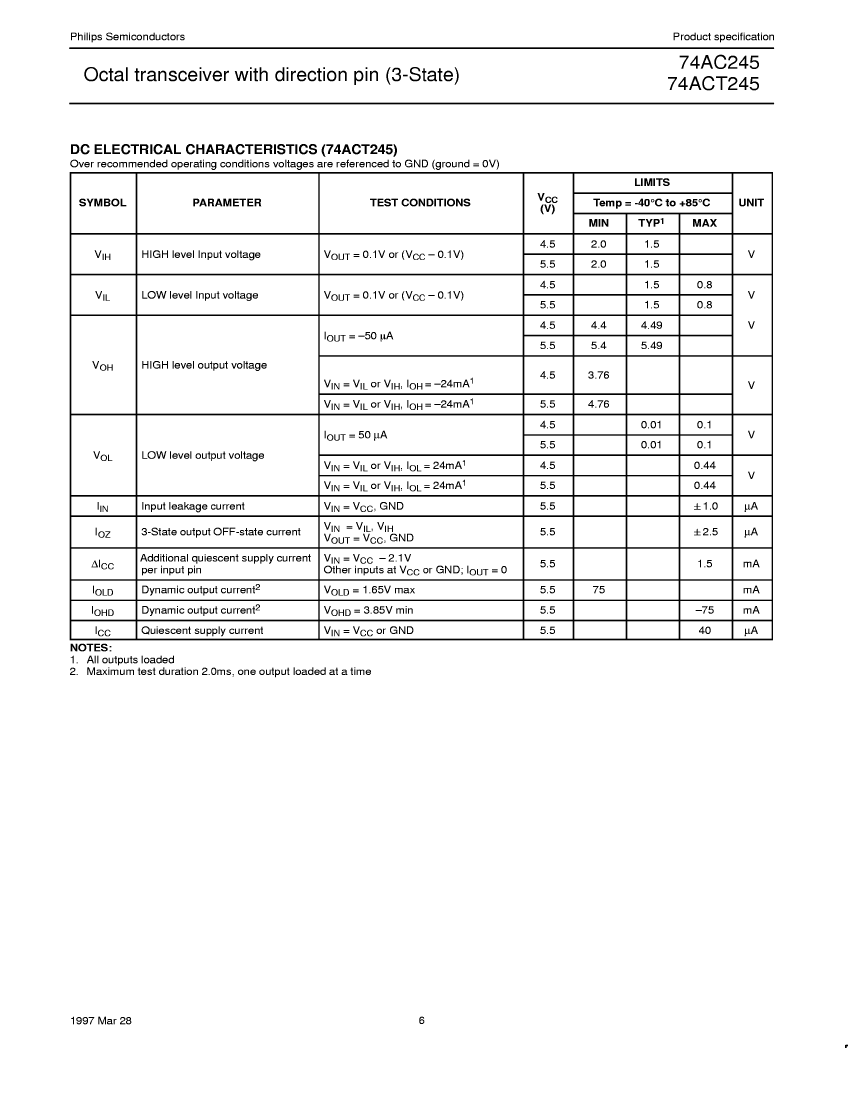

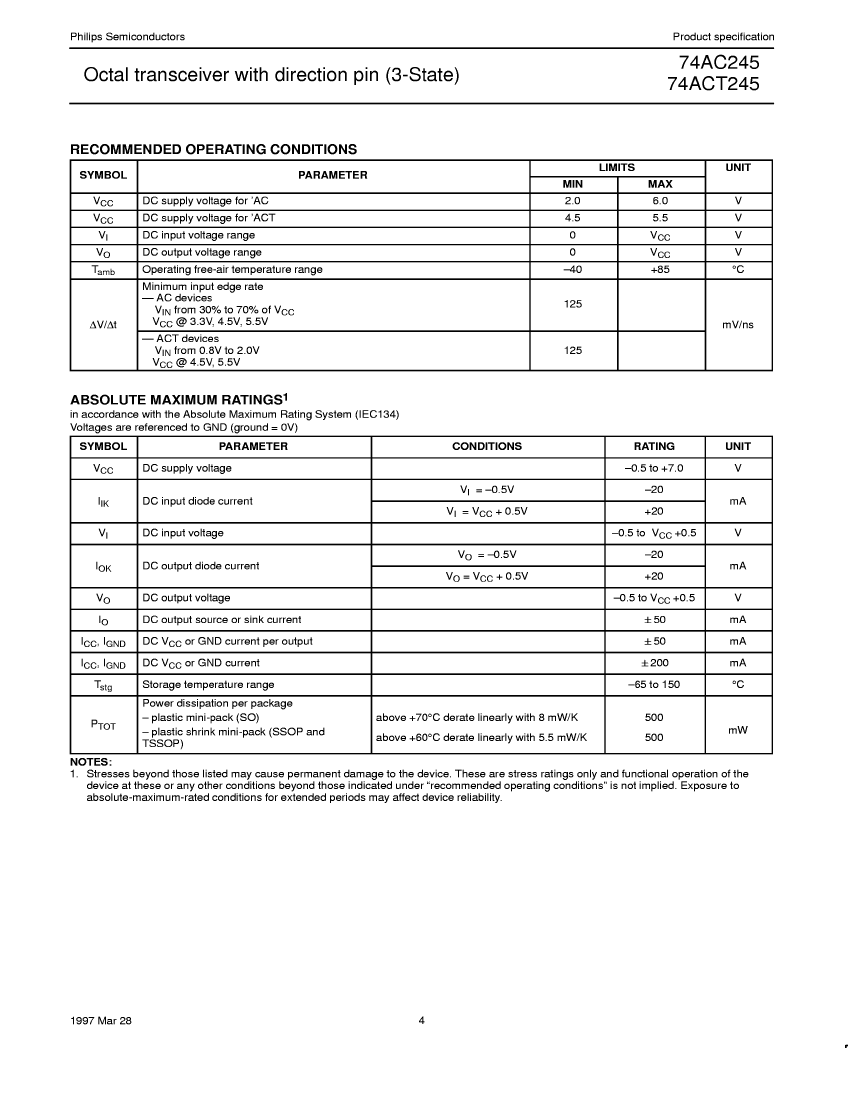

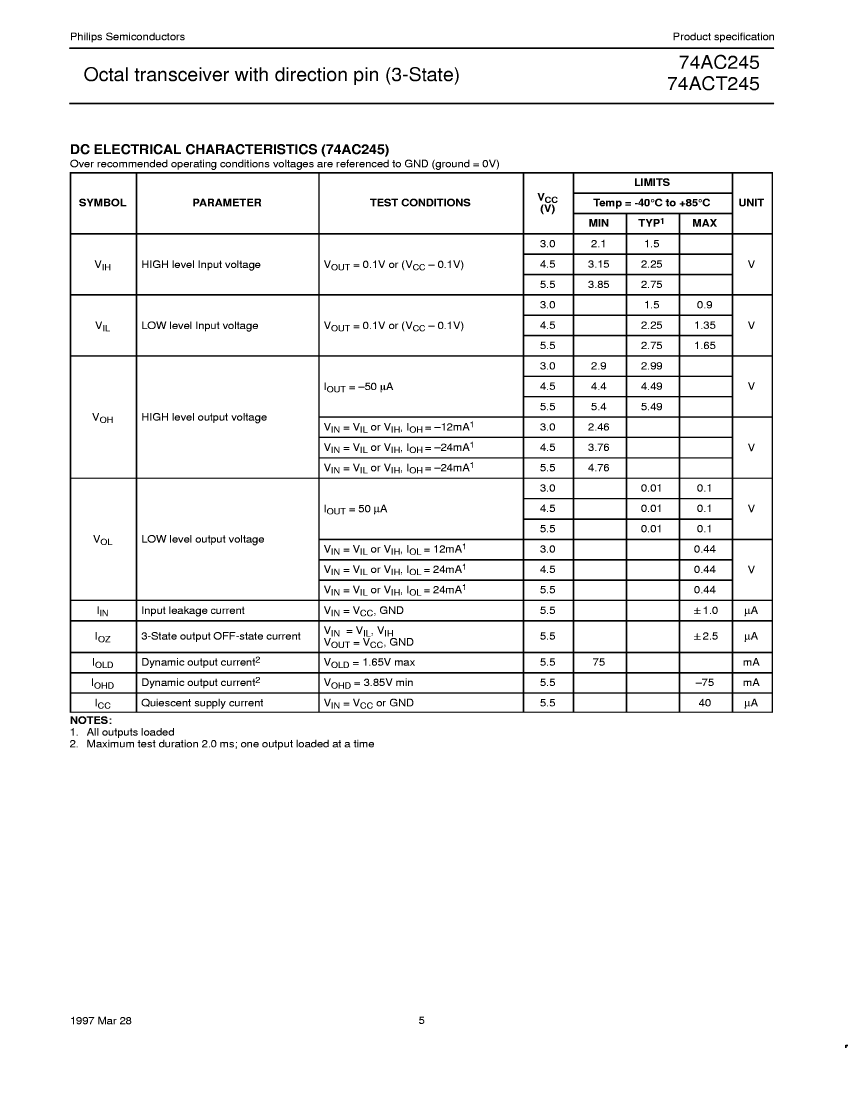

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | SSOP, SSOP20,.3 |
| Reach Compliance Code | unknown |
| Control type | COMMON CONTROL |
| Counting direction | BIDIRECTIONAL |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| MaximumI(ol) | 0.024 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Encapsulate equivalent code | SSOP20,.3 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| power supply | 3.3/5 V |
| Prop。Delay @ Nom-Sup | 9 ns |
| Certification status | Not Qualified |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| 74AC245DB | 74ACT245D | 74AC245D | 74ACT245PW | 74AC245PW | 74ACT245DB | |
|---|---|---|---|---|---|---|
| Description | Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20, | Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20, | Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20, | Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20 | Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20, | Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | SSOP, SSOP20,.3 | SOP, SOP20,.4 | SOP, SOP20,.4 | TSSOP, TSSOP20,.25 | TSSOP, TSSOP20,.25 | SSOP, SSOP20,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Control type | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| MaximumI(ol) | 0.024 A | 0.024 A | 0.024 A | 0.024 A | 0.024 A | 0.024 A |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SOP | SOP | TSSOP | TSSOP | SSOP |
| Encapsulate equivalent code | SSOP20,.3 | SOP20,.4 | SOP20,.4 | TSSOP20,.25 | TSSOP20,.25 | SSOP20,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH |
| power supply | 3.3/5 V | 5 V | 3.3/5 V | 5 V | 3.3/5 V | 5 V |
| Prop。Delay @ Nom-Sup | 9 ns | 8 ns | 9 ns | 8 ns | 9 ns | 8 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.635 mm | 1.27 mm | 1.27 mm | 0.635 mm | 0.635 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | - | Philips Semiconductors (NXP Semiconductors N.V.) |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - |
