SPL5028-150M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SPL5028-150M

SPL5028-150M: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, SMD, 7360; CategoryPassive components inductor; File Size18KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

SPL5028-150M Overview

General Purpose Inductor, 15uH, 20%, 1 Element, SMD, 7360

SPL5028-150M Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
package instruction	7360
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	7360
structure	Flat Top
DC Resistance	0.036 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SPL5028
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	7.366 mm
Package length	18.542 mm
Package form	SMT
Package width	15.24 mm
method of packing	TR
Maximum rated current	8 A
series	SPL5028
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

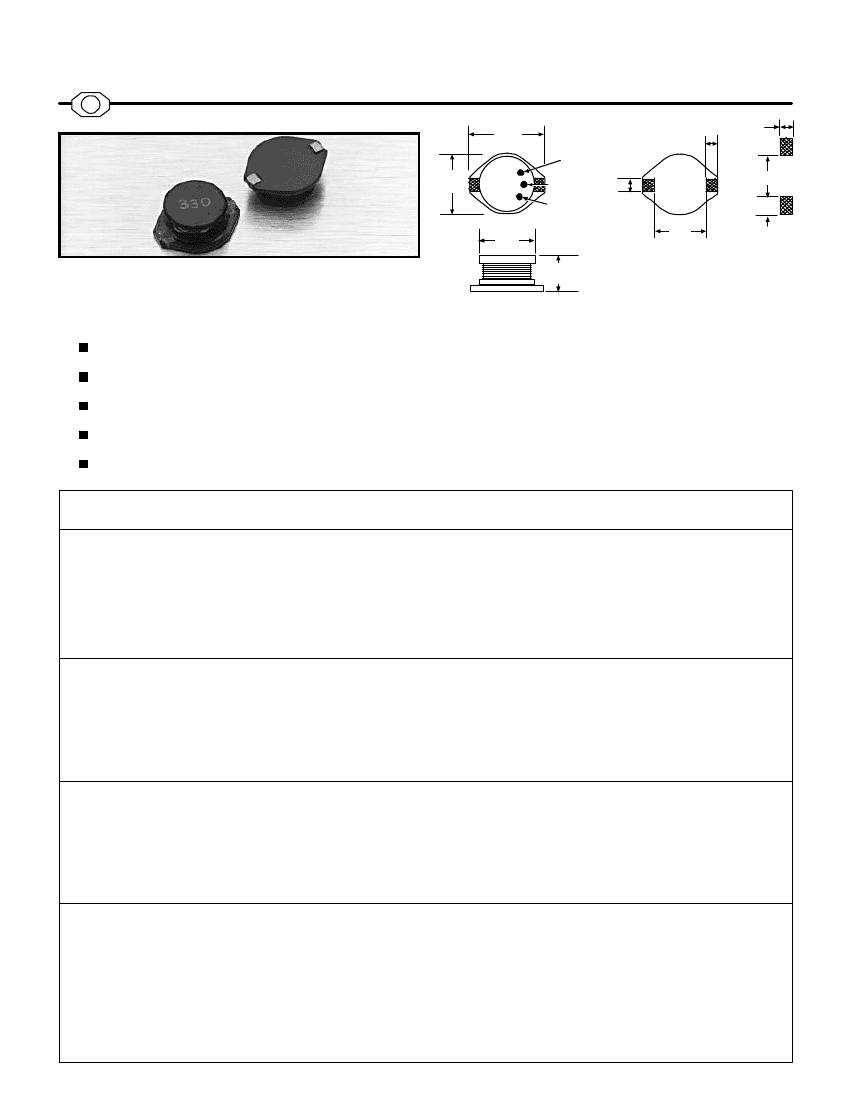

SPL5028

Surface Mount

Power Inductor

.730

max

.600

max

1st

Signif icant

Dig it

2nd

Signif icant

Dig it

Multiplier

.490

.290

max

.100

.490

.500

.115

Land

Patter n

APPLIC

ATIONS

DC/DC converters

Computers

Telecommunications Equipment

Filters

LCD Display

PART

NUMBER

INDUCT ANCE

(µH)*+/-20%

(1)

1.0

2.2

3.3

5.6

100

150

220

330

470

680

1000

CHARACTERISTICS

Flat Top for surface mounting.

High Current SMD, up to 20 ADC.

FLAMABILTY: To UL94V0.

TEMPERATURE RANGE: -40°C to 85°C.

SOLDERABILITY: Excellent for IR soldering.

PACKAGING: Tape and Reel only.

Notes:

(1) Inductance tested a t 100Khz, 0.10VRMS.

(2) Based on 10% dr op in initial inductance.

(3) DCR measured on milliohm meter .

DC RESISTANCE

OHMS

MAXIMUM (Ω) (3)

0.011

0.014

0.016

0.022

0.032

0.036

0.047

0.066

0.087

0.130

0.190

0.250

0.380

0.560

0.850

1.200

1.800

RATED

CURRENT

(AMPS DC) (2)

20.00

16.00

14.00

12.00

10.00

8.00

7.00

5.50

4.50

3.50

3.00

2.60

2.40

1.90

1.40

1.20

1.00

SPL5028-1R0M

SPL5028-2R2M

SPL5028-3R3M

SPL5028-5R6M

SPL5028-100M

SPL5028-150M

SPL5028-220M

SPL5028-330M

SPL5028-470M

SPL5028-680M

SPL5028-101M

SPL5028-151M

SPL5028-221M

SPL5028-331M

SPL5028-471M

SPL5028-681M

SPL5028-102M
