SML94-222K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SML94-222K

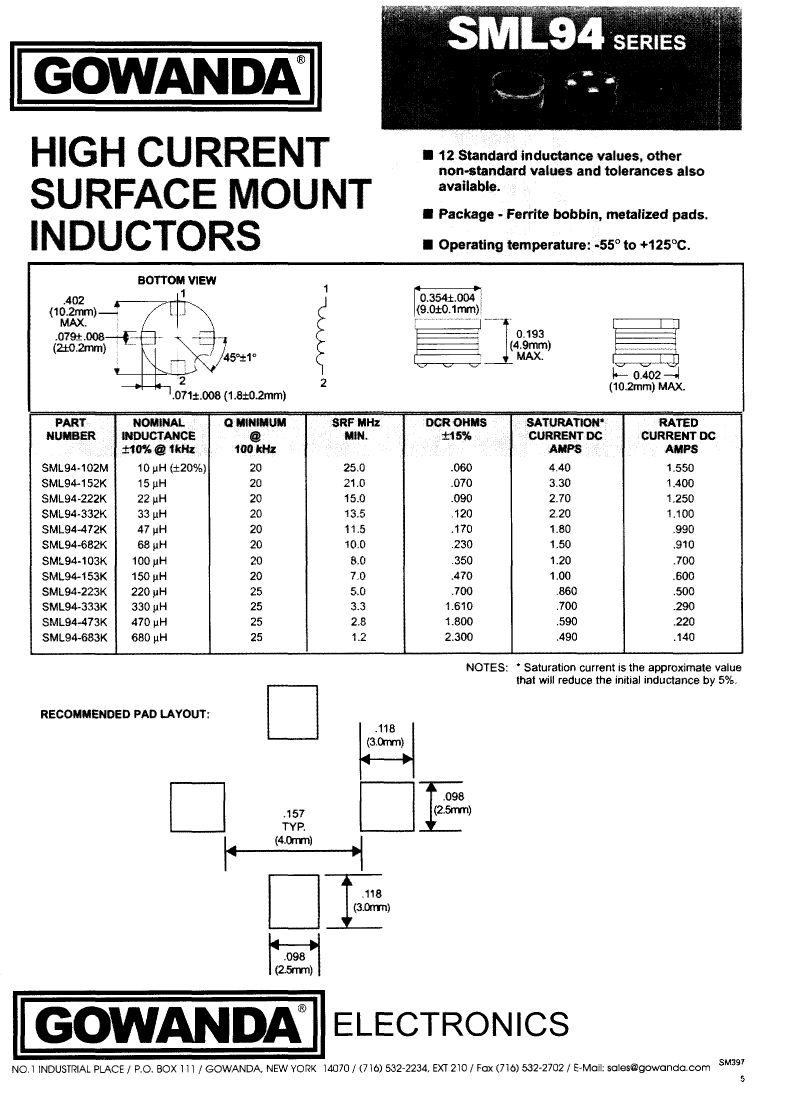

SML94-222K: DescriptionGeneral Purpose Inductor, 22uH, 10%, 1 Element, SMD; CategoryPassive components inductor; File Size98KB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric Compare View All

SML94-222K Overview

General Purpose Inductor, 22uH, 10%, 1 Element, SMD

SML94-222K Parametric

Parameter Name	Attribute value
Maker	Gowanda Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.09 Ω
Nominal inductance(L)	22 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	20
Maximum rated current	1.25 A
self resonant frequency	15 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
special characteristics	Q MEASURED AT 0.1 MHz
surface mount	YES
Terminal location	ON CIRCLE
Terminal shape	NO LEAD
Test frequency	0.001 MHz
Tolerance	10%

Preview

Download Datasheet

View All

SML94-222K Related Products

	SML94-222K	SML94-333K	SML94-683K	SML94-332K	SML94-153K	SML94-102M	SML94-223K	SML94-103K	SML94-682K
Description	General Purpose Inductor, 22uH, 10%, 1 Element, SMD	General Purpose Inductor, 330uH, 10%, 1 Element, SMD	General Purpose Inductor, 680uH, 10%, 1 Element, SMD	General Purpose Inductor, 33uH, 10%, 1 Element, SMD	General Purpose Inductor, 150uH, 10%, 1 Element, SMD	General Purpose Inductor, 10uH, 20%, 1 Element, SMD	General Purpose Inductor, 220uH, 10%, 1 Element, SMD	General Purpose Inductor, 100uH, 10%, 1 Element, SMD	General Purpose Inductor, 68uH, 10%, 1 Element, SMD
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.09 Ω	1.61 Ω	2.3 Ω	0.12 Ω	0.47 Ω	0.06 Ω	0.7 Ω	0.35 Ω	0.23 Ω
Nominal inductance(L)	22 µH	330 µH	680 µH	33 µH	150 µH	10 µH	220 µH	100 µH	68 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Minimum quality factor (at nominal inductance)	20	25	25	20	20	20	25	20	20
Maximum rated current	1.25 A	0.29 A	0.14 A	1.1 A	0.6 A	1.55 A	0.5 A	0.7 A	0.91 A
self resonant frequency	15 MHz	3.3 MHz	1.2 MHz	13.5 MHz	7 MHz	25 MHz	5 MHz	8 MHz	10 MHz
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO
special characteristics	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz	Q MEASURED AT 0.1 MHz
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE
Terminal shape	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	10%	10%	10%	10%	10%	20%	10%	10%	10%
Maker	Gowanda Electronics	-	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics	Gowanda Electronics
