MLX90290-LUA-AAA-612-CR. This order code will give you a 5V UA part
with leads separated by 2.54mm pitch on Carton Tape. The other settings a
sensitivity of 25mV/mT and a thermal drift of
2000 ppm/°C
Ordering example:
3901090290
Rev 001
Page 1 of 14
Data Sheet
October 2014
MLX90290
High Speed Programmed Linear Hall IC
4.
Functional Diagram
VDD
Temperature
compensation
Voltage
Regulator
VDD
Switched
Hall Plate
Demodulator
OUT
Amplifier
Low Pass
Filter
Analog
Output
Sensitivity
Trim
Control
Logic
Offset
Trim
EEPROM
GND

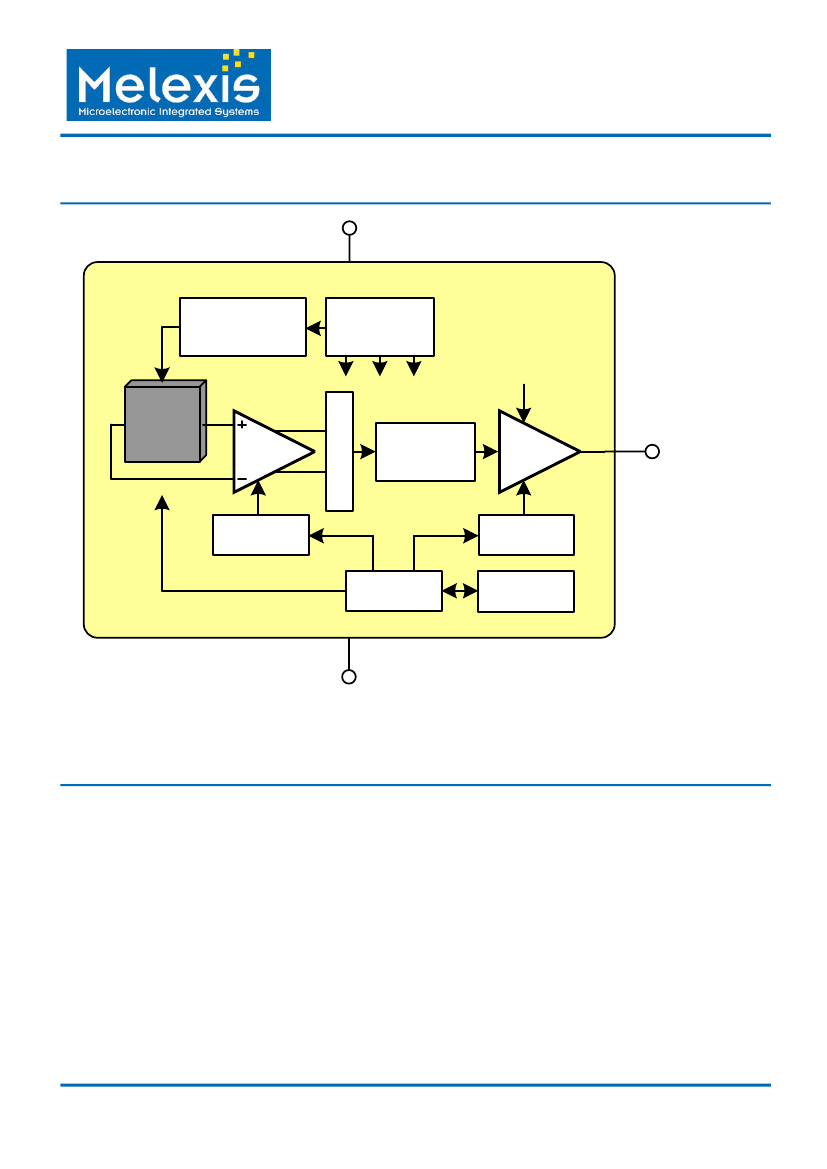

Figure 1 Functional Block Diagram MLX90290
5.
General Description
The device is offered in a RoHS compliant Thin Small
Outline Transistor (TSOT) for surface mount and UA
(TO-92) for Pin Through Hole mount.
The Melexis MLX90290 is a Second Generation linear
Hall-effect sensor designed in mixed signal CMOS
technology.
The device integrates a voltage regulator, Hall sensor
with advanced offset cancellation system and an
analog output driver, all in a single package.
The Output voltage is proportional to the applied
magnetic field and to the chip supply voltage
(ratiometric).
The Output Offset Level (Quiescent Level) at zero
magnetic field equals to 50% of the chip supply voltage.
3901090290
Rev 001
Page 2 of 14
Data Sheet
October 2014
MLX90290
High Speed Programmed Linear Hall IC
6.
Table of Contents
1.
Features and Benefits ........................................................................................................................................................................... 1
Ordering Information ............................................................................................................................................................................. 1
General Description .............................................................................................................................................................................. 2
6.
Table of Contents .................................................................................................................................................................................. 3
7.
Glossary of Terms ................................................................................................................................................................................. 4
8.
Absolute Maximum Ratings .................................................................................................................................................................. 4
9.
Pin Definitions and Descriptions ........................................................................................................................................................... 5
10.
General Electrical Specifications ...................................................................................................................................................... 5
11.
Sensor Specific Specifications ......................................................................................................................................................... 6
12.
Detailed General Description............................................................................................................................................................ 7
Unique Features ............................................................................................................................................................................... 8
14.
Application Information ..................................................................................................................................................................... 9
Application Circuit for Harsh and Noisy Environment .................................................................................................................. 9
15.
Standard information regarding manufacturability of Melexis products with different soldering processes ................................... 10
Package Information –Example from MLX90290 ........................................................................................................................... 11
17.1
UA (TO92-3L) Package Information .......................................................................................................................................... 11
17.1.1
Trim and form with 2.54mm distance between leads; only available on tape ................................................................... 12
Contact Information ........................................................................................................................................................................ 14
3901090290
Rev 001
Page 3 of 14
Data Sheet
October 2014
MLX90290
High Speed Programmed Linear Hall IC
7.
Glossary of Terms
Units of magnetic flux density: 1mT = 10 Gauss
Electro-Static Discharge
Thin Small Outline Transistor package
Power Supply Rejection Ratio
Electronic Control Unit
Surface Mount Devices
Through Hole Device
Restriction of Hazardous Substances
Tesla [T]
ESD
TSOT
PSRR
ECU
SMD
THD
RoHS
8.
Absolute Maximum Ratings
Parameter
Symbol
Value
Units
Supply Voltage
Supply Current
(1)
Output Voltage
Output Current
(1)
Operating Temperature Range
Maximum Junction Temperature
Storage Temperature Range
ESD Sensitivity (Human Body Model)
(2)
ESD Sensitivity (Charged Device
Model)
(3)
(AEC Q100 002)
Maximum Flux Density
Table 1 Absolute Maximum Ratings
•
•
•
V
DD
I
DD
V
OUT
I
OUT
T
A
T
J
T
S
ESD
HBM
ESD
CDM
-0.3 to 7
±20
-0.3 to V
DD
+0.3
±20
-40 to 150
165
-55 to 165
4000
500
V
mA
V
mA
°C
°C
°C
V
V
B
> 1000
mT
Note 1:
Including the current flowing through the protection structure. Maximum power dissipation should be also considered
Note 2:
Human Body Model according AEC-Q100-002 standard
Note 3:
Charged Device Model according AEC-Q100-011 standard
Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute maximum
rated conditions for extended periods may affect device reliability.
3901090290
Rev 001
Page 4 of 14
Data Sheet
October 2014
MLX90290
High Speed Programmed Linear Hall IC
9.
SE Pin
№
Pin Definitions and Descriptions
UA Pin
№
Name
Type
Function
1
2
3
1
VDD
OUT
GND
Supply
I/O
Ground
Supply
Voltage
Analog
Output
Ground
UA package
SE package
3
2

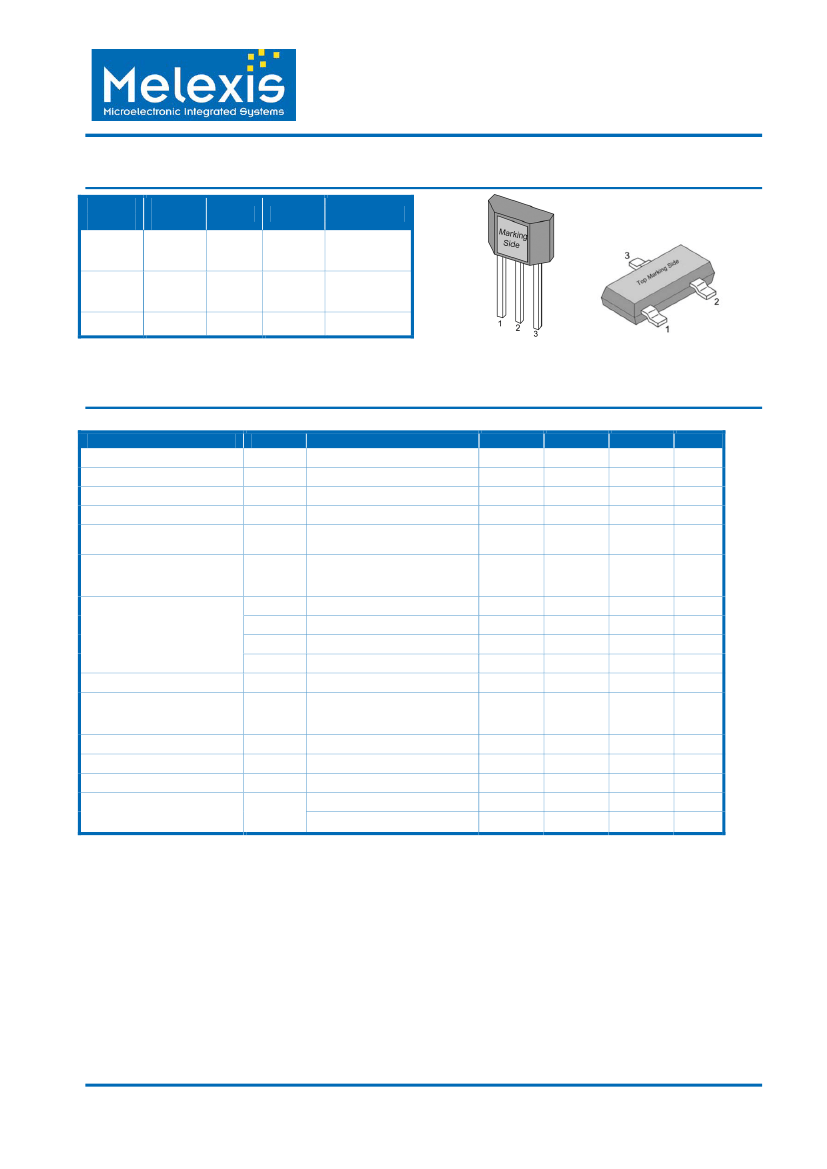

Table 2 Pin Definitions and Descriptions
10.
General Electrical Specifications
Symbol
V
DD
I
DD
V
POR
I
OUT
R
L
C
L
V
OSHI
OUT
High Impedance
Connected between OUT and
GND
Connected between OUT and
GND
I
OUT
= -1mA, B=1.1*(V
DD
- V
OQ
)/S
I
OUT
= -0.1mA, B=1.1*(V
DD
- V
OQ
)/S
I
OUT
=1mA, B=1.1*(-V
OQ
)/S
I
OUT
=0.1mA, B=1.1*(-V
OQ
)/S
I
OUT
= ±1mA
V
DD
=V
DDNOM
(5)
, B=0.4/S
REL
,
dV
DD
/dt>2V/us
T
SAMPLE
=1/F
CHOP
From 80kHz to 200kHz
TSOT-3L
3-SIP-UA / TO92-UA
Test Conditions
Operating
Min
3.15
3
-
-1
5
0
V
DD
- 0.25
V
DD
- 0.1
0
0
-
-
-
-
20
-
-
Typ
(1)
-
5
2.7
-
-
10
-
-
-
-
1.5
40
900
1.1
-
230
180
Max
5.5
8
2.95
1
Infinite
100 with
R
S
=50Ω
V
DD
V
DD
0.25
0.1
5
70
-
-
-
-
-
Units
V
mA
V
mA
kΩ
nF
V
V
V
V
Ω
µs
kHz
us
dB
°C/W
°C/W
Operating Characteristics, V
DD
= 3.15V to 5.5V, T
A
= -40°C to 150°C, C1 ≥ 0.1μF (unless otherwise specified)
Characteristics
Supply Voltage
Supply Current
Reset Voltage
Load Current Range
Load Resistance Range
Load Capacitor Range
(2)
Output Saturation Voltage
Output Resistance
Power-On Time
(3,4)
Chopping Frequency
Sample / Update Period
Power Supply Rejection Ratio
(2)
Package Thermal Resistance
Junction to Ambient
V
OSHI
(2)
V
OSLO
V
OSLO
(2)
R
OUT
t
ON
F
CHOP
T
SAMPLE
PSRR
R
THJA
Table 3: General Electrical Specifications
Note 1:
Typical values are defined at T
A
= 25ºC and V
DD
= V
DDNOM
Note 2:
Guaranteed by design and characterization
Note 3:
The Power-On Time represents the time from reaching V
DD
= 3.15V to VOUT settled within ±5% from its final value
Note 4:
Power-On Slew Rate is not critical for the proper device start-up
