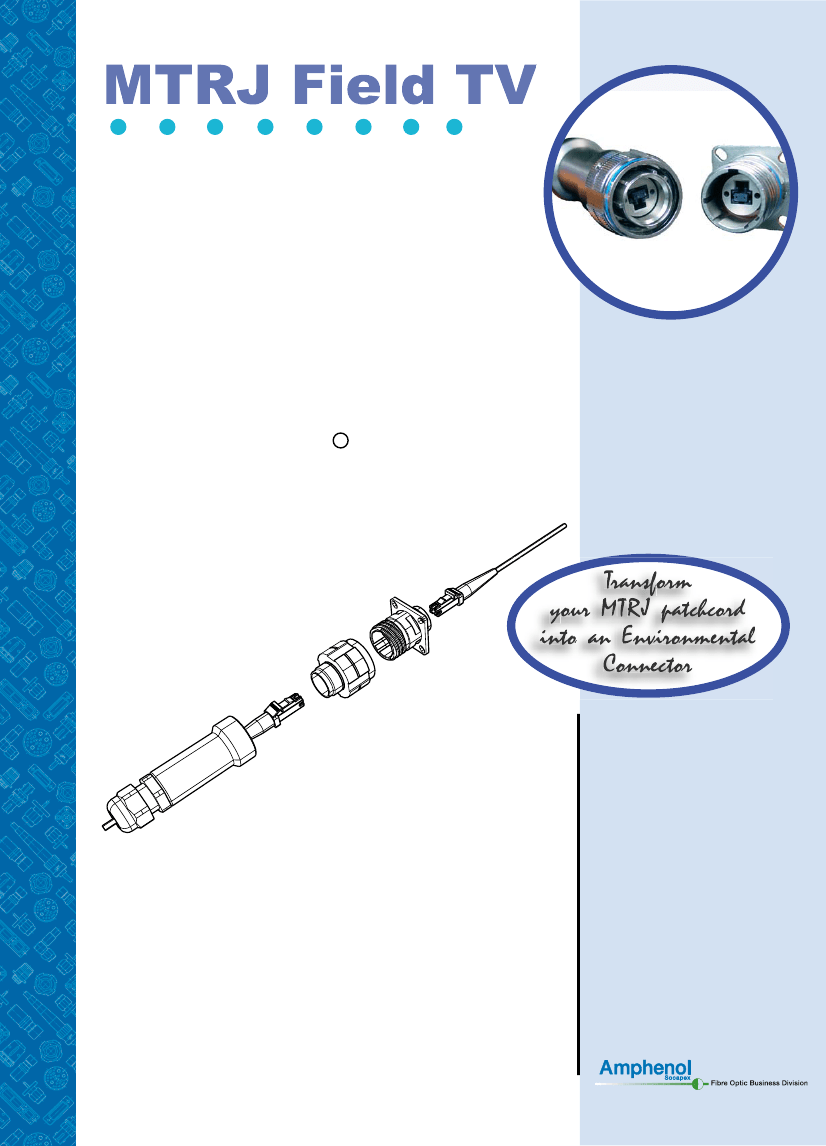

MTRJ Field TV
Ethernet Connection System
For Harsh Environment
The MTRJ Field offers an easy system to
upgrade from a standard to an environmental MTRJ.
- Sealed against fluids and dust (IP67)
- Shock, Vibration proof,
- No cabling operation in field and no tools required
for installation
With the patented RJStop
R
system you can use a
standard MTRJ patchcord in a metallic plug which
will protect it from shocks, dust and fluids.
No hazardous field cabling
Applications
Data acquisition and
transmission in Harsh
Environment
- Railways
- Radars
- Shelters
- Battlefield
Communication systems
- Navy
This metallic plug is connected into a receptacle,
using a Tri Start Thread coupling mechanism
(MIL-DTL-38999 series III type) with anti-decoupling
device for high vibrations.
Optical performance :
- Number of Channel : 1/2/4
- typical Insertion Loss : 0,5db in MM
- Durability 500 mating/unmating cycles (changes for
<0,2 db
Amphenol Socapex
Promenade de l'arve - B.P.29 - 74311 THYEZ - FRANCE - Tel : 33 (0) 4 50 89 28 00 - Fax : 33 (0) 4 50 89 28 23
Specification are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. MTRJ Field TV. February 2003. Printed in France by Amphenol Socapex.

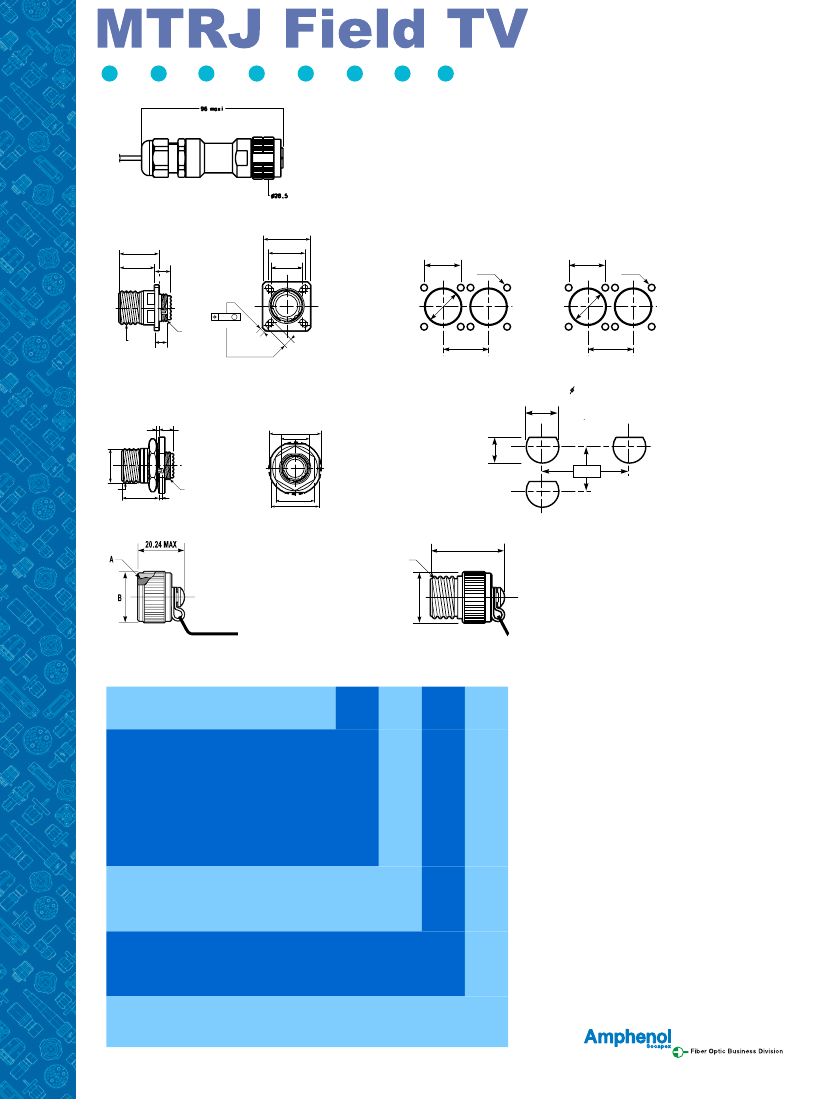

MTRJ Field TV
Plug
Square Flange Receptacle
Front Mount
22.99
0
20.83
+0.15
Rear Mount
28.58
2 PLACES
23.01
2 PLACES
20.62
2 PLACES
Panel Drilling
Square flange receptacle
Square flange receptacle
rear panel mounting
front panel mounting
23.01
20.62
4 ¯ 3.25
23.01
20.62
4 ¯ 3.25
11.91
¯.
87
50
M18x1-6g
.8750
3.89
0.13
M
4 PLACES
31.50
4.9
3
¯1
9.0
31.50
3.25
Jam Nut Receptacle
Front Mount
Rear Mount
Panel Drilling
Jam nut receptacle
rear panel mounting
¯ é20.88
PANEL THICKNESS
1,57 MIN, 3,18 MAX
N MAX Size 9/11 = 9,45
Size 13/25 = 9,37
38.38
25.28
24.26
24.26
36.00
B
K REF
Size 13 = 22,30
V
2,31 MAX
30.17
34.93
Protective caps
Protective cap for
receptacles (metallic
chain or nylon cord)
29.62 MAX
A
Protective cap for
plug (metallic chain
or nylon cord)
N
How to order : MTRJ Field tv
Serie :
MTRJ Field TV
MTRJF TV
6M
C
G
N
Shell type
:
Plug with metal backshell, plastic PG clamp
6
6M
2
2PE
:
Plug with metal backshell and PG clamp
:
Square flange receptacle
:
Sq. flange, metal backshell and plastic PG clamp
2PEM :
Sq. flange, metal backshell and PG clamp
:
Jam nut receptacle
7
7PE
:
Jam nut, metal backshell and plastic PG clamp
7PEM :
Jam nut, metal backshell and PG clamp
Cable type
:
Ruggedized cable
!
2,8mm, 2 fibers 900∀m
C
D
S
:
Duplex cable, 2 fibers
!
1,6mm
:
Scindex cable, 2 fibers
!
1,6mm
Shell finish
:
Nickel plated
N
G
B
:
Olive drab cadmium plated
:
Bronze
Polarization
:
Normal
N
A/B/C/D/E
Amphenol Socapex
Promenade de l'arve - B.P.29 - 74311 THYEZ - FRANCE - Tel : 33 (0) 4 50 89 28 00 - Fax : 33 (0) 4 50 89 28 23
Specification are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. MTRJ Field TV. February 2003. Printed in France by Amphenol Socapex.
