IFX25001
Low Dropout Voltage Regulator
Data Sheet
Rev. 1.02, 2010-05-20
Standard Power
Low Dropout Voltage Regulator
IFX25001
1
Features
•
•
•
•
•
•
•
•
•
•
Overview
Output Voltages: 2.5, 3.3, 5.0, 8.5, or 10.0 V
Output Current up to 400 mA
Low Current Consumption
Wide Input Voltage Range up to 45V
Low Dropout Voltage
Output Current Limitation
Reverse Polarity Protection
Overtemperature Shutdown
Wide Temperature Range, -40 °C to 125 °C
Green Product (RoHS compliant)

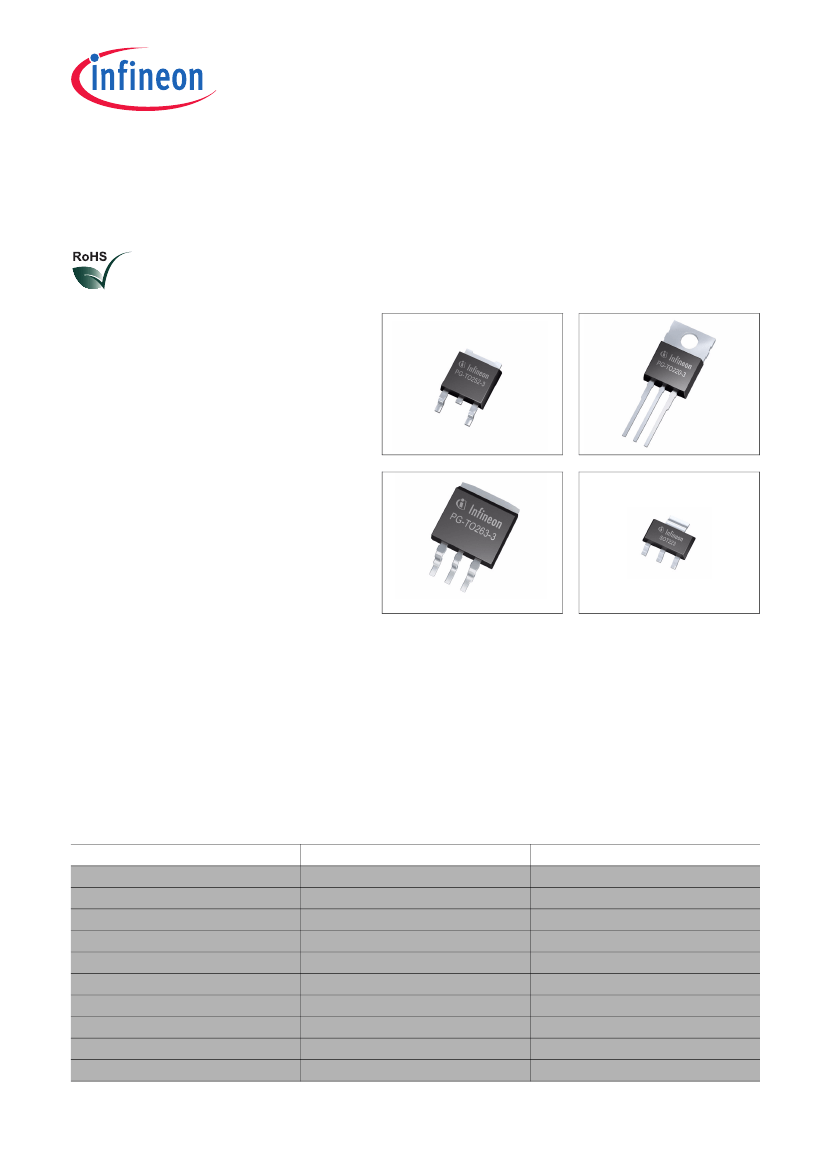

PG-TO252-3
PG-TO220-3
Applications
•
•
•
•
•
Manufacturing Automation
Appliances
HDTV Televisions
Game Consoles
Network Routers
PG-TO263-3
PG-SOT223-4
For automotive and transportation applications, please refer to the Infineon TLE and TLF voltage regulator series.
Description
The IFX25001 is a low dropout linear voltage regulator available in a 2.5, 3.3, 5.0, 8.5, or 10.0 V output. It is
capable of supplying continuous output current up to 400 mA. A wide input voltage range up to 45V enables the
IFX25001 to operate in a large variety of applications. The IFX25001 is also protected against overload, short
circuit and overtemperature conditions.
Type
IFX25001 ME V25
IFX25001 ME V33
IFX25001 TF V33
IFX25001 TS V50
IFX25001TF V50
IFX25001 TC V50
IFX25001 TS V85
IFX25001 TC V85
IFX25001 TS V10
IFX25001 TC V10
Data Sheet
Package
PG-SOT223-4
PG-SOT223-4
PG-TO252-3
PG-TO220-3
PG-TO252-3
PG-TO263-3
PG-TO220-3
PG-TO263-3
PG-TO220-3
PG-TO263-3
2
Marking
25001A
25001B
2500133
25001V50
2500150
25001V50
25001V85
25001V85
25001V10
25001V10
Rev. 1.02, 2010-05-20
IFX25001
Block Diagram
2
Block Diagram
Temperature
Sensor
Saturation
Control and
Protection
Circuit
Q
Control
Amplifier
Buffer
Ι
Bandgap
Reference
GND
AEB01959
Figure 1
Block Diagram
Data Sheet
3
Rev. 1.02, 2010-05-20
IFX25001
Pin Configuration
3
3.1
Pin Configuration
Pin Assignment PG-SOT223-4, PG-TO252-3, PG-TO263-3, and PG-TO220-3
Figure 2
Pin Configuration (top view)
3.2
4
Pin Definitions and Functions PG-SOT223-4, PG-TO252-3, PG-TO263-3, and
PG-TO220-3
Symbol Function
I
Input
connect Input pin to positive DC voltage source (e.g. battery);
a small filter capacitor connected close to the Input pin and GND is recommended
Ground
internally connected to heat slug pin
Output
connect a capacitor close to the Output pin and GND according to the values specified
in
“Functional Range” on Page 5
Heat Slug
internally connected to GND pin;
connect to heatsink to improve thermal performance
Pin No.
1
2
3
GND
Q
4 / Heat Slug
GND
Data Sheet
4
Rev. 1.02, 2010-05-20
IFX25001
General Product Characteristics
4
4.1
General Product Characteristics
Absolute Maximum Ratings
Absolute Maximum Ratings
1)
T
j
= -40 °C to 150 °C; all voltages with respect to ground, (unless otherwise specified)
Pos.
Input I
4.1.1
Output Q
4.1.2
4.1.3
4.1.4
Voltage
Junction temperature
Storage temperature
Voltage
Parameter
Symbol
Min.
Limit Values
Max.
45
40
150
150
V
V
°C
°C
–
–
–
–
Unit
Test Condition
V
I
V
Q
T
j
T
stg
-42
-1
-40
-50
Temperature
1) not subject to production test, specified by design
Note: Stresses above the ones listed here may cause permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
Note: Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” normal operating range. Protection functions are
not designed for continuous repetitive operation.
4.2
Pos.
4.2.1
Functional Range
Parameter
Input voltage
Symbol
Limit Values
Min.
Max.
40
V
IFX25001 ME V25
IFX25001 ME V33
IFX25001 TF V33
IFX25001 TS V50
IFX25001TF V50
IFX25001 TC V50
IFX25001 TS V85
IFX25001 TC V85
IFX25001 TS V10
IFX25001 TC V10
1)
2)
Unit
Remarks
V
I
4.7
4.2.2
V
I
5.5
40
V
4.2.3
4.2.4
4.2.5
4.2.6
4.2.7
Output Capacitor’s
Requirements for Stability
Junction temperature
V
I
V
I
C
Q
ESR(C
Q
)
T
j
9.0
10.5
22
–
-40
40
40
–
3
125
V
V
µF
Ω
°C
–
1) the minimum output capacitance requirement is applicable for a worst case capacitance tolerance of 30%
2) relevant ESR value at
f
= 10 kHz
Note: Within the functional or operating range, the IC operates as described in the circuit description. The electrical
characteristics are specified within the conditions given in the Electrical Characteristics table.
Data Sheet
5
Rev. 1.02, 2010-05-20
