Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IMSA100-G21S

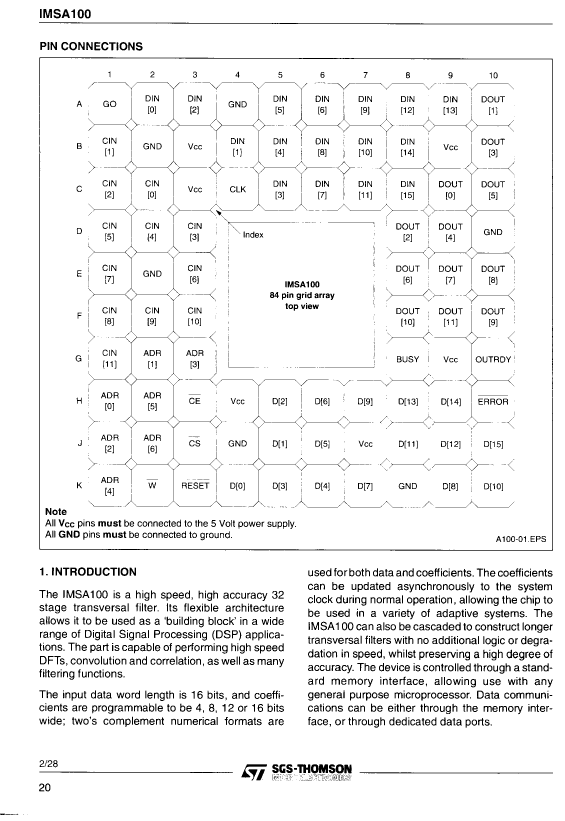

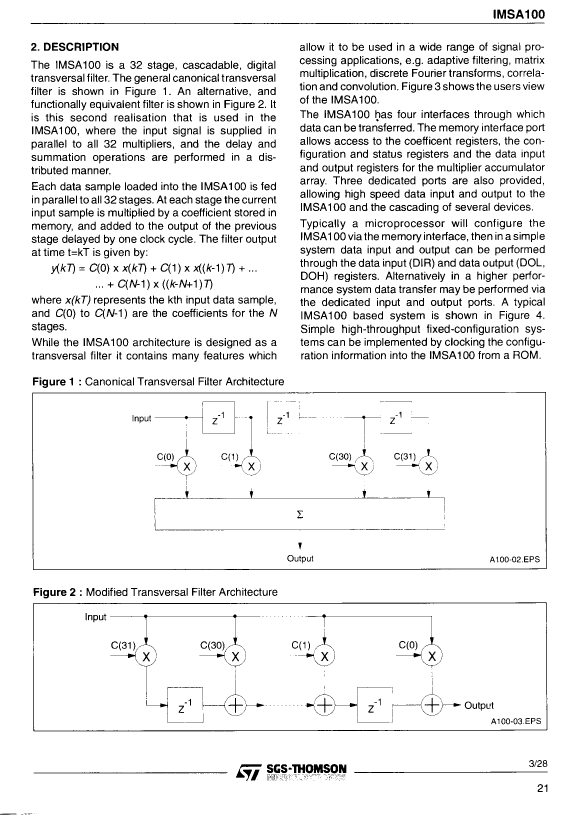

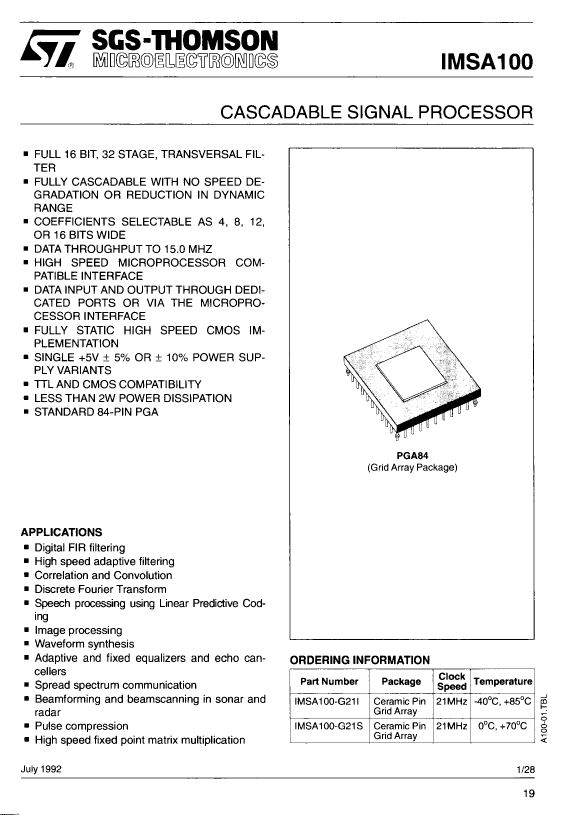

Preview

IMSA100-G21S: DescriptionIC,DIGITAL FILTER,CMOS,PGA,84PIN,CERAMIC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，28 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

IMSA100-G21S Overview

IC,DIGITAL FILTER,CMOS,PGA,84PIN,CERAMIC

IMSA100-G21S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	PGA, PGA84,10X10
Reach Compliance Code	not_compliant
JESD-30 code	S-XPGA-P84
JESD-609 code	e0
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA84,10X10
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	360 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER

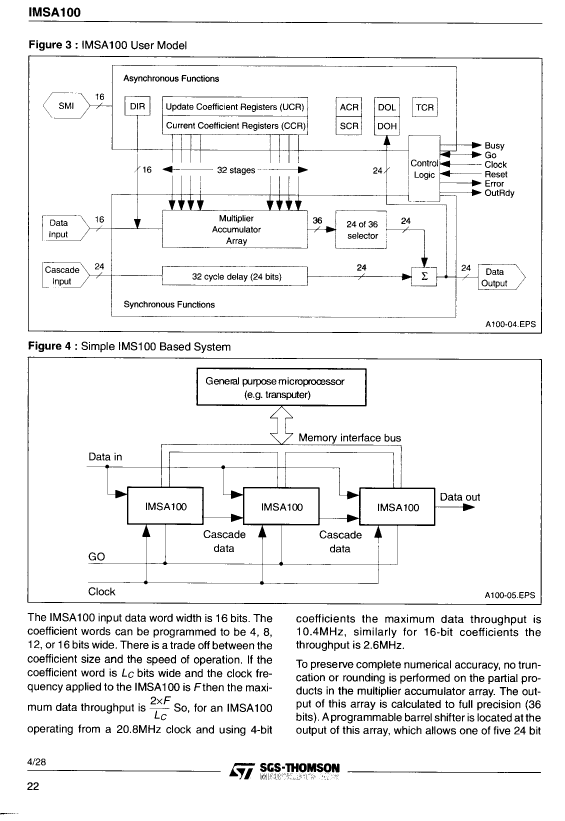

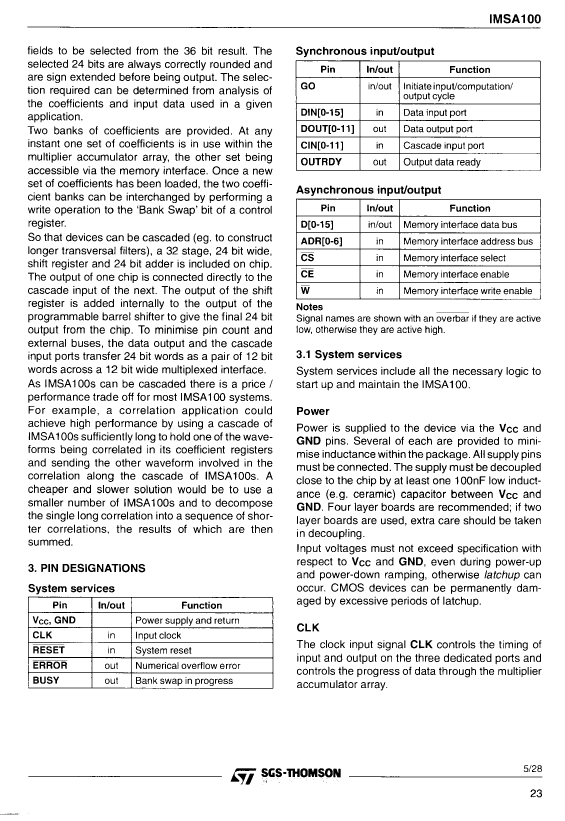

Preview

Download Datasheet

View All

IMSA100-G21S Related Products

	IMSA100-G21S	IMSA100-Q21M	IMSA100-G30S	IMSA100-G21I	IMSA100-G21M	IMSA100-G17M
Description	IC,DIGITAL FILTER,CMOS,PGA,84PIN,CERAMIC	IMSA100-Q21M	IC,DIGITAL FILTER,CMOS,PGA,84PIN,CERAMIC	IC,DIGITAL FILTER,CMOS,PGA,84PIN,CERAMIC	IMSA100-G21M	IMSA100-G17M
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	S-XPGA-P84	S-XQFP-F84	S-XPGA-P84	S-XPGA-P84	S-XPGA-P84	S-XPGA-P84
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	84	84	84	84	84	84
Maximum operating temperature	70 °C	125 °C	70 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-	-40 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	PGA	QFF	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA84,10X10	QFL84,1.2SQ	PGA84,10X10	PGA84,10X10	PGA84,10X10	PGA84,10X10
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	360 mA	360 mA	360 mA	360 mA	360 mA	360 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	FLAT	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
