NV48-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> NV48-24

NV48-24: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12; CategoryPower/power management The power supply circuit; File Size474KB，6 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

NV48-24 Overview

DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12

NV48-24 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Astrodyne TDI
Parts packaging code	MODULE
package instruction	, MODULE,12LEAD,2.2
Contacts	12
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XUFM-P12
JESD-609 code	e0
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	12
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	26.4 V
Minimum output voltage	21.6 V
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,12LEAD,2.2
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	120 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

N O V E R T E R

ANO ERTER

DC-DC Converters, 100-120 Watt Family

World’s Most Advanced Ultra High

Density DC-DC Converters

Up to 120 Watts

48 and 300 VDC Input

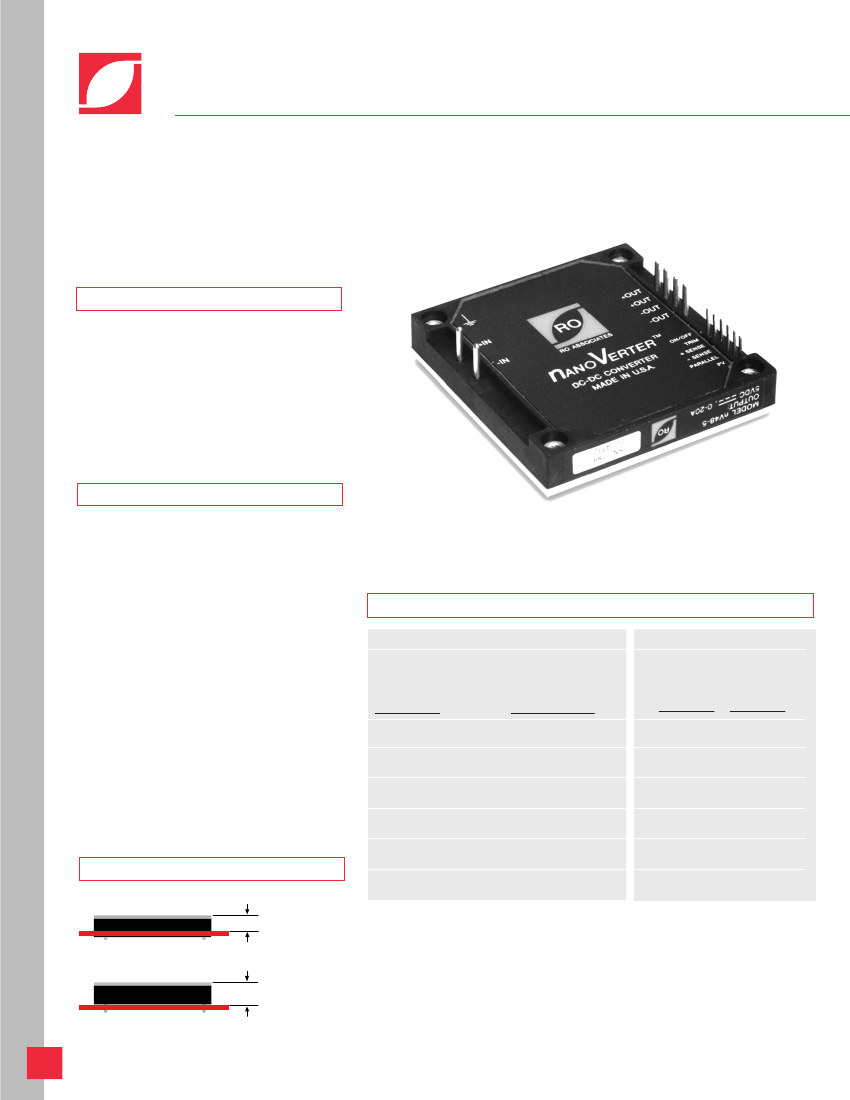

DESCRIPTION

NanoVerter modules are high density DC-

DC converters designed for use in tele-

com and other centralized modular and

distributed power applications. Two input

voltage ranges are available and all use

metal PC boards, planar transformers,

and surface mount construction to pro-

duce up to 120 watts in a tiny package.

Evaluation Boards Available

F E AT U R E S

Miniature Size – Low Profile .42”

–.32” with Recessed Mounting

Constant Frequency Operation

High Density – Up to 52 W/in.

High Efficiency

Extremely Low Thermal Resistance

100°C Baseplate Operation

Parallelable with Current Sharing

Fault Tolerant – True n+1... n+m

Redundancy

Hot Swap Capability

Secondary Referenced Controls

Auxiliary (housekeeping) Supply Output

(PV pin)

Logic On-Off

Non-Shutdown Over Voltage Protection

Safety Agency Compliant

MODEL SELECTION

Model Number

Input

48 VDC

300 VDC

(36-72V)

(220-400V)

nV48-2

nV300-2

nV48-3

nV48-5

nV48-12

nV300-3

nV300-5

nV300-12

nV300-15

nV300-24

Output

Voltage Current

2.1V

3.3V

12V

15V

24V

30A

25A

20A

10A

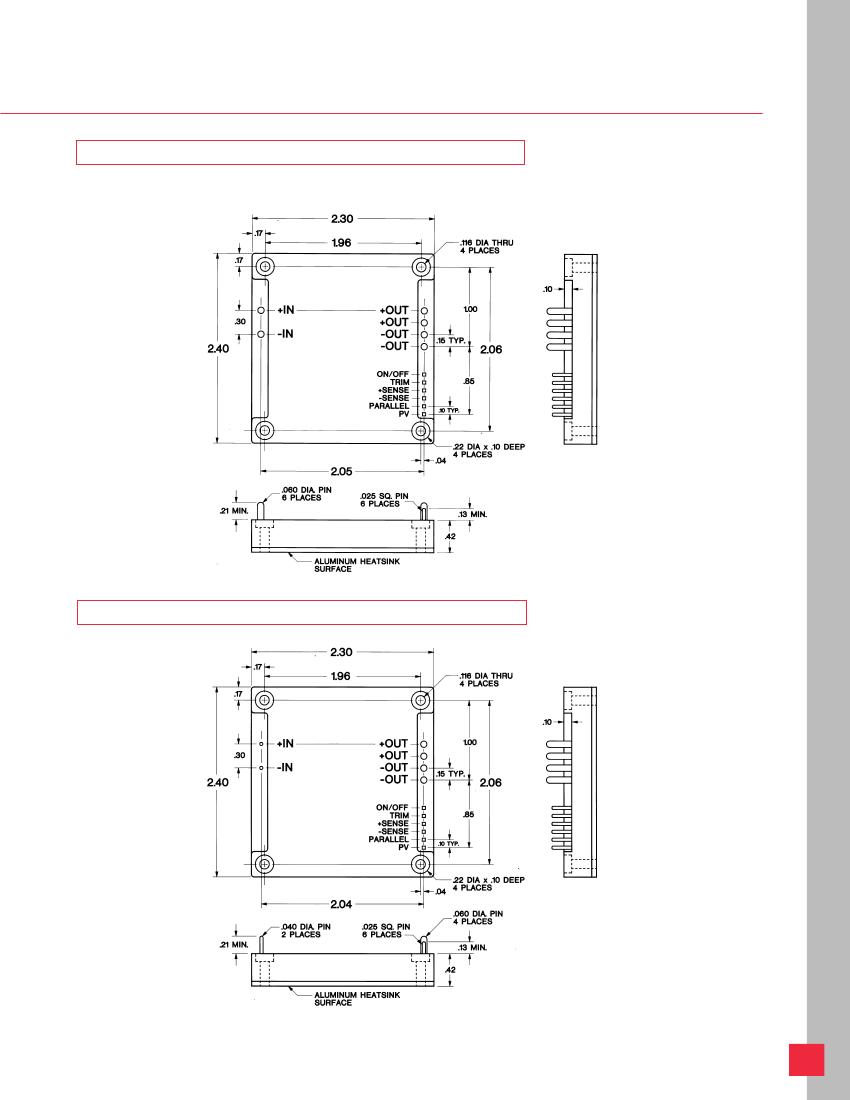

PROFILE

nV48-15

nV48-24

0.32"

Recessed Mounting

0.42"

Conventional Mounting

RO Associates, Inc. • Sunnyvale, CA • 408 744-1450 • Fax: 408 744-1521 • email: sales@roassoc.com

NV48-24 Related Products

	NV48-24	NV48-2	NV48-15	NV48-3	NV300-3	NV48-5	NV300-5	NV300-12	NV48-12
Description	DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 63W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 82.5W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 82.5W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12	DC-DC Regulated Power Supply Module, 1 Output, 120W, Hybrid, 2.400 X 2.300 INCH, 0.420 INCH HEIGHT, LOW PROFILE, MINIATURE PACKAGE-12
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2	, MODULE,12LEAD,2.2
Contacts	12	12	12	12	12	12	12	12	12
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	72 V	72 V	72 V	400 V	72 V	400 V	400 V	72 V
Minimum input voltage	36 V	36 V	36 V	36 V	220 V	36 V	220 V	220 V	36 V
Nominal input voltage	48 V	48 V	48 V	48 V	300 V	48 V	300 V	300 V	48 V
JESD-30 code	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12	R-XUFM-P12
JESD-609 code	e0	e0	e0	e0	e4	e0	e4	e4	e0
Maximum load regulation	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%	0.2%
Number of functions	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1
Number of terminals	12	12	12	12	12	12	12	12	12
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	26.4 V	2.205 V	16.5 V	3.465 V	3.63 V	5.5 V	5.5 V	13.2 V	13.2 V
Minimum output voltage	21.6 V	1.995 V	13.5 V	2.97 V	2.97 V	4.5 V	4.5 V	10.8 V	10.8 V
Nominal output voltage	24 V	2.1 V	15 V	3.3 V	3.3 V	5 V	5 V	12 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Encapsulate equivalent code	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2	MODULE,12LEAD,2.2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	GOLD	TIN LEAD	GOLD	GOLD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	120 W	63 W	120 W	82.5 W	82.5 W	100 W	100 W	120 W	120 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	-	1	1	1	1	1	-	-	-
