NLAST4053QSR Overview

TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, QSOP-16

NLAST4053QSR Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
length	4.9 mm
Maximum negative supply voltage (Vsup)	-5.5 V
Negative supply voltage minimum (Vsup)
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	2
Number of functions	3
Number of terminals	16
Nominal off-state isolation	93 dB
On-state resistance matching specifications	15 Ω
Maximum on-state resistance (Ron)	37 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	COMMERCIAL
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
Maximum disconnect time	28 ns
Maximum connection time	28 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	NOT SPECIFIED
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm

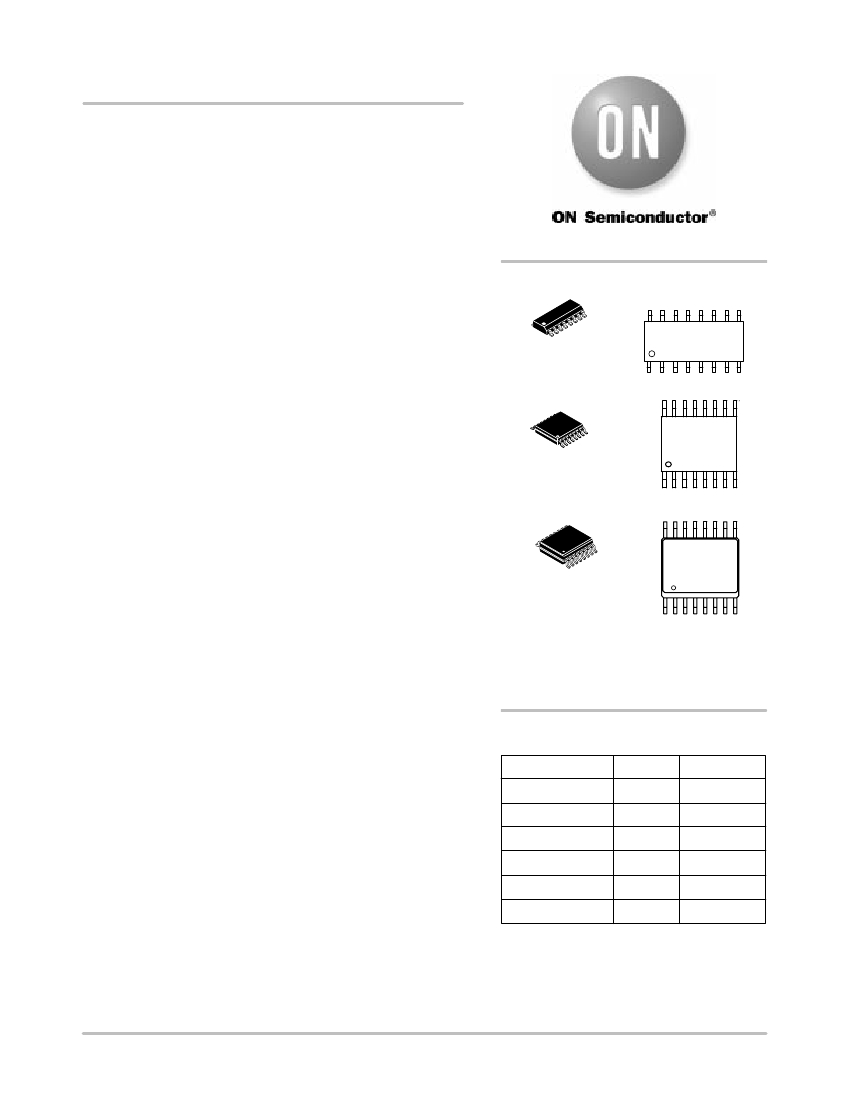

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

NLAST4053QSR Related Products

	NLAST4053QSR	NLAST4053DR2	NLAST4053DTR2
Description	TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, QSOP-16	TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, SOIC-16	TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, TSSOP-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	SOIC	TSSOP
package instruction	SSOP,	SOP,	TSSOP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	4.9 mm	9.9 mm	5 mm
Maximum negative supply voltage (Vsup)	-5.5 V	-5.5 V	-5.5 V
Nominal Negative Supply Voltage (Vsup)	-3 V	-3 V	-3 V
Number of channels	2	2	2
Number of functions	3	3	3
Number of terminals	16	16	16
Nominal off-state isolation	93 dB	93 dB	93 dB
On-state resistance matching specifications	15 Ω	15 Ω	15 Ω
Maximum on-state resistance (Ron)	37 Ω	37 Ω	37 Ω
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Certification status	COMMERCIAL	COMMERCIAL	COMMERCIAL
Maximum seat height	1.75 mm	1.75 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V	2.5 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V
surface mount	YES	YES	YES
Maximum disconnect time	28 ns	28 ns	28 ns
Maximum connection time	28 ns	28 ns	28 ns
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9116 mm	3.9 mm	4.4 mm
Terminal surface	NOT SPECIFIED	NOT SPECIFIED	-
