104TL2-5L: DescriptionToggle Switch, SPDT, Latched And Momentary, 7.5A, 30VDC, Screw Terminal, Locking Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size278KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

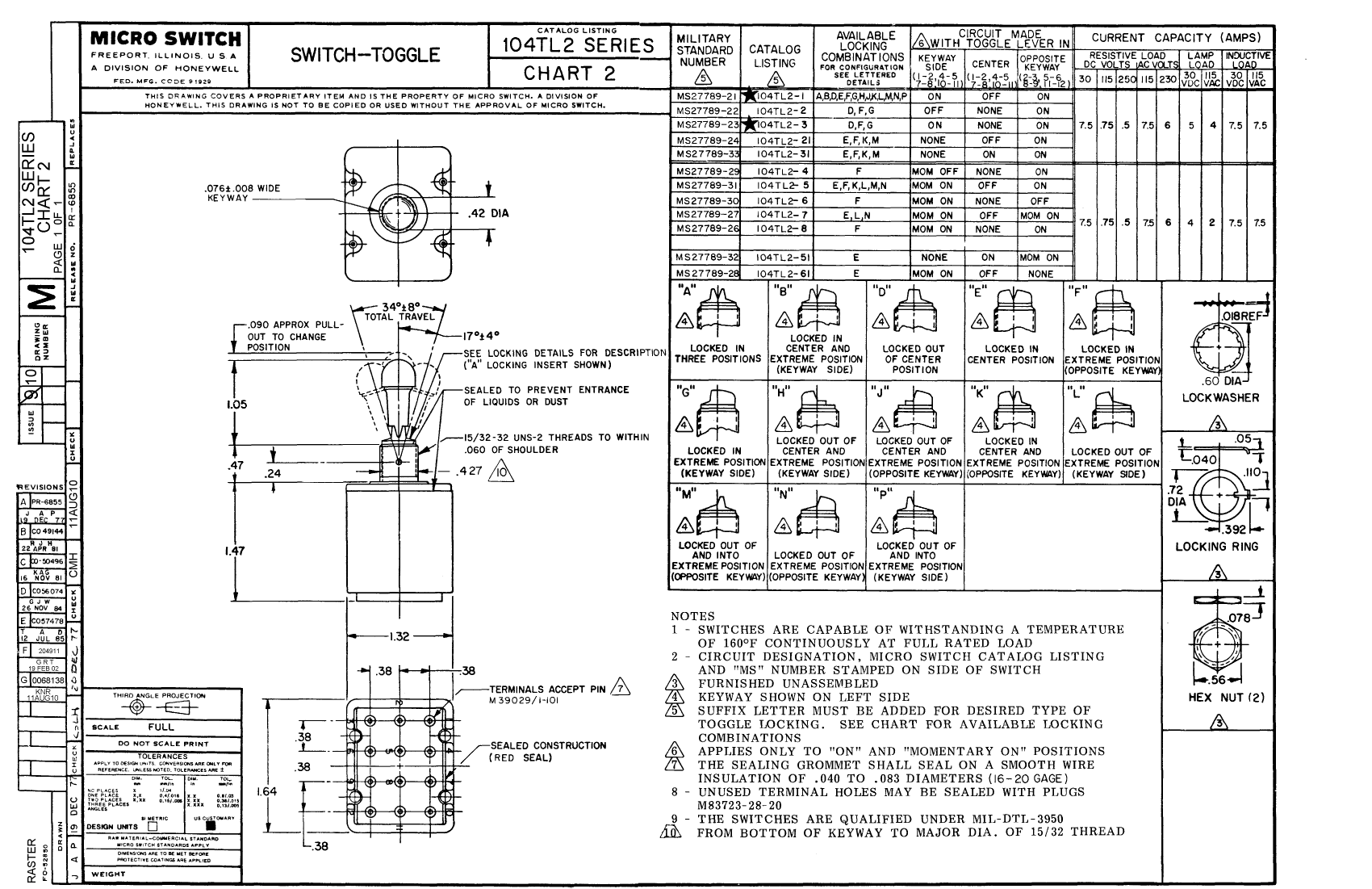

104TL2-5L Overview

Toggle Switch, SPDT, Latched And Momentary, 7.5A, 30VDC, Screw Terminal, Locking Lever Actuator, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LOCKING LEVER
body width	33.53 mm
body height	37.34 mm
Body length or diameter	41.66 mm
Contact (AC) maximum rated R load	7.5A@115VAC
Maximum contact current (AC)	7.5 A
Maximum contact current (DC)	7.5 A
Contact (DC) maximum rated R load	7.5A@30VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	30 V
Manufacturer's serial number	104TL2
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1
