AZ1085D-1.5TRG1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> AZ1085D-1.5TRG1

AZ1085D-1.5TRG1: DescriptionFixed Positive LDO Regulator, 1.5V, 1.5V Dropout, PSSO2, GREEN, TO-252-2, 3 PIN; CategoryPower/power management The power supply circuit; File Size919KB，21 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

AZ1085D-1.5TRG1 Overview

Fixed Positive LDO Regulator, 1.5V, 1.5V Dropout, PSSO2, GREEN, TO-252-2, 3 PIN

AZ1085D-1.5TRG1 Parametric

Parameter Name	Attribute value
Maker	Diodes
Parts packaging code	TO-252
package instruction	TO-252,
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	1.5 V
Maximum input voltage	10 V
Minimum input voltage	3 V
JESD-30 code	R-PSSO-G2
length	6.5 mm
Number of functions	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	3 A
Maximum output voltage 1	1.53 V
Minimum output voltage 1	1.47 V
Nominal output voltage 1	1.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.527 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
width	5.8 mm

Preview

Download Datasheet

View All

Data Sheet

3A LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1085 is a series of low dropout positive voltage

regulators with a maximum dropout of 1.5V at 3A of

load current.

The series features on-chip thermal shutdown. It also

includes a bandgap reference and a current limiting cir-

cuit.

The AZ1085 is available in 1.5V, 1.8V, 2.5V, 3.3V,

5.0V and adjustable versions. The fixed versions inte-

grate the adjust resistors. The adjustable version can

set the output voltage with two external resistors.

The AZ1085 series is available in standard packages of

TO-263-2, TO-263-3, TO-220-3, TO-252-2 (1), TO-

252-2 (2), TO-252-2 (3) and TO-252-2 (4).

AZ1085

Features

Low Dropout Voltage: Typical 1.3V at 3A

Current Limiting and Thermal Protection

Output Current: 3A

Current Limit: 4.5A

Operating Junction Temperature: 0 to 125

Line Regulation: 0.015% (Typical)

Load Regulation: 0.1% (Typical)

Applications

High Efficiency Linear Regulators

Battery Charger

Post Regulation for Switching Supplies

Microprocessor Supply

Mother Board Power Supplies

DVD-Video Player

Telecom Equipment

Set Top boxes and Web Boxes Modules' Supply

TO-263-3

TO-263-2

TO-220-3

TO-252-2 (1)

TO-252-2 (2)

TO-252-2 (3)

TO-252-2 (4)

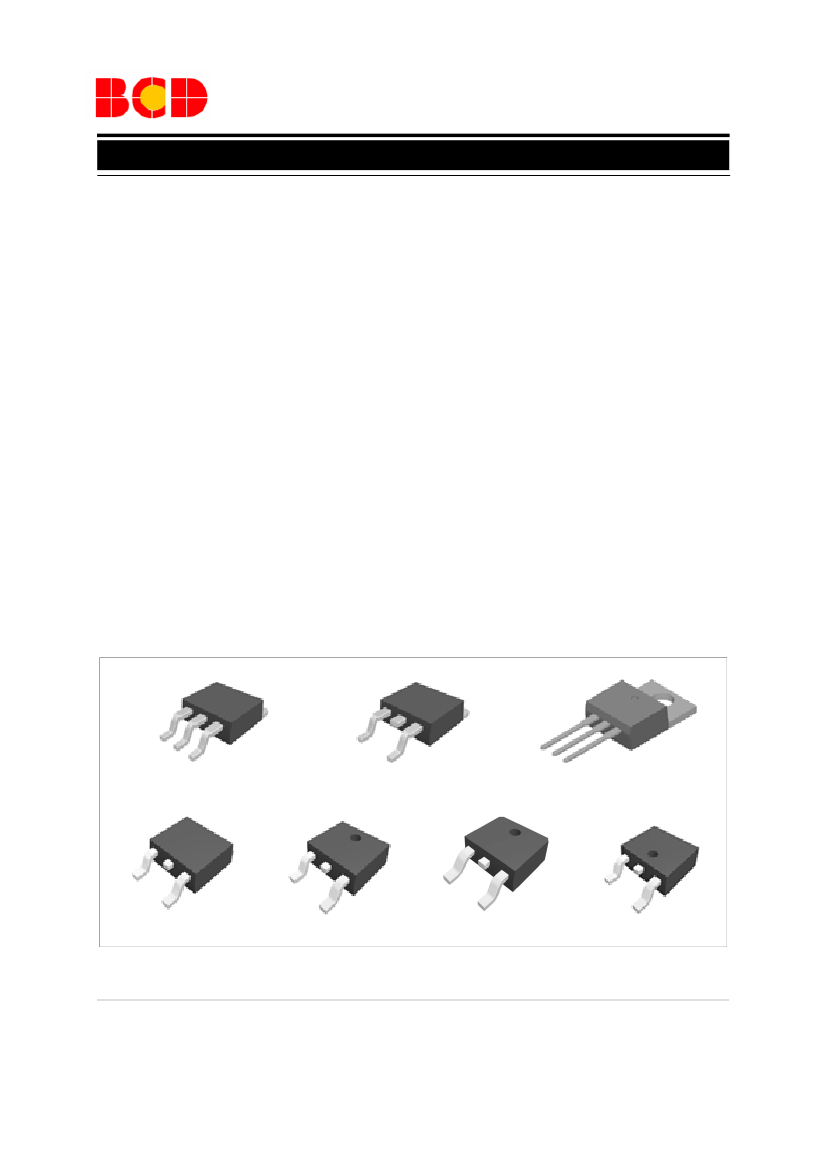

Figure 1. Package Types of AZ1085

Dec. 2012 Rev. 2. 1

BCD Semiconductor Manufacturing Limited
