MP03HBT130-18 datasheet, PDF - EEWORLD Datasheet

MP03HBT130-18: DescriptionSilicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),; CategoryAnalog mixed-signal IC Trigger device; File Size437KB，9 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

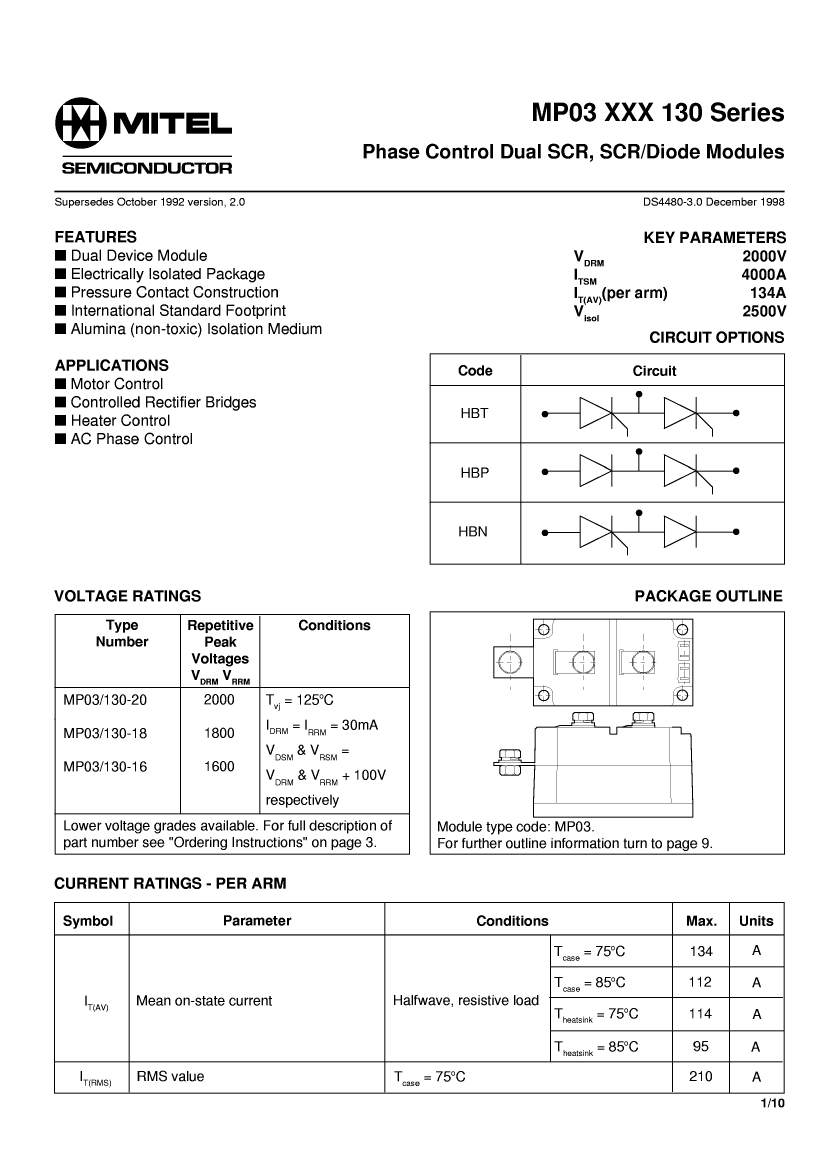

MP03HBT130-18 Overview

Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zarlink Semiconductor (Microsemi)
package instruction	,
Reach Compliance Code	unknown

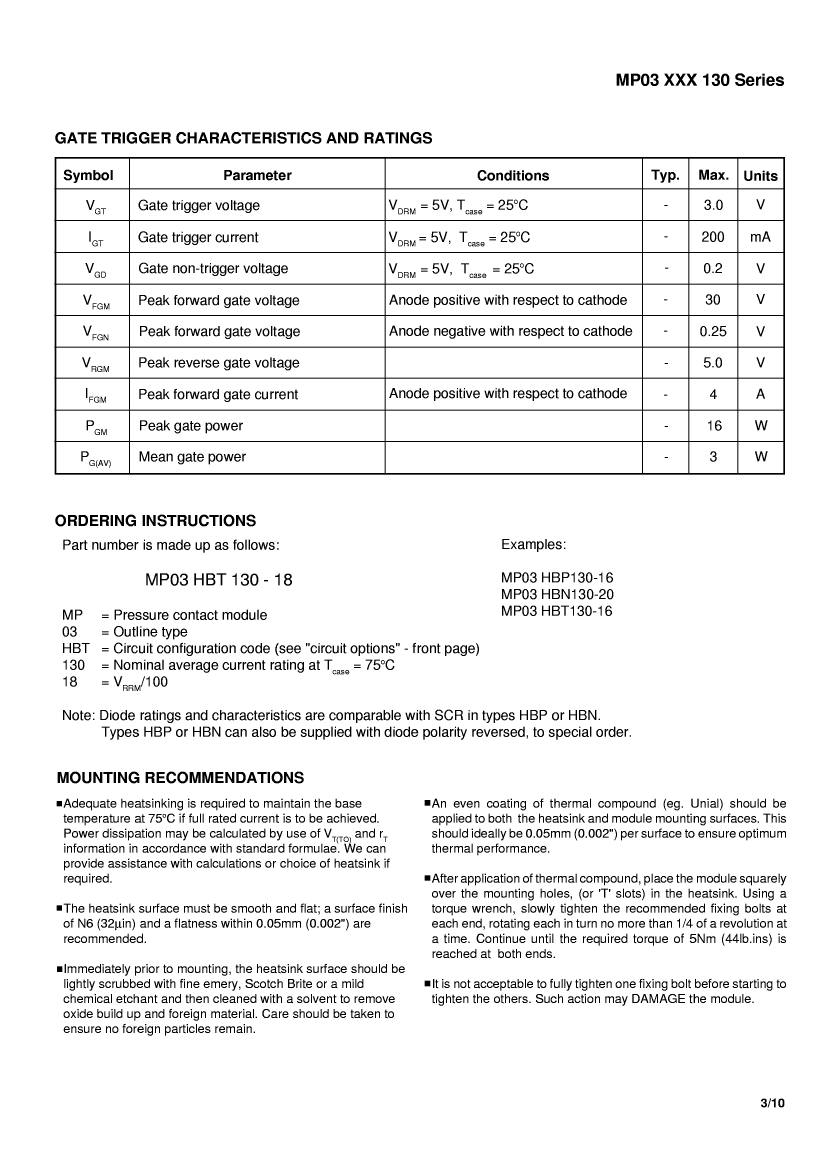

Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G
Description of screw terminals	A-K-AK
Maximum leakage current	30 mA

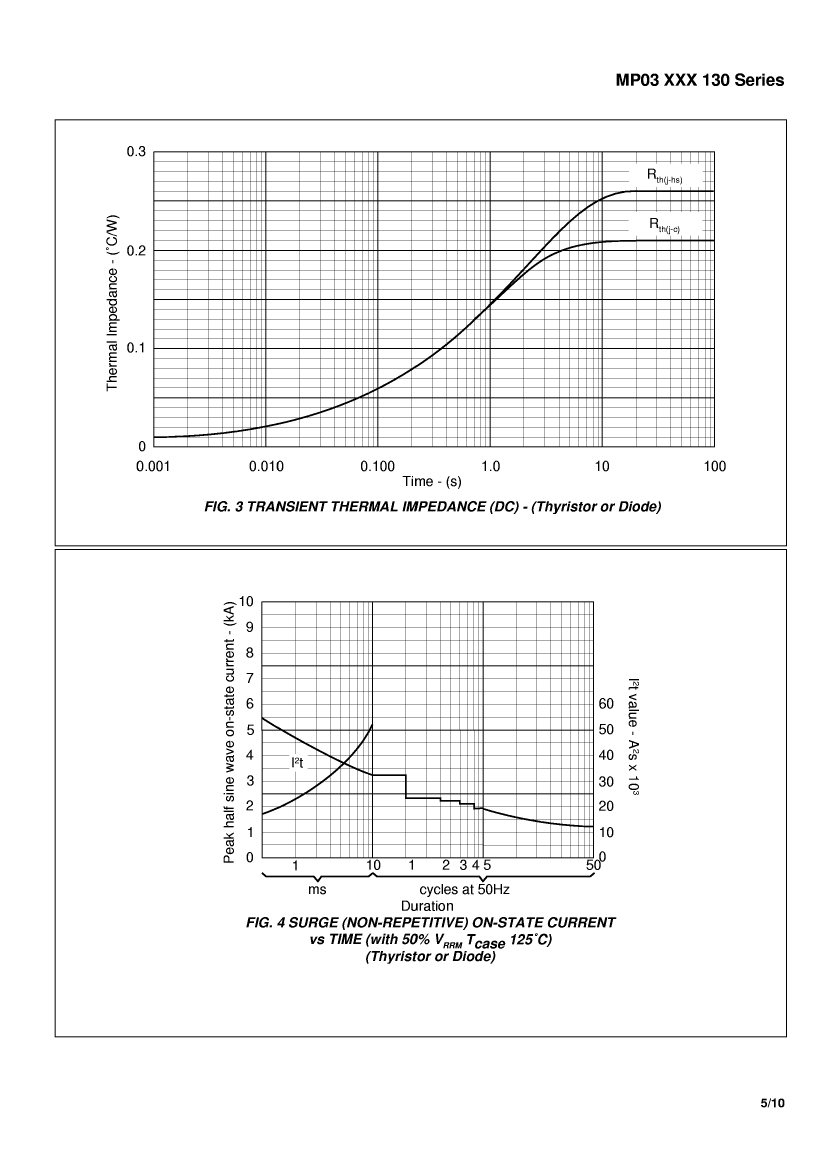

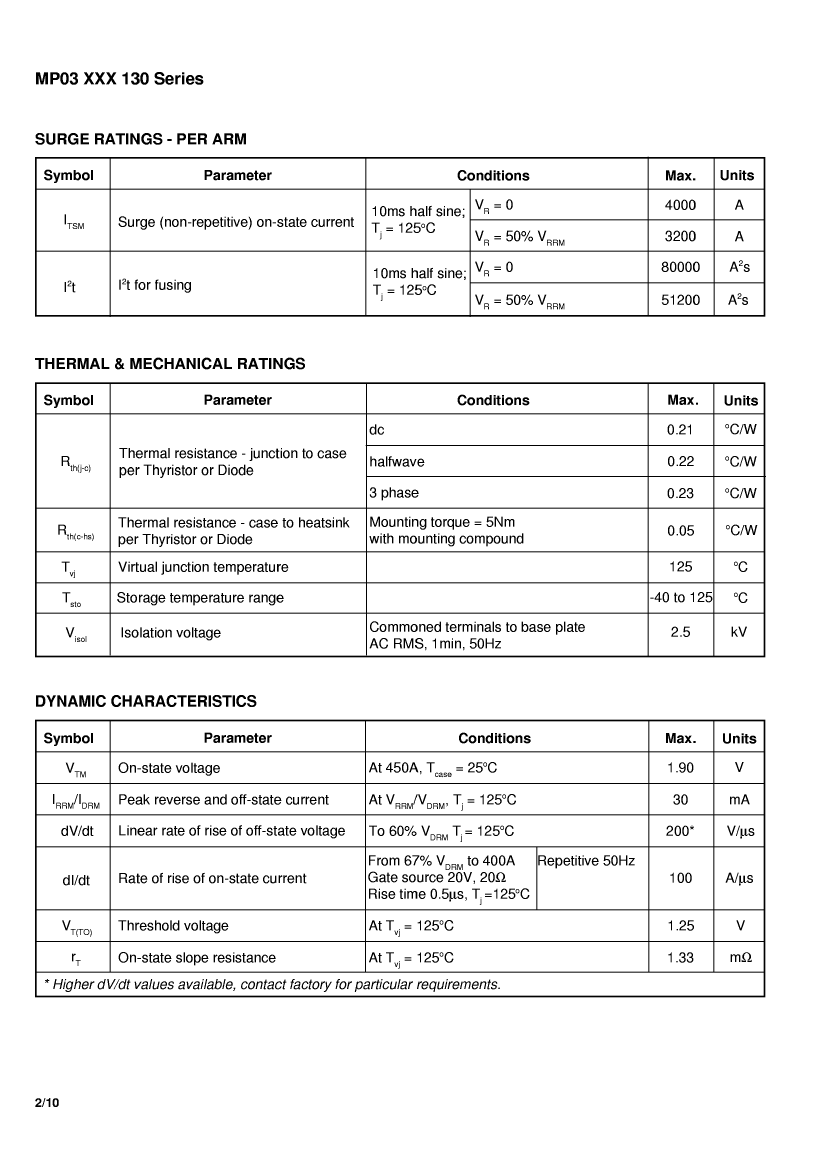

On-state non-repetitive peak current	4000 A

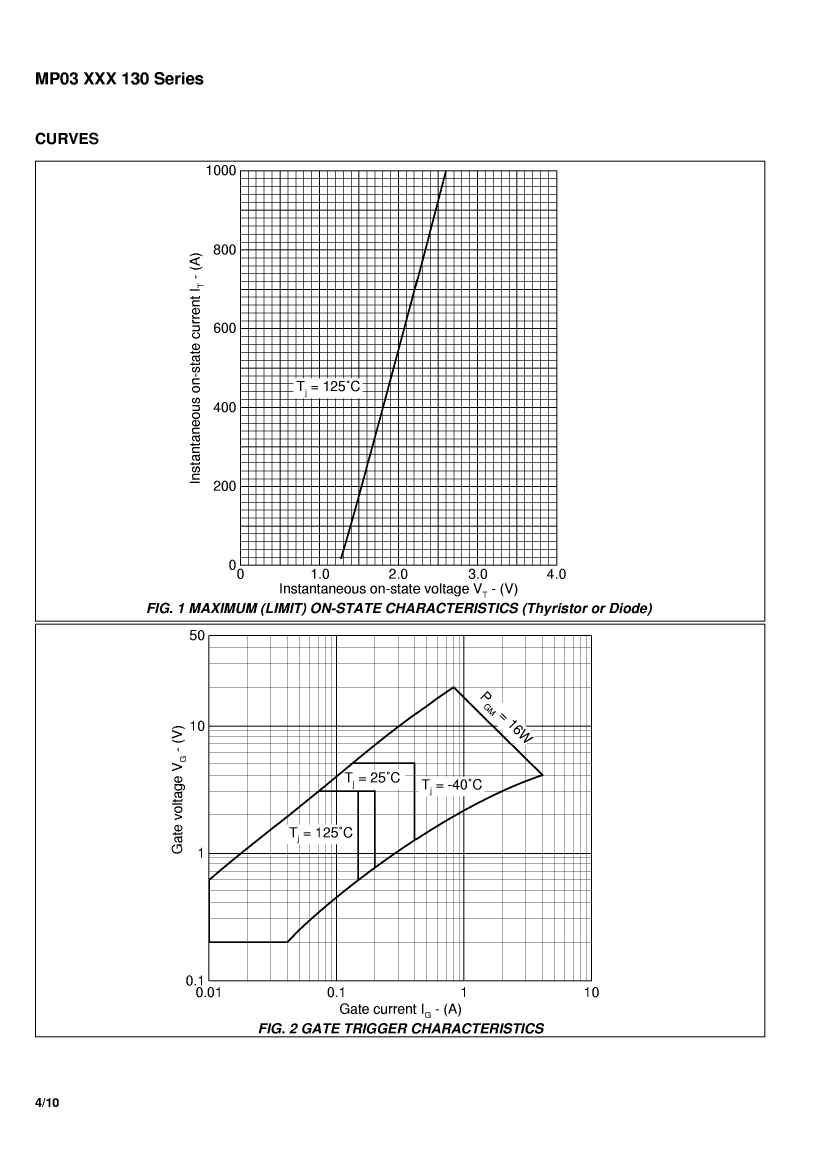

Maximum on-state voltage	1.9 V
Maximum on-state current	134000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Repeated peak reverse voltage	1800 V
Trigger device type	SCR

	MP03HBT130-18	MP03HBN130-18	MP03HBP130-16	MP03HBT130-16	MP03HBP130-18
Description	Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1600V V(RRM),	Silicon Controlled Rectifier, 134000mA I(T), 1800V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V
Quick connection description	2G	G	G	2G	G
Description of screw terminals	A-K-AK	A-K-AK	A-K-AK	A-K-AK	A-K-AK
Maximum leakage current	30 mA	30 mA	30 mA	30 mA	30 mA
On-state non-repetitive peak current	4000 A	4000 A	4000 A	4000 A	4000 A
Maximum on-state voltage	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V
Maximum on-state current	134000 A	134000 A	134000 A	134000 A	134000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Repeated peak reverse voltage	1800 V	1800 V	1600 V	1600 V	1800 V
Base Number Matches	-	1	1	1	-
