GMW-1/16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> GMW-1/16

GMW-1/16: DescriptionElectric Fuse, Fast Blow, 0.0625A, 125VAC, 125VDC, 35A (IR), Through Hole,; CategoryCircuit protection Circuit protection; File Size23KB，1 Pages; ManufacturerEaton

Download Datasheet Parametric View All

GMW-1/16 Overview

Electric Fuse, Fast Blow, 0.0625A, 125VAC, 125VDC, 35A (IR), Through Hole,

GMW-1/16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks 6 days
Other features	RATED BREAKING CAPACITY AT 125 VDC: 35A
Fusing characteristics	FAST
body height	6.4 mm
Body length or diameter	7.1 mm
Circuit protection type	ELECTRIC FUSE
Installation features	THROUGH HOLE
method of packing	BOX
physical size	7.1mm x 6.4mm
Rated breaking capacity	35 A
Rated current	0.0625 A
Rated voltage (AC)	125 V
Rated voltage (DC)	125 V
Guideline	UL
surface mount	NO
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

Bussmann

Specialty Fuses

Fast-Acting

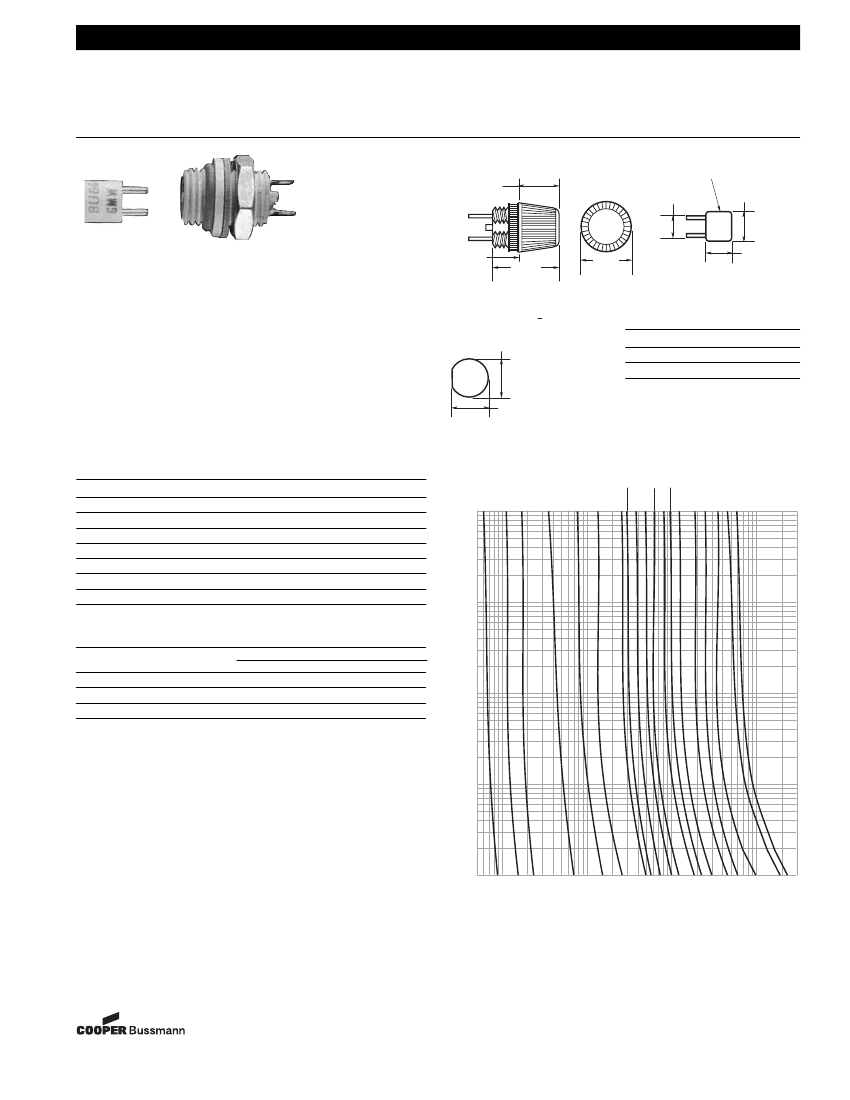

Dimensional Data

GMW

and HWA

FUSE

0.69"

(17.5mm)

0.147"

(3.7mm)

0.28"

(7.1mm)

FRONT

PANEL

0.98"

(25.0mm)

0.55"

(13.9mm)

0.25"

(6.4mm)

CATALOG SYMBOL: GMW (FUSE), HWA (HOLDER)

PIN TYPE

0.280” x 0.25” (7.1mm x 6.4mm)

FAST-ACTING

INTERRUPTING RATING - 35 AMPS

GMW: U.L. RECOGNIZED

(GUIDE #JDYX2, FILE # E19180)

HWA: U.L. RECOGNIZED

(GUIDE #IZLT2, FILE # E14853)

MOUNTING HOLE + 0.002"

0.379"

(9.6mm)

(0.5mm)

Test Specifications

Load

100%

200%

Opening Time

4 hrs. (min.)

10 sec. (max.)

0.344"

(8.7mm)

Time-Current Characteristics–Total Clear

1/32

1/16

1/10

125 Volts

GMW-1/100

GMW-1/64

GMW-1/32

GMW-1/16

GMW-1/10

GMW-1/8

GMW-2/10

GMW-1/4

GMW-3/10

GMW-4/10

GMW-1/2

GMW-6/10

GMW-3/4

GMW-1

GMW-1-1/2

GMW-2

GMW-3

GMW-4

GMW-5

—

2/10

1/4

3/10

4/10

1/2

6/10

3/4

1-1/2

Electrical Ratings (Catalog Symbol and Amperes)

1/200

1/100

1/64

AMPERE

RATING

100

Ampere

Ratings

GMW 1/100–5

HWA Fuseholder

AF Knob

* Weight per carton.

Carton

Qty

100

Weight*

Lbs.

0.20

0.44

0.25

Kg.

97.7

200.0

113.4

TIME IN SECONDS

Carton Quantity and Weight

• Sub-miniature pin-base fuses for limited space applications.

• Can be soldered direct into circuit or can be mounted in

HWA holder which can be soldered into circuit.

• Transparent window in fuse for visual determination of open

fuse element.

• Fuseholder body and knob material is diallyl phthalate.

• Holder includes “O”-ring, gasket, and nut.

• Military versions: fuse–FMO1; holder–FHN42W.

• Type HWA-AF holder includes waterproof cap (knob) AF.

.01

.005

.01

CURRENT IN AMPERES

The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to

clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any

products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-

ed, it should be tested by the user in all possible applications.

12-18-98

SB98107

Rev. A

Form No. GMW

Page 1 of 1

BIF Doc #2058
