MIL-A-3933/25-03 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MIL-A-3933/25-03

Preview

MIL-A-3933/25-03: DescriptionRF/Microwave Attenuator, 0 MHz - 2000 MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size83KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

MIL-A-3933/25-03 Overview

RF/Microwave Attenuator, 0 MHz - 2000 MHz RF/MICROWAVE FIXED ATTENUATOR

MIL-A-3933/25-03 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	SMA
Nominal attenuation	3 dB
structure	COAXIAL
Maximum operating frequency	2000 MHz
Minimum operating frequency
RF/Microwave Device Types	FIXED ATTENUATOR

Preview

Download Datasheet

View All

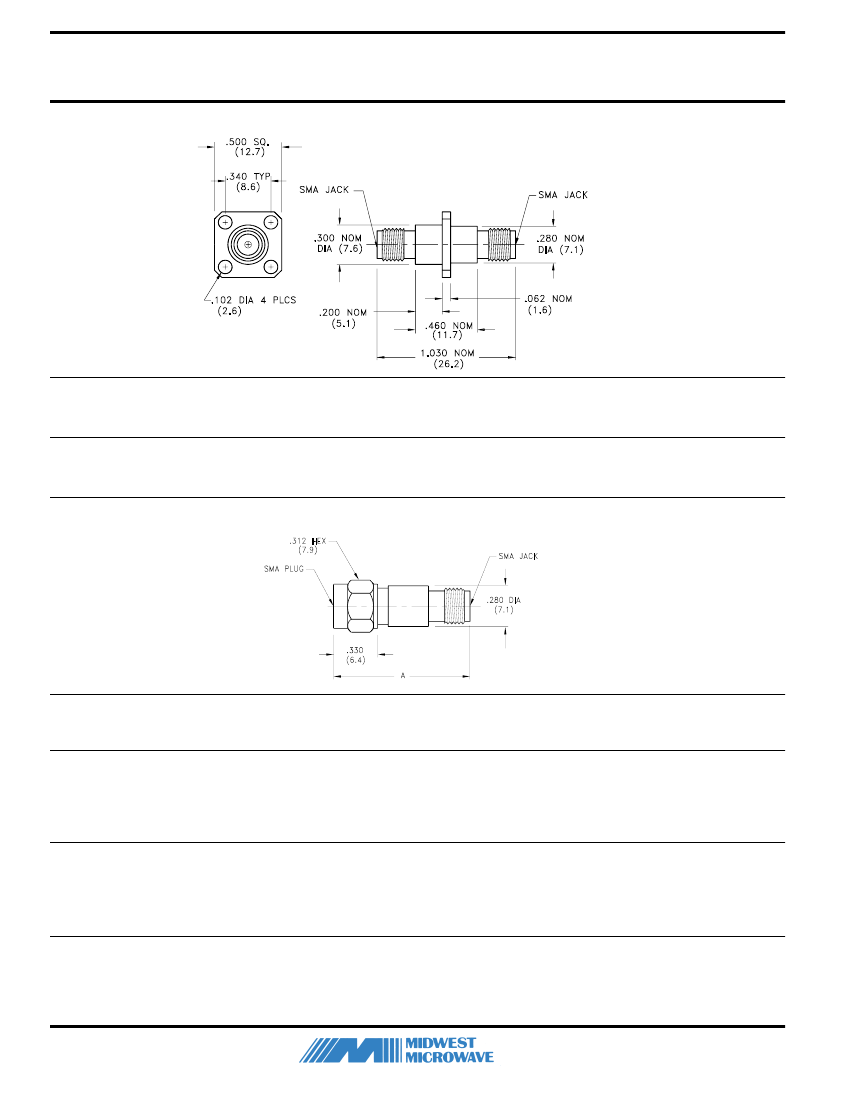

QPL

Attenuators - Fixed Coaxial

MIL-A-3933/24

MILITARY

PART NO.

- 01

- 02

- 03

MIDWEST

PART NO.

M3933/24-01N

M3933/24-02N

M3933/24-03N

DIMENSION A

INCHES (mm)

(max)

1.03 (26.2)

ATTENUATION

VALUE (dB

(nom)

10

15

20

FREQUENCY

RANGE

(GHz)

2.0 - 12.4

COMMERCIAL

ALTERNATE

ATT-523F-10-000-02

ATT-523F-15-000-02

ATT-523F-20-000-02

MIL-A-3933/25

MILITARY

PART NO.

- 01

- 02

- 03

- 04

- 05

- 06

- 07

- 08

- 09

- 10

- 11

- 12

- 13

- 14

- 15

MIDWEST

PART NO.

M3933/25-01N

M3933/25-02N

M3933/25-03N

M3933/25-04N

M3933/25-05N

M3933/25-06N

M3933/25-07N

M3933/25-08N

M3933/25-09N

M3933/25-10N

M3933/25-11N

M3933/25-12N

M3933/25-13N

M3933/25-14N

M3933/25-15N

DIMENSION A

INCHES (mm)

(max)

0.86

1.02

(21.9)

(26.0)

ATTENUATION

VALUE (dB

(nom)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

FREQUENCY

RANGE

(GHz)

DC - 2.0

COMMERCIAL

ALTERNATE

ATT-0294-01-SMA-02

ATT-0294-02-SMA-02

ATT-0294-03-SMA-02

ATT-0294-04-SMA-02

ATT-0294-05-SMA-02

ATT-0294-06-SMA-02

ATT-0294-07-SMA-02

ATT-0294-08-SMA-02

ATT-0294-09-SMA-02

ATT-0294-10-SMA-02

ATT-0294-11-SMA-02

ATT-0294-12-SMA-02

ATT-0294-13-SMA-02

ATT-0294-14-SMA-02

ATT-0294-15-SMA-02

242
