A4BT300 Overview

Electric Fuse, Time Delay Blow, 300A, 600VAC, 500VDC, 200000A (IR), Inline/holder,

A4BT300 Parametric

Parameter Name	Attribute value
Maker	Mersen
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 500 VDC: 100000 A
Fusing characteristics	TIME DELAY
body height	96.84 mm
Body length or diameter	51 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	51mm x 96.84mm
Rated breaking capacity	200000 A
Rated current	300 A
Rated voltage (AC)	600 V
Rated voltage (DC)	500 V
surface mount	NO
Terminal shape	TAB/BLADE

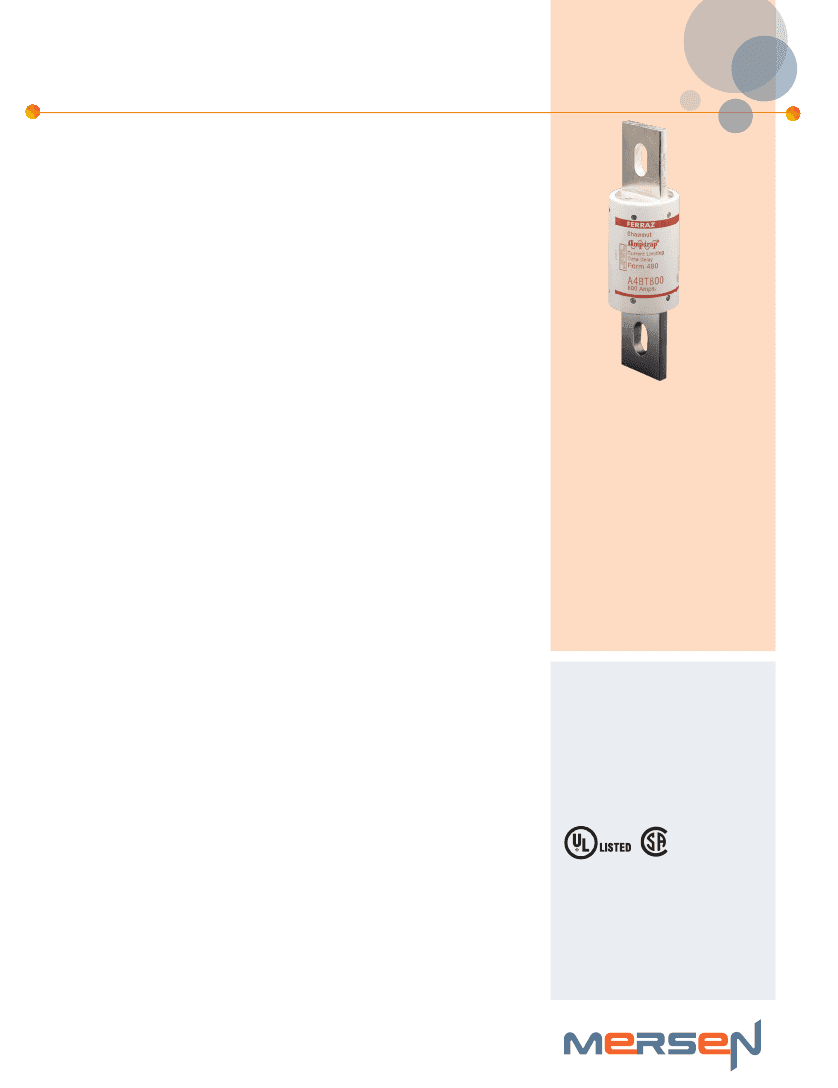

A4BT300 Preview

Download Datasheet

View All

A4BT

Time-delay/Class L

When your heavier loads need protection A4BT fuses won’t

let you down

The high interrupting rating of A4BT current-limiting fuses is ideally suited for

protecting mains, feeders, and general circuits. The 10-second time-delay at 500%

of fuse rating is ideal for large motors and other loads with a high inrush. A4BT fuses

are suitable for DC applications up to 500VDC. An A4BT fuse can be applied to

normal loads up to its full ampere rating to allow 100% rating of equipment, while also

providing superior current-limiting ability.

Features/Benefits:

•

Unique dimensions prevent replacement by other fuse classes.

•

Blade-stamped catalog numbers for permanent identification

•

Glass melamine body and plated terminals provide superior reliability in

harsh environments

Highlights:

•

Current-limiting

Full 10-second delay

DC ratings

Uniform characteristics in all

ampere ratings

Applications:

•

Motors

Motor controllers

Transformers

Mains

Feeders

Ratings:

Volts

Amps

: 600VAC

: 500VDC

: 200 to 2,000A

: 200kA I.R. AC

: 100kA I.R. DC

Approvals:

•

UL Listed to standard 248-10

•

CSA Certified to standard C22.2

•

Self-certified for DC per UL248

(601-2000)

No. 248.10 (601-2000A)

(601-2000A) File E2137

B12
