MAPD-008016-0001TR datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MAPD-008016-0001TR

MAPD-008016-0001TR: DescriptionSplitter, 1940MHz Min, 2340MHz Max, 0.7dB Insertion Loss-Max, GREEN, PLASTIC, MO-178AB, SOT-26,12 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，4 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MAPD-008016-0001TR Overview

Splitter, 1940MHz Min, 2340MHz Max, 0.7dB Insertion Loss-Max, GREEN, PLASTIC, MO-178AB, SOT-26,12 PIN

MAPD-008016-0001TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	44.77 dBm
Maximum insertion loss	0.7 dB
JESD-609 code	e3
Maximum operating frequency	2340 MHz
Minimum operating frequency	1940 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	SPLITTER
Terminal surface	Matte Tin (Sn)
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

MAPD-008016-000100

Low Cost Two-Way GMIC SMT Power Divider

1940– 2340 MHz

Features

•

Designed for UMTS Band

Small Size and Low Profile

Industry Standard SOT-26 SMT Plastic Package

Typical Insertion Loss: 0.4 dB

Typical Isolation: 19 dB @ 2140MHz

1 Watt Power Handling

Lead-Free SOT-26 Package

100% Matte Tin Plating over Copper

Halogen-Free “Green” Mold Compound

260°C Reflow Compatible

RoHS Compliant

Rev. V2

Functional Diagram

RF 1

GND

RF 2

GND

RF IN

GND

Description

M/A-COM’s MAPD-008016-000100 is an IC-based

monolithic power divider using M/A-COM’s GMIC

technology in a low cost SOT-26 plastic package.

This 2-way power divider is ideally suited for

applications where small size, low insertion loss,

superior phase/amplitude tracking and low cost are

required. Typical applications

include personal

communication systems and other communication

applications where size and PCB real estate are at a

premium. Available in tape and reel.

The MAPD-008016-000100 is fabricated using a

passive-integrated circuit process. The process

features full-chip passivation for increased

performance and reliability.

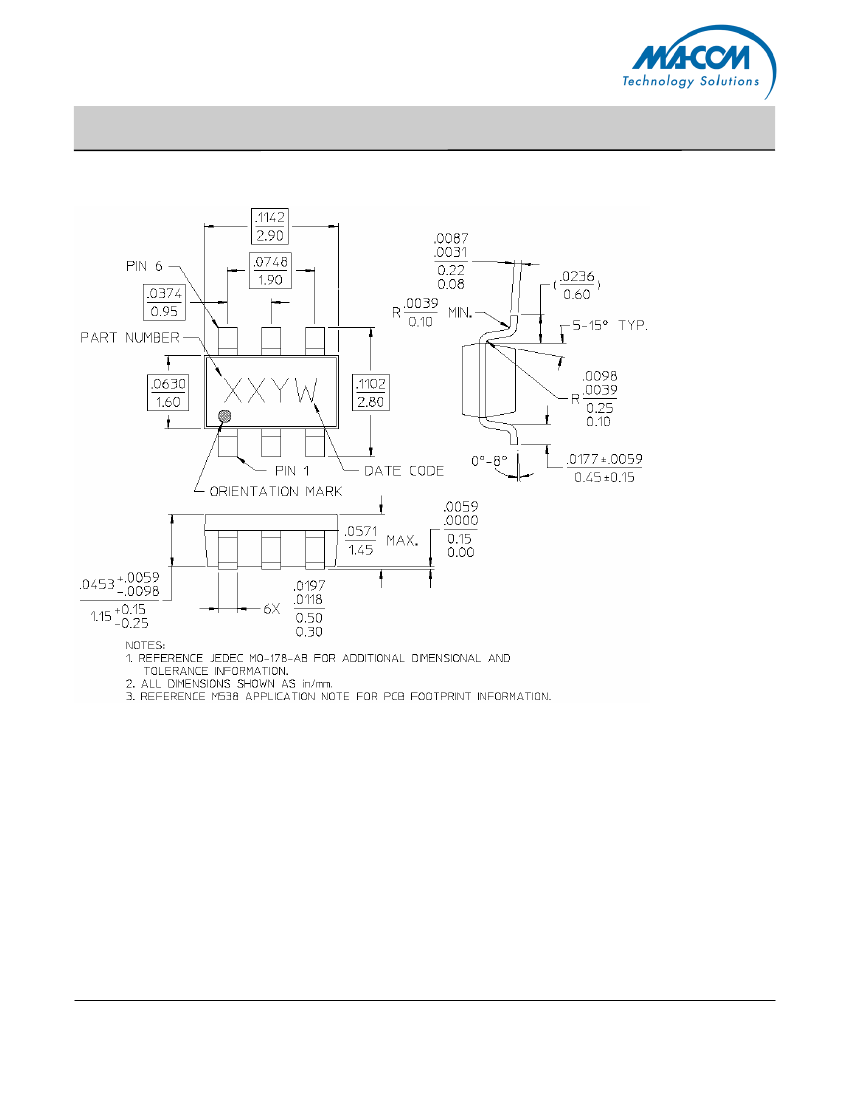

Pin Configuration

Pin No.

Function

RF1

GND

RF2

Pin No.

Function

GND

RF IN

GND

Ordering Information

Part Number

MAPD-008016-000100

MAPD-008016-0001TR

MAPD-008016-0001TB

Package

Bulk Packaging

1000 piece reel

Sample Test Board

Note: Reference Application Note M513 for reel size

information.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

MAPD-008016-0001TR Related Products

	MAPD-008016-0001TR	MAPD-008016-000100
Description	Splitter, 1940MHz Min, 2340MHz Max, 0.7dB Insertion Loss-Max, GREEN, PLASTIC, MO-178AB, SOT-26,12 PIN	Splitter, 1940MHz Min, 2340MHz Max, 0.7dB Insertion Loss-Max, GREEN, PLASTIC, MO-178AB, SOT-26,12 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	MACOM	MACOM
Reach Compliance Code	compliant	compliant
Characteristic impedance	50 Ω	50 Ω
structure	MODULE	MODULE
Maximum input power (CW)	44.77 dBm	44.77 dBm
Maximum insertion loss	0.7 dB	0.7 dB
JESD-609 code	e3	e3
Maximum operating frequency	2340 MHz	2340 MHz
Minimum operating frequency	1940 MHz	1940 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	SPLITTER	SPLITTER
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Maximum voltage standing wave ratio	1.5	1.5
