AM29C827AJCTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> AM29C827AJCTR

AM29C827AJCTR: DescriptionBus Driver, CMOS Series, 1-Func, 10-Bit, True Output, CMOS, PQCC28, PLASTIC, LCC-28; Categorylogic logic; File Size261KB，9 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM29C827AJCTR Overview

Bus Driver, CMOS Series, 1-Func, 10-Bit, True Output, CMOS, PQCC28, PLASTIC, LCC-28

AM29C827AJCTR Parametric

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknow
Other features	WITH DUAL OUTPUT ENABLE
series	CMOS
JESD-30 code	S-PQCC-J28
length	11.5062 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5062 mm
Base Number Matches	1

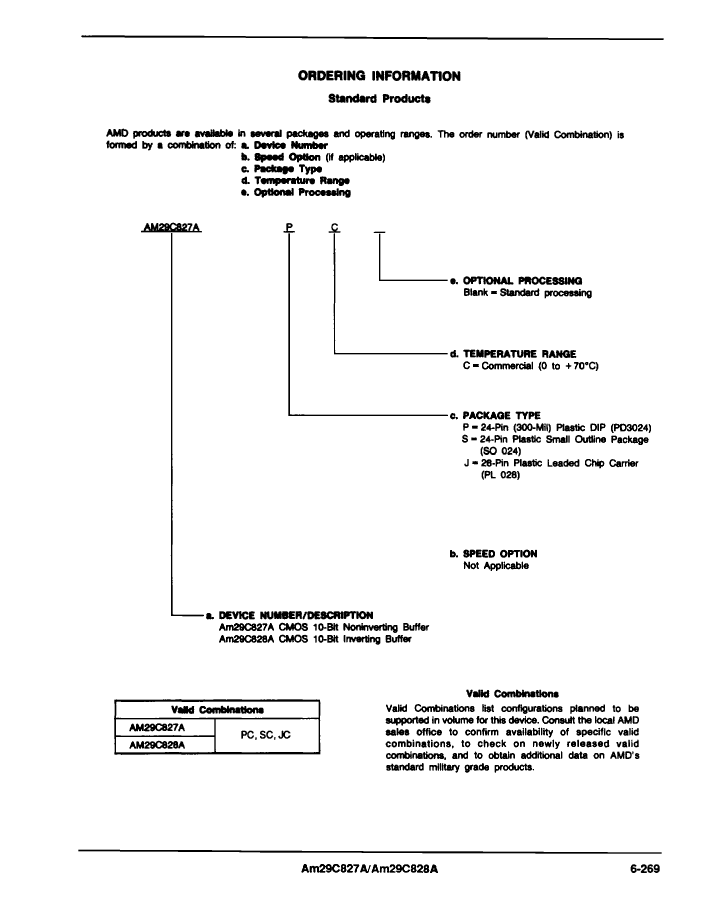

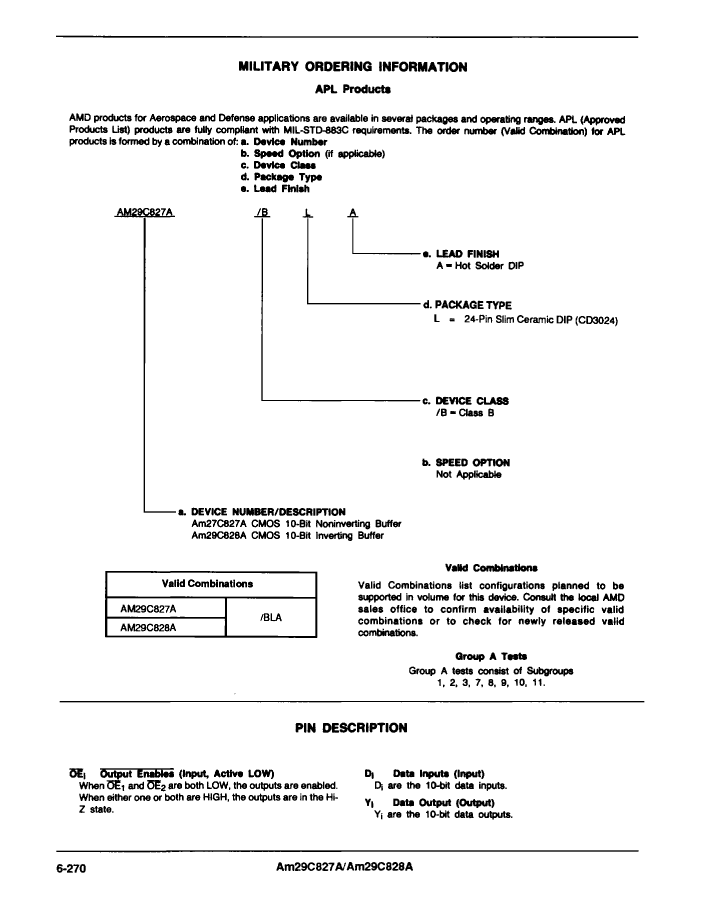

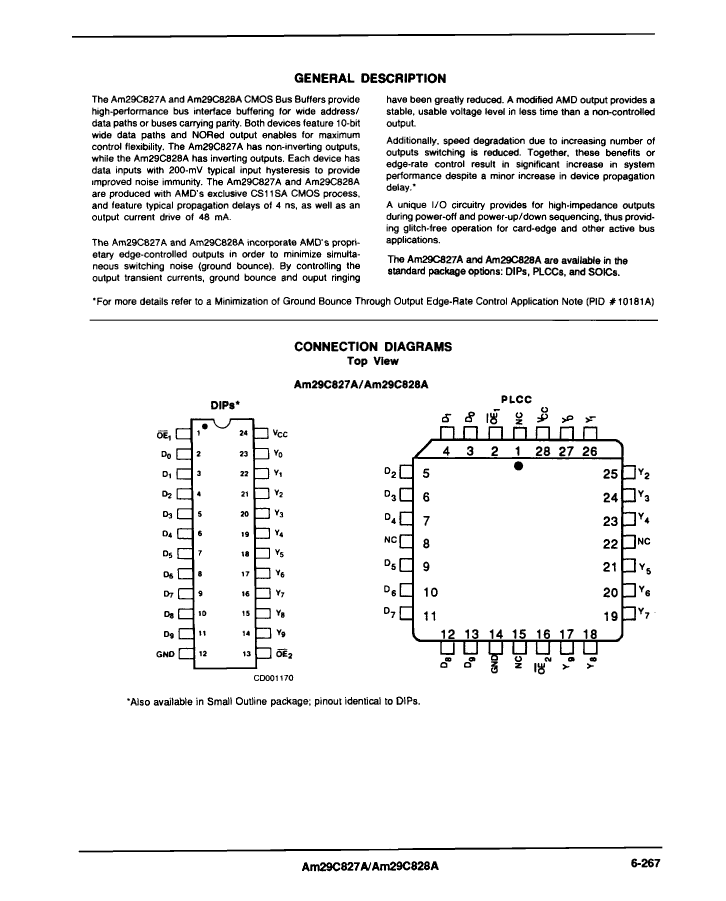

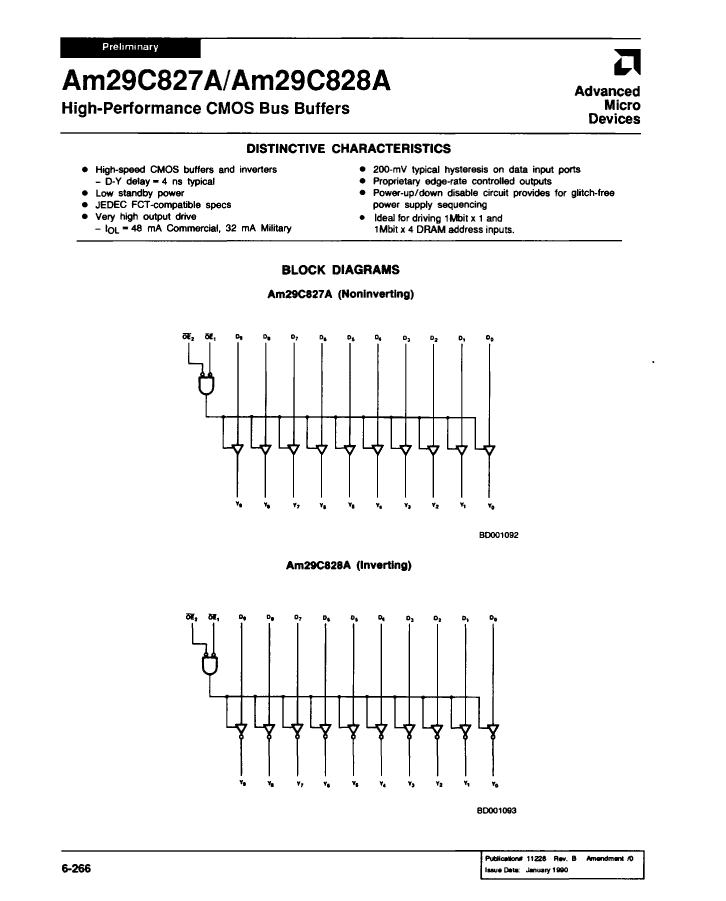

Preview

Download Datasheet

View All

AM29C827AJCTR Related Products

	AM29C827AJCTR	AM29C827ASCTR	AM29C828AJCTR	AM29C828ASCTR
Description	Bus Driver, CMOS Series, 1-Func, 10-Bit, True Output, CMOS, PQCC28, PLASTIC, LCC-28	Bus Driver, CMOS Series, 1-Func, 10-Bit, True Output, CMOS, PDSO24, PLASTIC, SOP-24	Bus Driver, CMOS Series, 1-Func, 10-Bit, Inverted Output, CMOS, PQCC28, PLASTIC, LCC-28	Bus Driver, CMOS Series, 1-Func, 10-Bit, Inverted Output, CMOS, PDSO24, PLASTIC, SOP-24
Parts packaging code	QLCC	SOIC	QLCC	SOIC
package instruction	QCCJ,	SOP,	QCCJ,	SOP,
Contacts	28	24	28	24
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	CMOS	CMOS	CMOS	CMOS
JESD-30 code	S-PQCC-J28	R-PDSO-G24	S-PQCC-J28	R-PDSO-G24
length	11.5062 mm	15.4 mm	11.5062 mm	15.4 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	10	10
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	28	24	28	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	SOP	QCCJ	SOP
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	3 mm	4.57 mm	3 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	GULL WING	J BEND	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL
width	11.5062 mm	7.5 mm	11.5062 mm	7.5 mm
Base Number Matches	1	1	1	1
