852-90-052-10-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 852-90-052-10-001

852-90-052-10-001: DescriptionBoard Connector, 52 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

852-90-052-10-001 Overview

Board Connector, 52 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

852-90-052-10-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 3006-0-00-01-00-00-03-0
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	852
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	52
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

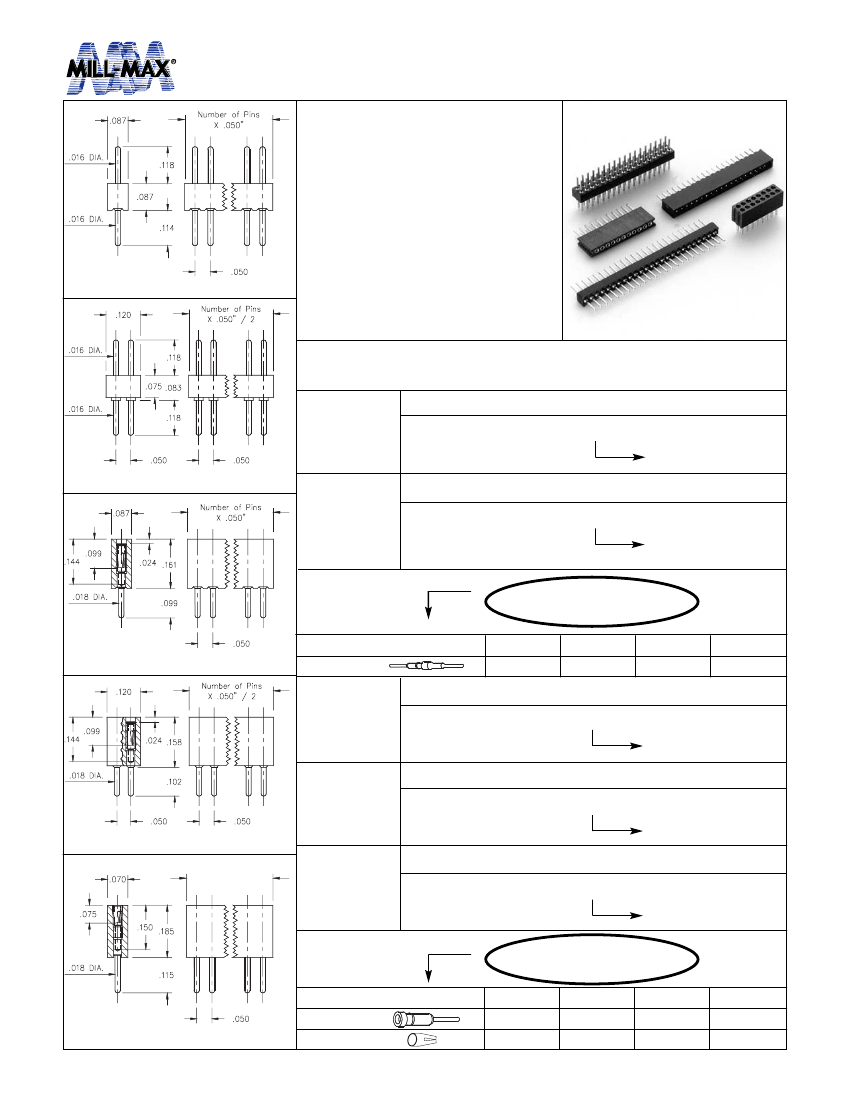

INTERCONNECTS

.050” Grid

Single and Double Row

•

Series 850 single and double row

interconnects have .050” pin

spacing and permit board stacking

as low as .248”.

•

Pin headers have .017” dia. pins.

(MM# 3006 see page 166 for details).

•

MM# 0489 and 0467 receptacles

use M-M#11 Hi-Rel, 3-finger beryl-

lium copper contacts rated at 3 amps.

(#11 contact accepts pin diameters

from .015-.020)

•

Insulators are high temp. thermo-

plastic, suitable for all soldering

operations.

Series 850, 851

852, 853

Fig. 1

Ordering Information

Single Row

Fig. 1

Fig. 2

.087” Profile Pin Header

850-XX-0_ _-10-001

01-50

.075” Profile Pin Header

002-100

Specify # of pins

Double Row

Fig. 2

852-XX-_ _ _-10-001

Specify # of pins

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

200µ” Sn/Pb

Fig. 3

Pin Plating

Single Row

.161” Profile Socket

851-XX-0_ _-10-001

01-50

Fig. 3

Specify # of pins

Fig. 4

(Number of Pins

X .050”) + .040”

Double Row

.161” Profile Socket

853-XX-_ _ _-10-001

Specify # of pins

Single Row

002-100

.185” Profile Socket

851-XX-0_ _-10-002

Specify # of pins

XX= Plating Code

See Below

Fig. 5

01-77

SPECIFY PLATING CODE XX=

30µ” Au

200µ”Sn/Pb

Sleeve (Pin)

200µ” Sn/Pb 200µ”Sn/Pb

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
