MWDM3L-67GP-8E1-18B datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MWDM3L-67GP-8E1-18B

MWDM3L-67GP-8E1-18B: DescriptionInterconnection Device; CategoryThe connector Connector bracket; File Size176KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

MWDM3L-67GP-8E1-18B Overview

Interconnection Device

MWDM3L-67GP-8E1-18B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
ConnectorSide1	MICRO-D
ConnectorSide2	MICRO-D
Connector bracket type	WIRE AND CABLE
structure	SOLID
DIN compliance	NO
IEC compliance	NO
length	5.486 mm
MIL compliance	NO
Number of conductors	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Rated current	3 A
shield	NO
Wire gauge	28 AWG
Wire and Cable Names	CABLE ASSEMBLY

Preview

Download Datasheet

View All

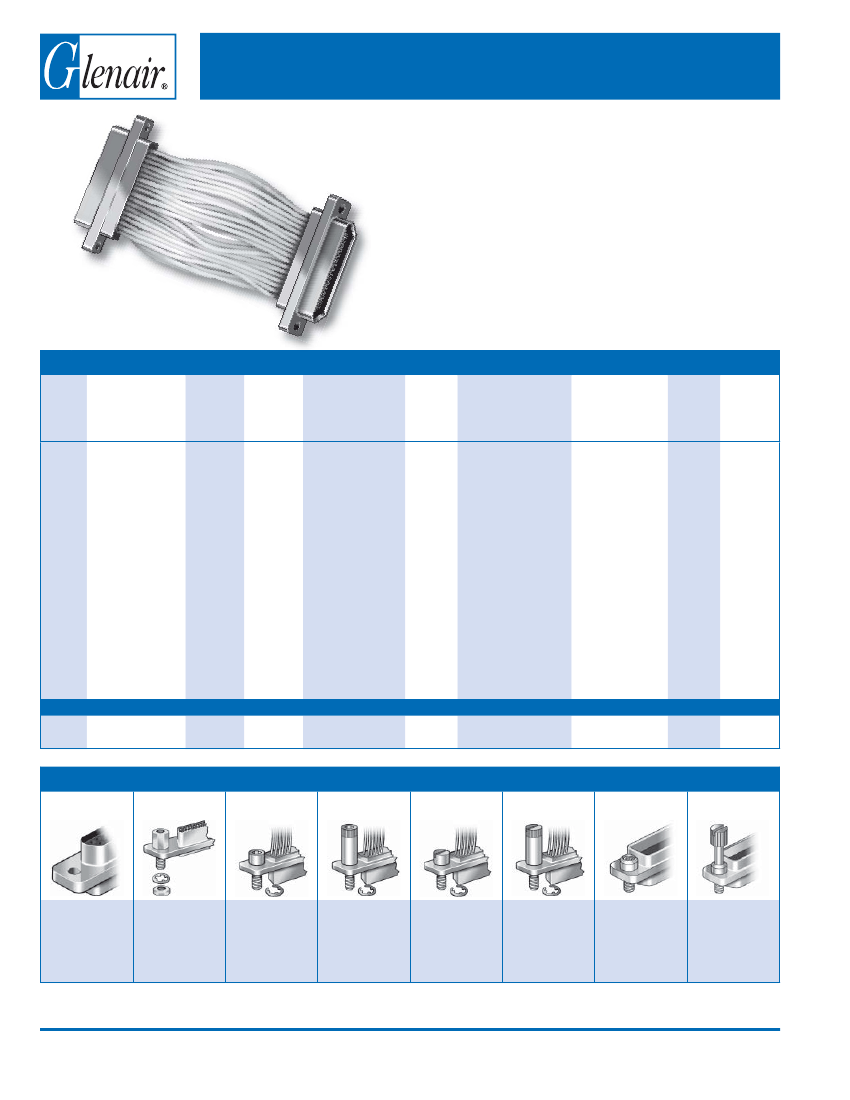

Micro-D Metal Shell

MWDM Back-To-Back Unshielded Cable Assemblies

Save Time and Money With Back-To-Back Cables–

These Micro-D connectors feature crimp wire terminations

and epoxy encapsulation. The installed cost is lower than

terminating solder cup connectors.

100% Certiﬁed–

all back-to-back assemblies are 100%

checked for continuity, resistance, voltage and insulation

resistance.

Hardware Note–

if jackposts are required on one end and

jackscrews on the other, use hardware designator “B” (no

hardware installed), and order hardware kits separately.

HOW TO ORDER BACK-TO-BACK UNSHIELDED CABLES

Shell Material Insulator Contact

and Finish

Material Layout

51-2

100

Connect or

Type

–

Pin (Plug)

Connector

Both Ends

Series

Wire

Gage

(AWG)

–

#24

–

#26

–

#28

–

#30

Wire Type

–

M22759/11

600 Vrms Teﬂon

(TFE)

Wire Color

–

White

–

Yellow

–

Ten Color

Repeating

Total

Length

Inches Hardware

Total

Length In

Inches.

“18”

Speciﬁes

18 Inches.

MWDM

Aluminum Shell

– LCP

– Cadmium

30% Glass-

Filled Liquid

– Nickel

Crystal

– Black Anodize Polymer

– Gold

– Chem Film

Stainless Steel

Shell

–

Socket

(Receptacle)

Connector

Both Ends

–

Pin Connector

to Socket

Connector

–

M22759/33

600 Vrms

Modiﬁed Cross-

Linked Tefzel

(ETFE)

–

Color-Coded

Stripes Per

MIL-STD-681

(Striped wire not

available on 67,

69 or 100 pin

connectors or for

#28, #30 AWG)

–

NEMA HP3-EB

600 VrmsType

E M16878/4

(TFE) (replaced

by M22759/11

for mil spec

applications)

–

Passivated

–

Ten Color

Repeating

Sample Part Number

MWDM

L –

GP –

7 –

MICRO-D MOUNTING HARDWARE

Thru-Hole

Order Hardware

Separately

Jackpost

Removable

Includes Nut and

Washer

Jackscrew

Hex Head

Removable

E-ring

Jackscrew

Hex Head

Removable

E-ring

Extended

Jackscrew

Slot Head

Removable

E-ring

Jackscrew

Slot Head

Removable

E-ring

Extended

Jackscrew

Hex Head

Non- Removable

Jackscrew

Slot Head

Non-

Removable

Extended

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

B-6

E-Mail: sales@glenair.com
