Commercial
CCR-53
Failsafe
Miniature DC-26.5GHz SPDT Switch
The CCR-53 Switch is a broadband, SPDT, electromechanical, coaxial switch designed to
switch a microwave signal from a common input to either of two outputs. The characteristic
impedance is 50 Ohms. The switches are small with connector spacing compatible with SMA
connectors.
The CCR-53 series switch is offered with either a failsafe or latching actuator. This design is
compatible with the two most common mounting hole patterns. The CCR-53 series switch is
interchangeable with a variety of
switches.
Break before make
Voltage (VDC) 20
O
C
Current (mA)
Switching Time:
Connectors:
Weight:
20 msec max
SMA (f)
1.65 oz. max
MIL-STD-202 Method 213, Condition D (500G Non Operating)
MIL-STD-202 Method 214, Condition D (10G RMS Non Operating)
Moisture Seal Available
5 Million Cycles
12
15
28
200 160 90
Specifications
RF Contacts:
Actuator
Temperature Range:
-40
O
C to +65
O
C (Operating)
Shock:
Vibration:
Humidity:
Typical Contact Life:
RF Power Handling
Insertion Loss Repeatability (1 Million Cycles):
DC to 6 GHz: 0.05 dB
DC to 20 GHz: 0.1 dB
3000
Typical Performance
Return Loss
rs
800
400
Sta
Power CW (Watts)
nda
rd S
MA
200
Co
nne
cto
15
80
40
25
10
0.1
1.0
4.0
Frequency GHz
10
18
26.5
0.01
0.0
Frequency GHz
26.5
0.4
Specifications
DC-6 GHz 6-12 GHz 12-18 GHz 18-26.5GHz
IL dB
1.25:1
VSWR (max)
Insertion Loss (max) 0.20 dB
Isolation (min)
70.0 dB
1.40:1
0.40 dB
60.0 dB
1.50:1
0.50 dB
60.0 dB
1.80:1
0.70 dB
50.0 dB
0.01
Frequency GHz
26.5
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
Isolation dB
60
70
80
90
Miniature DC-26.5GHz SPDT Switch
Failsafe
Commercial
CCR-53
Indicators
TTL
Analog

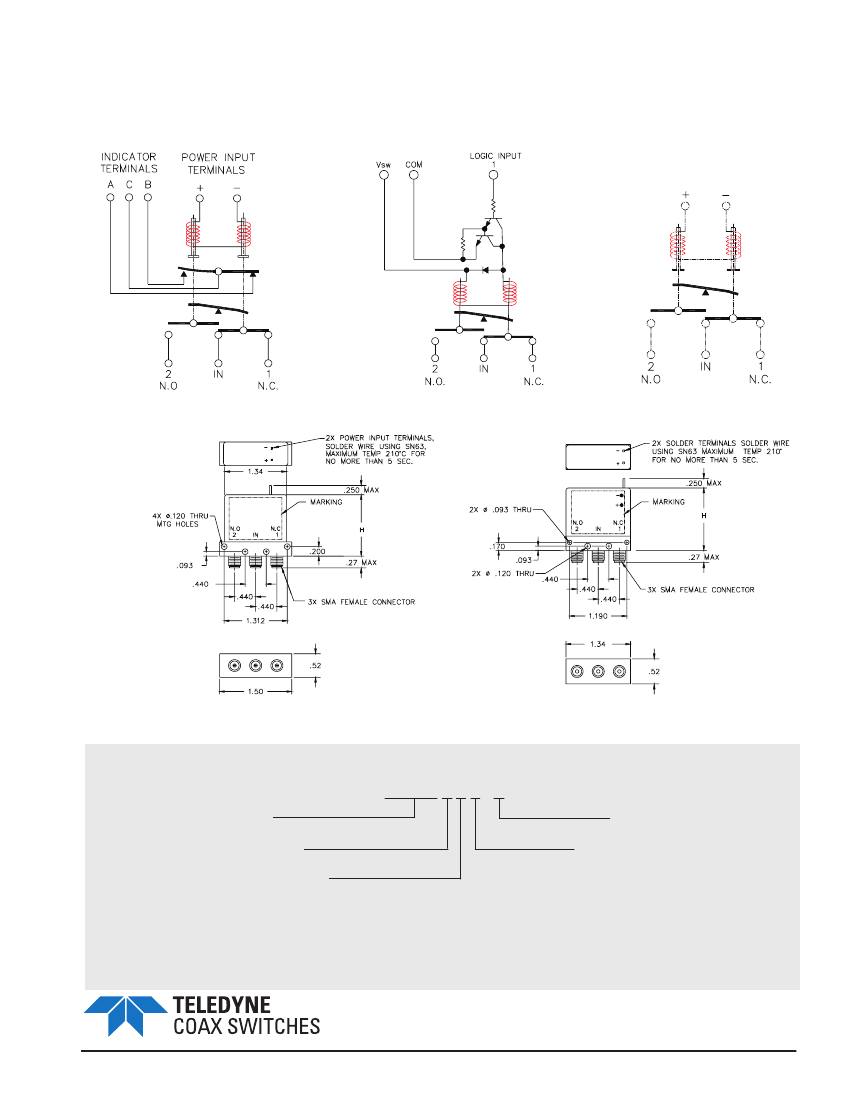

H = 1.30 MAX. STD MODEL
H = 1.80 MAX. TTL MODEL
H = 1.30 MAX. STD MODEL
H = 1.80 MAX. TTL MODEL
Standard Width Body
Optional Narrow Width Body
Part Numbering System for CCR-53 (Failsafe)
CCR-53 S 1 O - N
Series
Connectors
Actuator Voltage
Connector
S: SMA Female #
Actuator Voltage
1: 28Vdc Failsafe #
2: 15Vdc Failsafe #
3: 12Vdc Failsafe #
Actuator Type
O: No Indicator Contacts #
C: Indicator Contacts #
Options
T: TTL Drivers with Diodes
N: Narrow Body #
R: Positive + Common
#: Stock item subject to prior sale
Options
Actuator Type
For other options contact Factory
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
