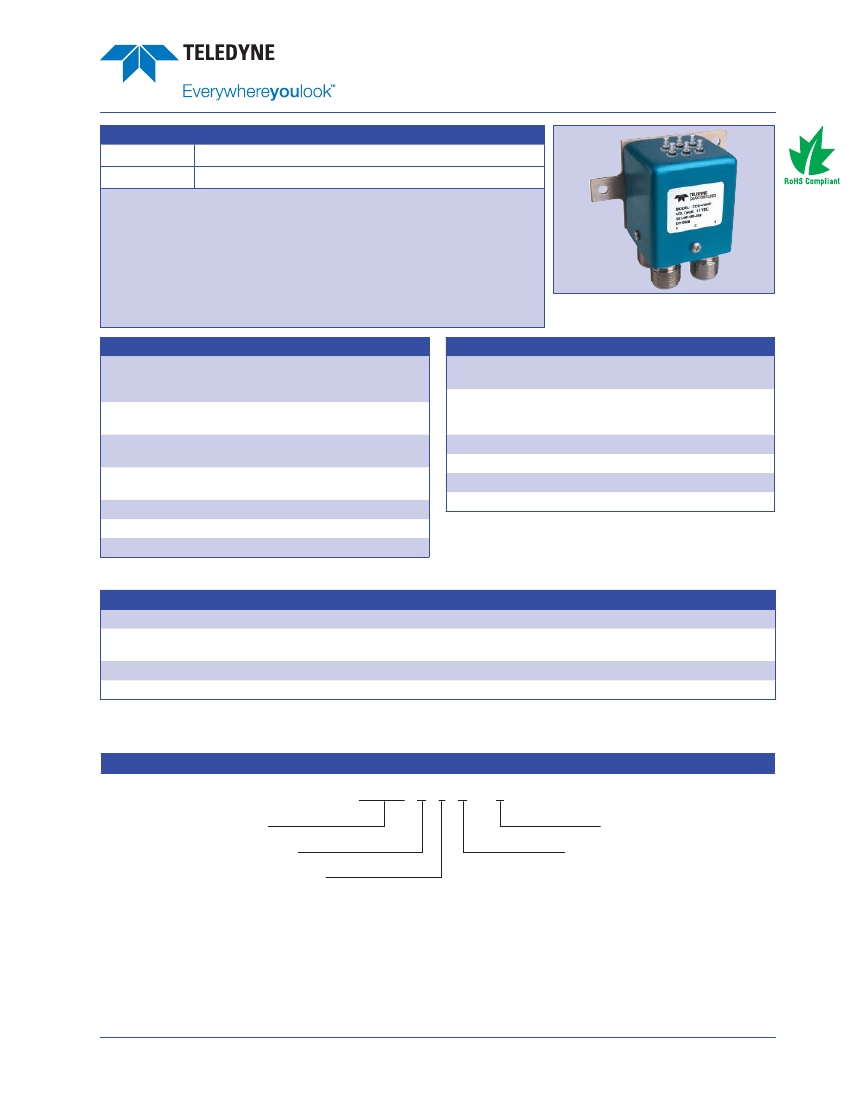

COAX SWITCHES
PART NUMBER
CCS-47
CS-47
DESCRIPTION
Commercial Latching TRANSFER, DC-12GHz
Elite Latching TRANSFER, DC-12GHz
Series CCS-47/CS-47
High Power DC–12 GHz
Latching TRANSFER Coaxial Switch
The CCS-47/CS-47 is a long-life high performance transfer switch designed for use in 50 Ohms coaxial
transmission lines operating over frequencies ranging from DC to 12 GHz. The switch is designed for
minimum size compatible with Type N or TNC connector spacing.
This switch is provided with a magnetic latching actuator which is particularly desirable in applications
where actuator power consumption must be kept to an absolute minimum. The latching type actuator
requires less switching current than the failsafe type. In the self-cutoff version, power is applied only for
the very short duration (approximately 50 msec. max.) of the actuator transfer from one position of the
other. This makes this type of actuator especially suitable for portable battery operated systems.
ENVIRONMENTAL AND PHYSICAL CHARACTERISTICS
Operating Temperature
Commercial Model, CCS-47
Elite Model, CS-47
Vibration (MIL-STD-202 Method 214,
Condition D, non-operating)
Shock (MIL-STD-202 Method 213,
Condition D, non-operating)
Standard Actuator Life
Actuator Life w/ Additional Features
Connector Type
Humidity (Moisture Seal)
Weight
–40°C to 65°C
–55°C to 85°C
10 g’s RMS
500 g’s
3,000,000 cycles
1,000,000 cycles
Type N or TNC
Available
6 oz. (170.1g) (max.)
ELECTRICAL CHARACTERISTICS
Form Factor
Frequency Range
CCS-47
CS-47
Characteristic Impedance
Operate Time
Actuation Voltage Available
Actuation Current, max. @ ambient
TRANSFER,
break before make
DC–12 GHz
DC–12 GHz
50 Ohms
15 ms (max.)
12
15
24
80
28 V
60 mA
160 130
PERFORMANCE CHARACTERISTICS: N CONNECTOR OPTION (TNC CONNECTOR, 11GH
Z
MAX.)
Frequency
Insertion Loss, dB,
max.
Isolation, dB, min.
VSWR , max.
DC–2 GHz
0.2
70
1.2:1
2–5 GHz
0.2
70
1.3:1
5–8 GHz
0.3
70
1.3:1
8–10 GHz
0.5
65
1.5:1
10-12 GHz
0.5
60
1.5:1
PART NUMBERING SYSTEM
CCS-47
Series
Connectors
Actuator Voltage
Connector
N: Type N Female
T: TNC Female
Actuator Voltage
6: 28 Vdc Latching
7: 15 Vdc Latching
8: 12 Vdc Latching
9: 24 Vdc Latching
N
6
C
-
T **
Options
Actuator Type
Actuator Type
0: Standard Contacts
C: Indicator Contacts
D: Self Cutoff Only
E: Indicators and Self Cutoff
**SEE PARTS LIST ON PAGES 8-9
Options
T: TTL Drivers with Diodes
D: Transient Suppression
Diodes
R: Positive + Common
M: Moisture Seal
S: 9 Pin D-Sub Connector
For other options, contact factory.
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCS-47/CS-47 Page 1
CCS-47\CS-47\082013\Q3
Series CCS-47/CS-47
High Power DC–12 GHz
Latching TRANSFER Coaxial Switch

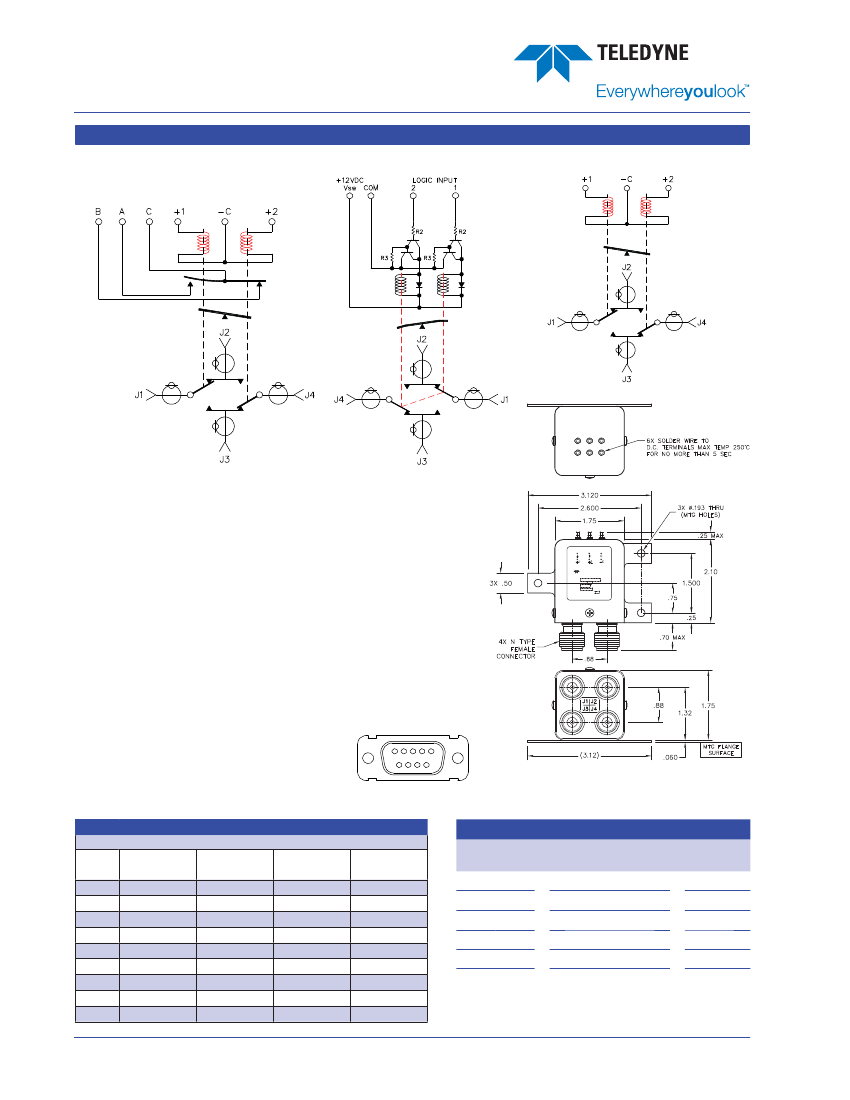

SCHEMATICS AND MECHANICAL OUTLINE
COAX SWITCHES
Analog
TTL
Indicators
P/N:
VOLTAGE:
VDC
D/C:
M/O:
RoHS
MADE IN
H= 2.10 STD & INDICATOR MODEL
H= 2.60 9-Pin D-Sub & TTL MODEL
1
6
“-
S OPTION
”
9
-
PIN D
-
SUB CONNECTOR
(
EXAMPLE
:
9 PIN D-SUB PINOUT FOR LATCHING TRANSFER
OPTIONS
CCS
-47
N
60-
S
)
TRUTH TABLE (with TTL option)
Logic Input
1
0
2
0
0
1
1
Off
On
1-2
RF Path
1-3
2-4
3-4
Indicator
(if applicable)
Pin
No.
1
2
3
4
5
6
7
8
9
Basic
1
2
C
Indicators
1
2
C
TTL
Indicators &
TTL
A
N/A
B
No Change
On
Off
On
Off
Off
On
Common
1
2
Vsw
A
B
C
Common
1
2
Vsw
A
B
C
1
0
1
A&C
B&C
N/A
Forbidden
CCS-47/CS-47 Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2013 TELEDYNE COAX SWITCHES
CCS-47\CS-47\082013\Q3
COAX SWITCHES

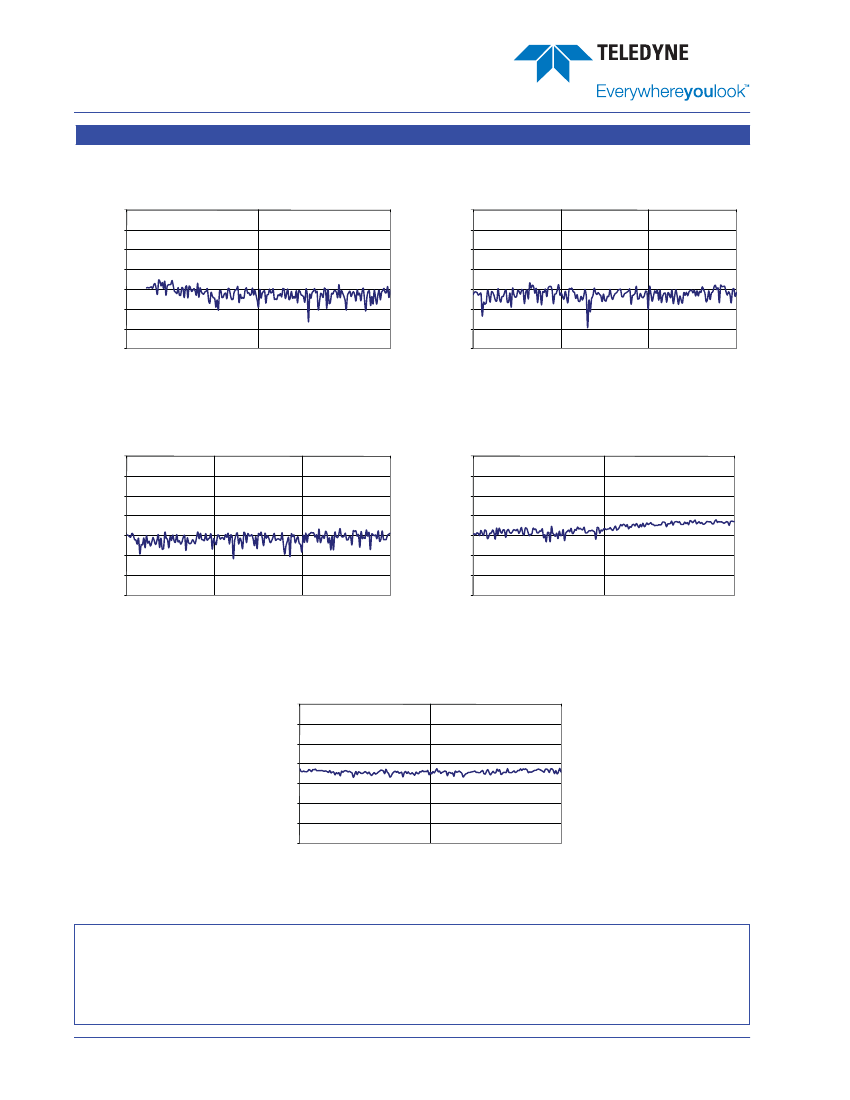

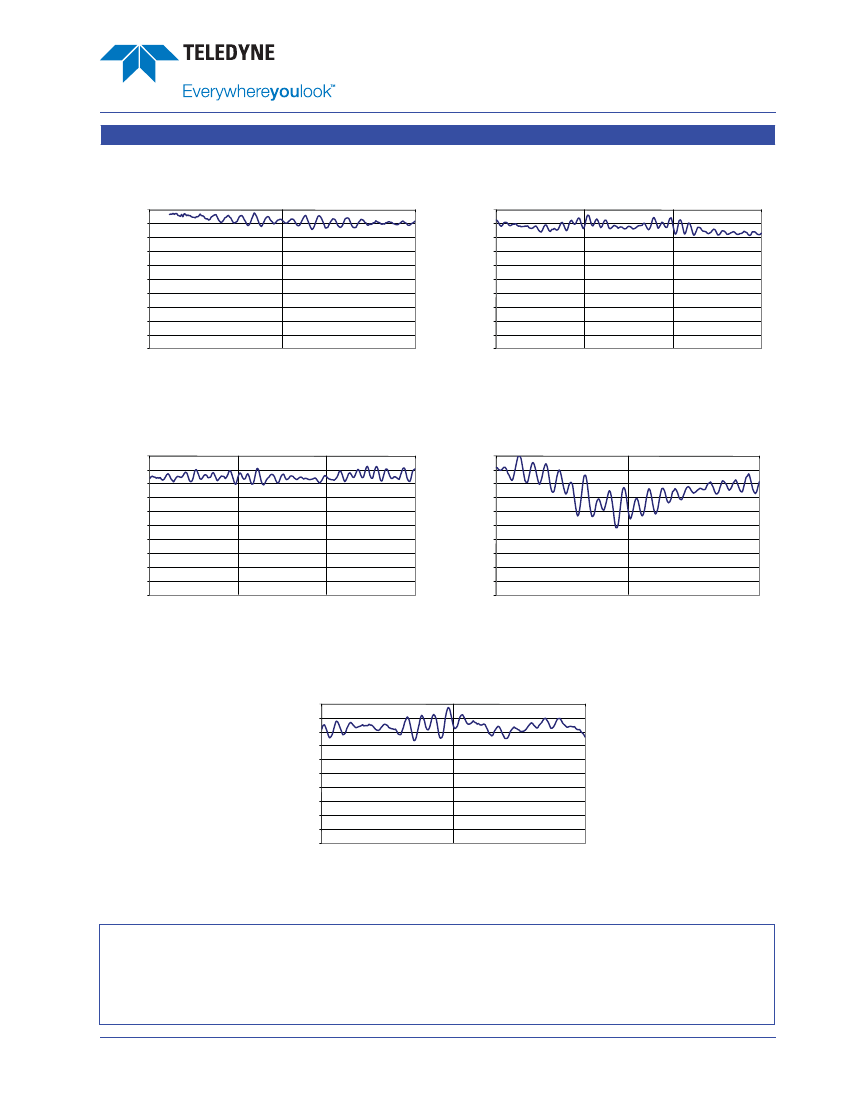

TYPICAL NARROWBAND RF INSERTION LOSS PERFORMANCE CURVES
Series CCS-47/CS-47
High Power DC–12 GHz
Latching TRANSFER Coaxial Switch
Insertion Loss ( DC-2 GHz )
0
-0.1
0
-0.1
Insertion Loss ( 2-5 GHz )
Insertion Loss (dB)
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1
0
1
2
Insertion Loss (dB)
-0.2
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1
2
3
4
5
Frequency (GHz)
Frequency (GHz)
Insertion Loss ( 5-8 GHz )
0
-0.1
0
-0.1
Insertion Loss ( 8-10 GHz )
Insertion Loss (dB)
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1
5
6
7
8
Insertion Loss (dB)
-0.2
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1
8
9
10
Frequency (GHz)
Frequency (GHz)
Insertion Loss ( 10-12 GHz )
0
-0.1
Insertion Loss (dB)
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1
10
11
12
Frequency (GHz)
RF NOTES
© 2013 TELEDYNE RELAYS
(800) 284-7007 • www.teledynecoax.com
CCS-47/CS-47 Page 3
