PN3075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PN3075

PN3075: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER; CategoryWireless rf/communication Radio frequency and microwave; File Size208KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

PN3075 Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER

PN3075 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	21 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

PN3075 / SPN3075 Amplifier Performance Datasheet

Cross Reference Guide

PN3075 / SPN3075*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 500.0 MHz

22.5 dB Typical

21.0 dB Min

2.4 dB Typical

3.0 dB Max

10.0 dBm Typical

8.0 dBm Min

22.0 dBm Typical

26.0 dBm Typical

1.5/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-24.0 dB Typical

-21.0 dB Min

12.0 Volts

22.0 mA

-55.0 - 85.0 °C

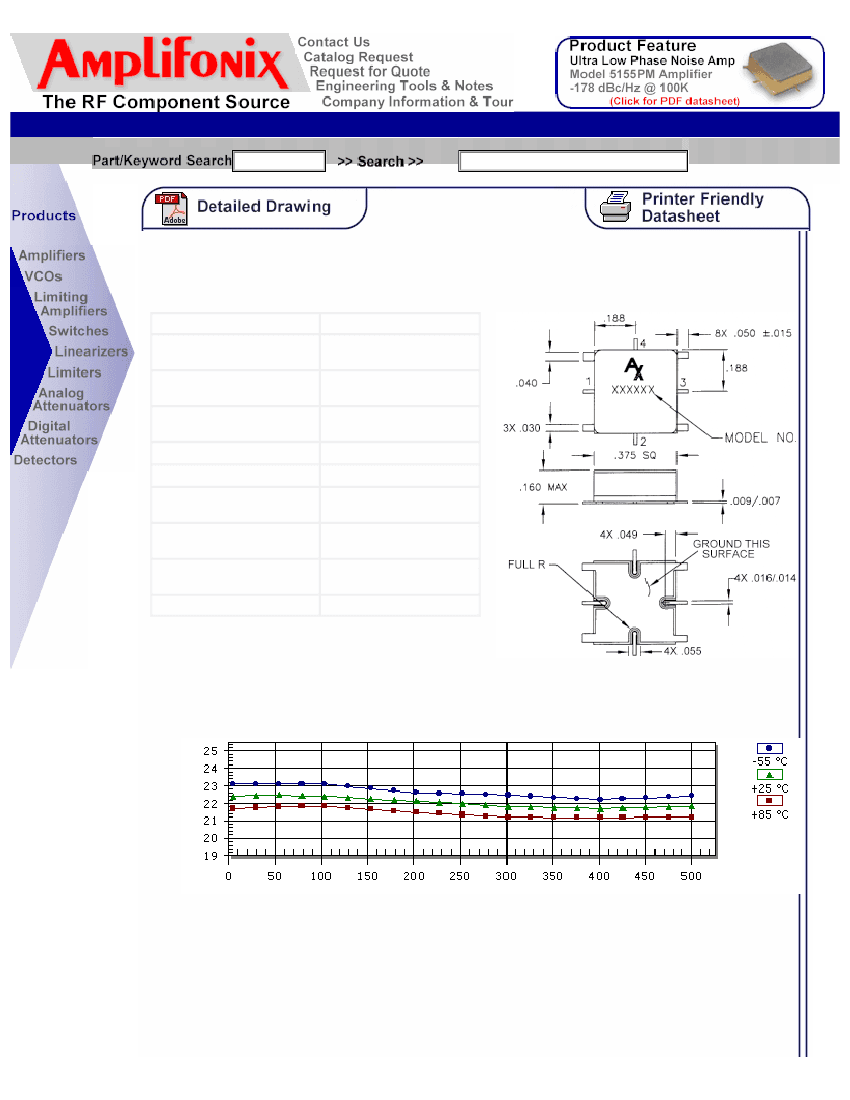

Package Drawing

Note: Care should always be taken to effectively

ground the case of each unit.

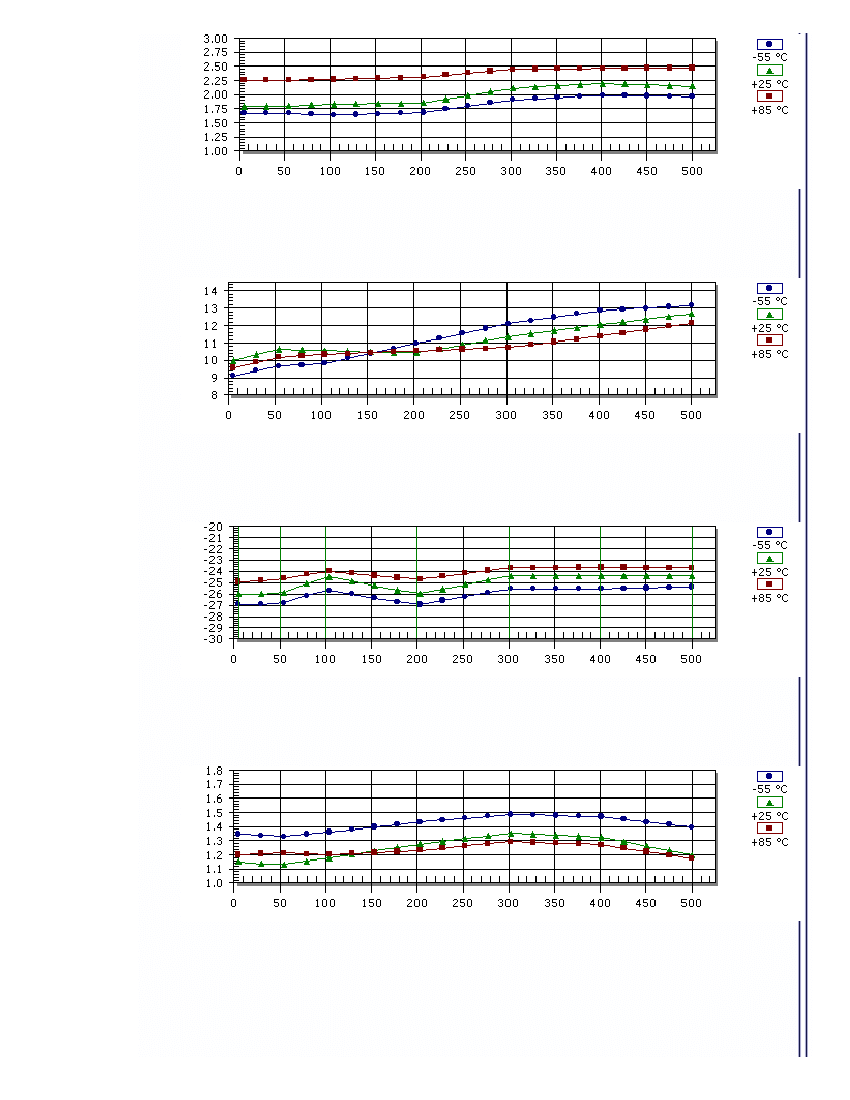

Gain

Frequency (MHz)

Noise Figure

http://www.amplifonix.com/bin/amp_sheet.pl?Pnum=TM3075&Pack=SM11 (1 of 3) [1/24/2005 3:31:25 PM]

PN3075 Related Products

	PN3075	SPN3075
Description	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	21 dB	21 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2
