SIDC03D60F6
Fast switching diode
A
Features:
•
600V Emitter Controlled technology 70 µm
chip
•
soft , fast switching
•
low reverse recovery charge
•
small temperature coefficient
This chip is used for:
•
power modules and discrete
devices
Applications:
•
SMPS, resonant applications,
drives
C
Chip Type
SIDC03D60F6
V
R
600V
I
F
6A
Die Size
1.2 x 2.25 mm
2
Package
sawn on foil
Mechanical Parameters
Raster size
Area total
Anode pad size
Thickness
Wafer size
Max. possible chips per wafer
Passivation frontside
Pad metal
Backside metal
Die bond
Wire bond
Reject ink dot size
Recommended storage environment
1.2 x 2.25
2.7
0.718 x 1.768
70
150
5650
Photoimide
3200 nm AlSiCu
Ni Ag –system
suitable for epoxy and soft solder die bonding
Electrically conductive glue or solder
Al,
≤250µm
∅
0.65mm; max 1.2mm
Store in original container, in dry nitrogen, in dark
environment, < 6 month at an ambient temperature of 23°C
µm
mm
mm
2
Edited by INFINEON Technologies, IMM PSD, L4324M, Edition 2.1, 09.03.2010
SIDC03D60F6
Maximum Ratings
Parameter
Repetitive peak reverse voltage
Continuous forward current
Maximum repetitive forward current
Junction temperature range
Operating junction temperature
Dynamic ruggedness²
)
1)
2)
Symbol
V
RRM
I
F
I
FRM
T
vj
T
vj
P
max
Condition
T
vj
= 25 °C
T
vj
< 150°C
T
vj
< 150°C
Value
600
1)
Unit
V
A
°C
°C
kW
12
-40...+175
-40...+150
I
F m a x
= 12A,
V
R m a x
= 600V,
T
vj
≤
150°C
tbd
depending on thermal properties of assembly
not subject to production test - verified by design/characterisation
Static Characteristic
(tested on wafer),
T
vj
= 25 °C
Parameter
Reverse leakage current
Cathode-Anode
breakdown Voltage
Diode forward voltage
Symbol
I
R
V
BR
V
F
Conditions
V
R
= 60 0 V
I
R
=0 .5m A
I
F
=6 A
600
1.6
Value
min.
typ.
max.
27
Unit
µA
V
V
Further Electrical Characteristics
Switching characteristics and thermal properties are depending strongly on module design and mounting
technology and can therefore not be specified for a bare die.
Edited by INFINEON Technologies, IMM PSD, L4324M, Edition 2.1, 09.03.2010
SIDC03D60F6

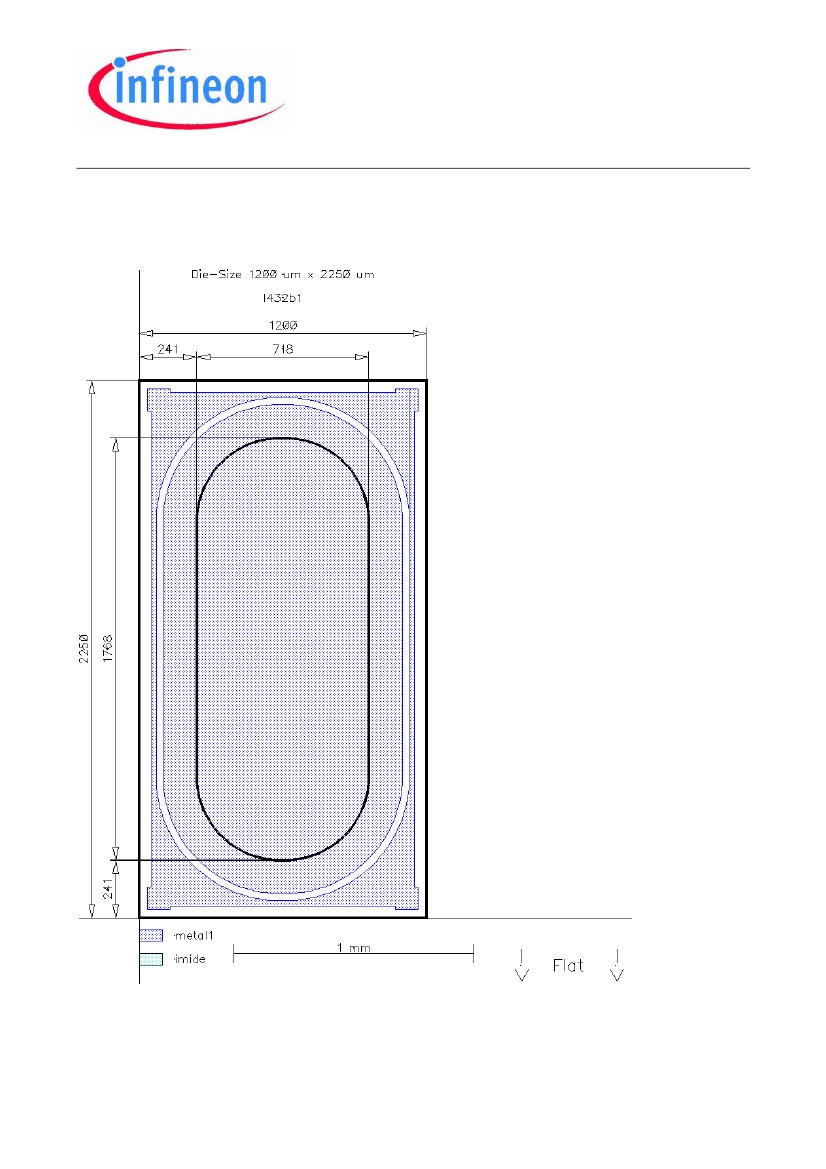

Chip Drawing
A
A: Anode pad
Edited by INFINEON Technologies, IMM PSD, L4324M, Edition 2.1, 09.03.2010
SIDC03D60F6
Description
AQL 0,65 for visual inspection according to failure catalogue
Electrostatic Discharge Sensitive Device according to MIL-STD 883
