PAT4556C5DBBB-LF datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PAT4556C5DBBB-LF

PAT4556C5DBBB-LF: Description0 MHz - 10000 MHz RF/MICROWAVE FIXED ATTENUATOR, LEAD FREE PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size34KB，1 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric View All

PAT4556C5DBBB-LF Overview

0 MHz - 10000 MHz RF/MICROWAVE FIXED ATTENUATOR, LEAD FREE PACKAGE-4

PAT4556C5DBBB-LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Thin Film Technology Corp (TFT)
Reach Compliance Code	compliant
Nominal attenuation	5 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	26.99 dBm
Maximum operating frequency	10000 MHz
Minimum operating frequency
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	NOT SPECIFIED

Preview

Download Datasheet

View All

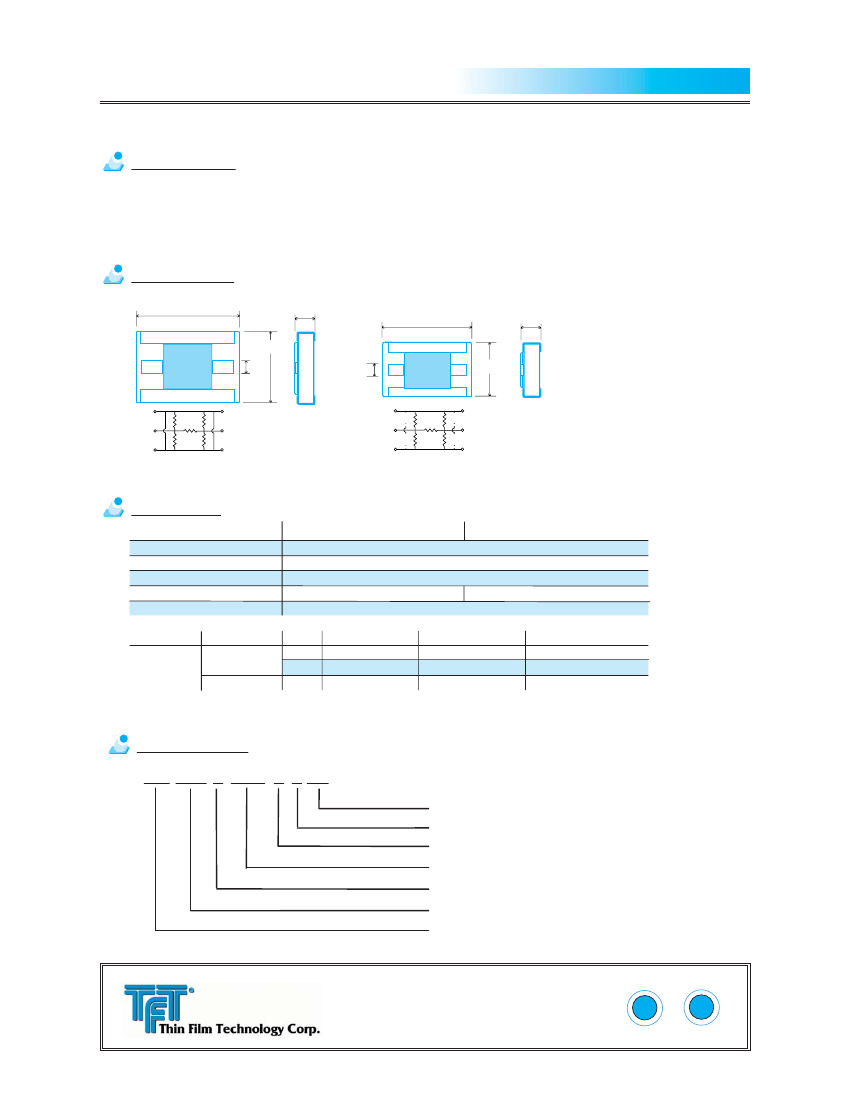

Thin Film Chip Attenuator

PAT W Series

1.0 Description

High performance thin film attenuation in a surface mount chip package. These devices offer 0 to 16 dB atten-

uation, are suited for high density circuit population, and have excellent characteristics for high frequency to 10

GHz.

2.0 Mechanical

5.6 ±0.2

0.8 ±0.15

4.2 ±0.2

0.8 ±0.15

4.5 ±0.2

0.8 ±0.15

3.0 ±0.2

1.3

±0.15

schematic

dimension mm

3.0 Electrical

Type

Attenuation (dB)

Impedance (code)

Frequency range

Power rating

Rated operation temperature

Attenuation

Tolerance

0 to 10 dB

16, 20 dB

Rank

DC to 2 GHz

±0.1 dB

±0.2 dB

500 mW

70°C

2 GHz to 5 GHz

±0.2 dB

±0.3 dB

5 GHz to 10 GHz

±0.4 dB

±0.5 dB

PAT 4556

50 ohm (C)

DC to 10 GHz

250 mW

PAT 3042

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 16, 20

4.0 Part Number

PAT 3042 C 10dB A B -LF

RoHS compliant/Lead Free products

Packaging (B = Bulk) (T = Tape)

Rank

Attenuation

Impedance

Package size

Product designator

TERE

ISO9001 ISO14001

303

561
