2N4857A-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N4857A-2

2N4857A-2: DescriptionPower Field-Effect Transistor, 40ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA; CategoryDiscrete semiconductor The transistor; File Size159KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

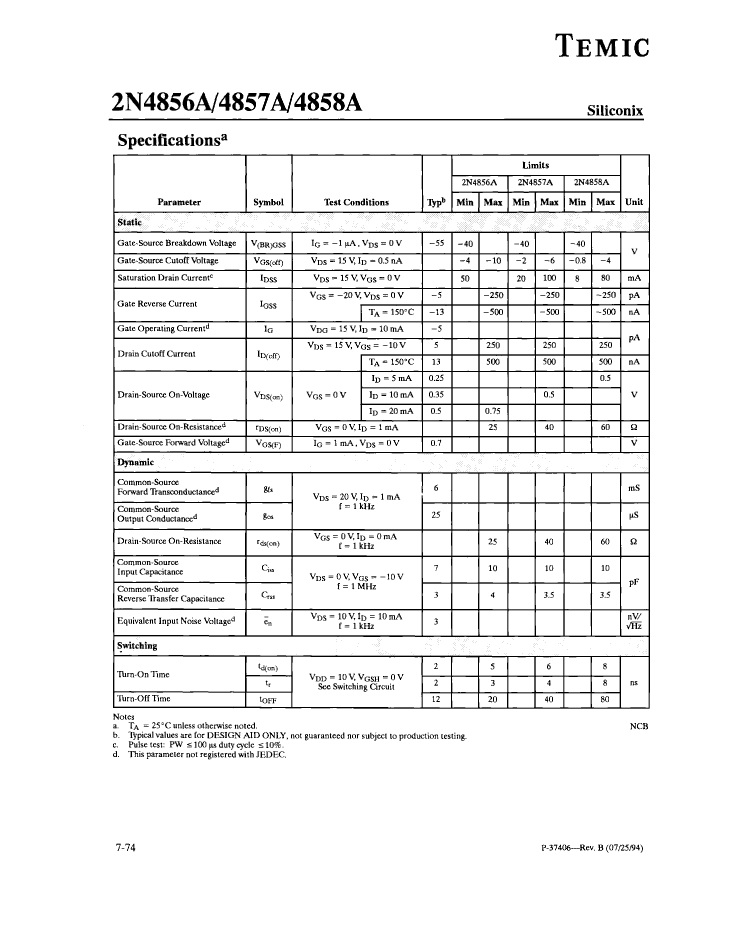

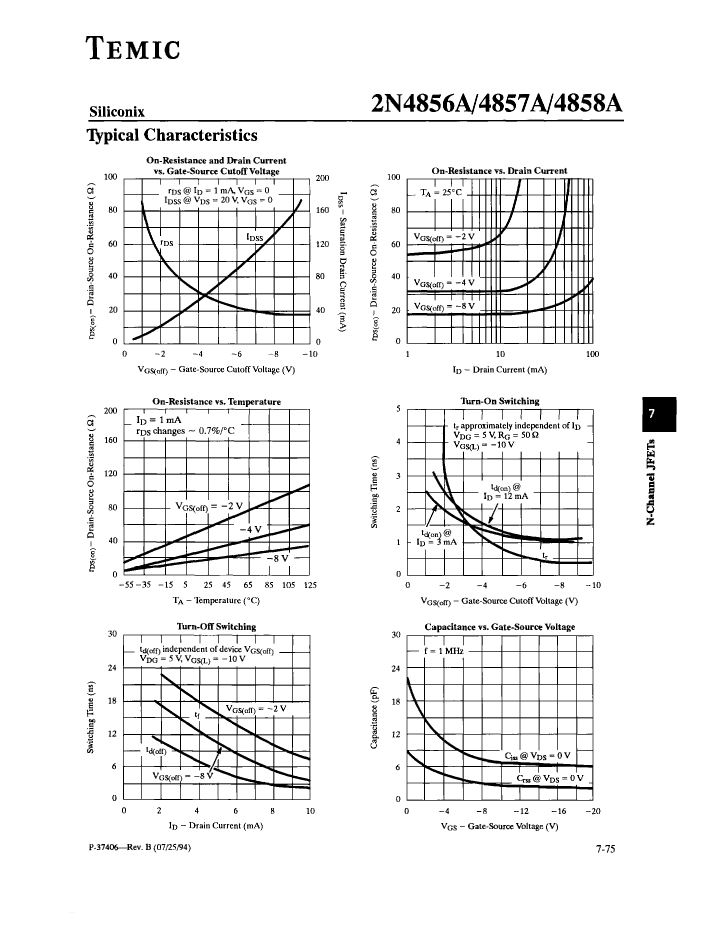

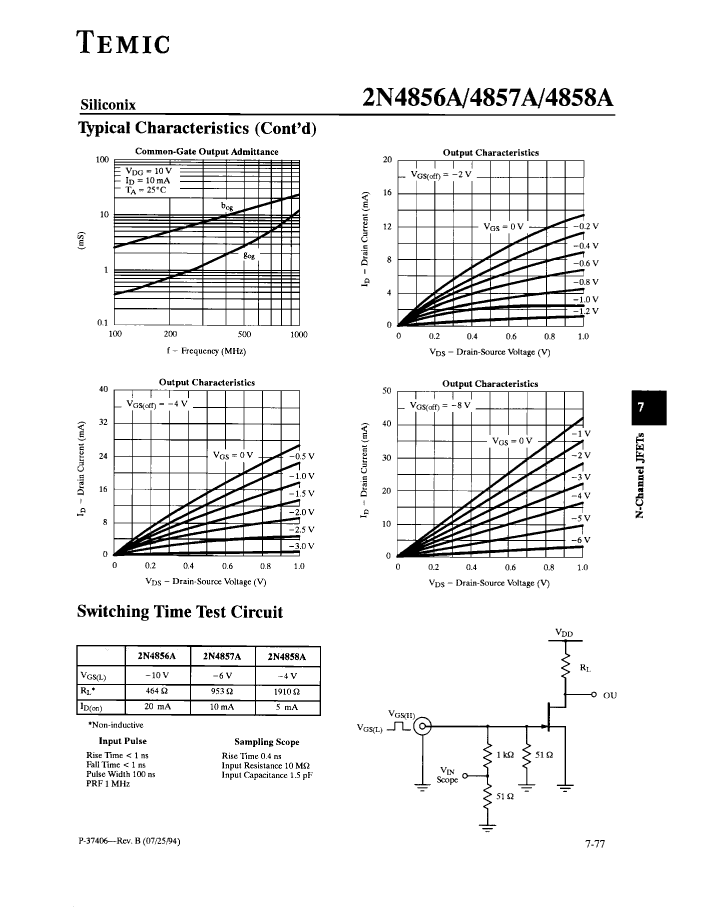

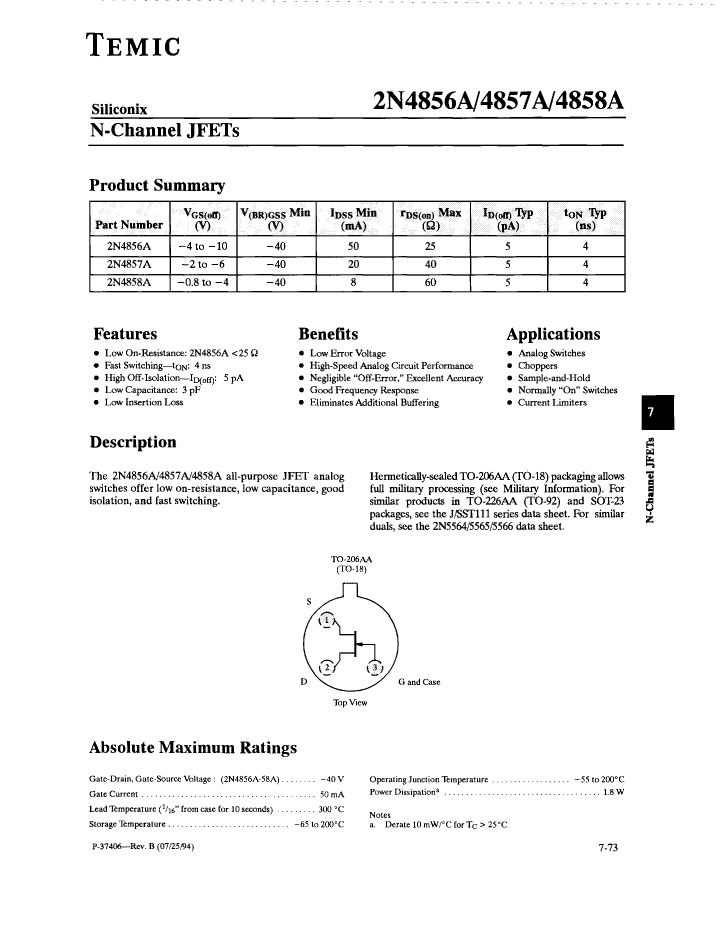

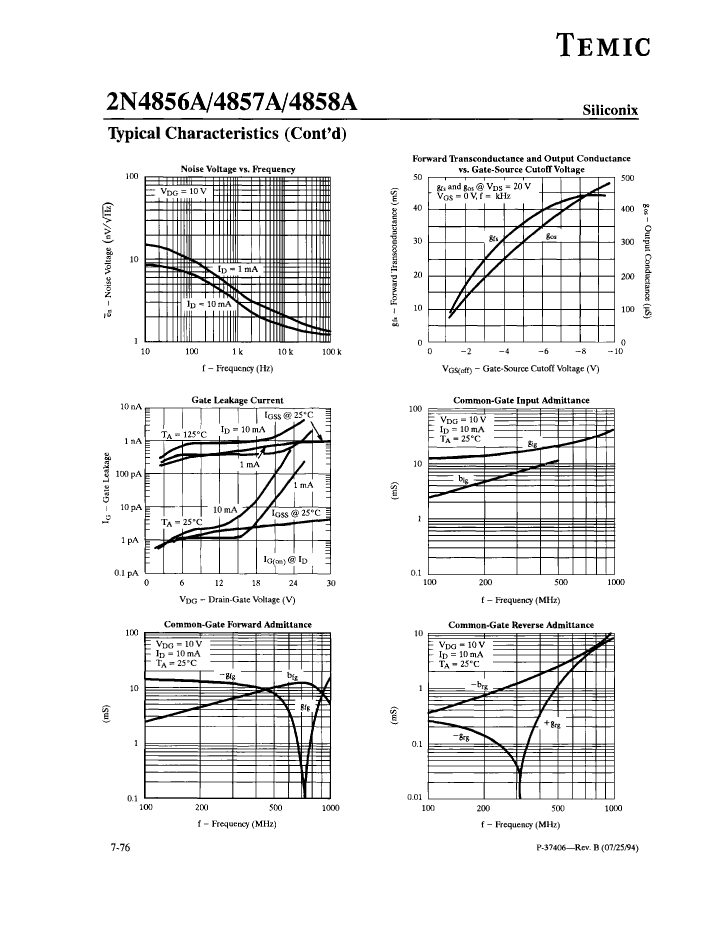

2N4857A-2 Overview

Power Field-Effect Transistor, 40ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA

2N4857A-2 Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
Shell connection	GATE
Configuration	SINGLE
Maximum drain-source on-resistance	40 Ω
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	3.5 pF
JEDEC-95 code	TO-206AA
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	40 ns
Maximum opening time (tons)	10 ns
Base Number Matches	1

Preview

Download Datasheet

View All

2N4857A-2 Related Products

	2N4857A-2	2N4856A-2	2N4856A-1	2N4857A-1	2N4858A-1	2N4858A-2
Description	Power Field-Effect Transistor, 40ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA	Power Field-Effect Transistor, 25ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA	Power Field-Effect Transistor, 25ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA	Power Field-Effect Transistor, 40ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA	Power Field-Effect Transistor, 60ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA	Power Field-Effect Transistor, 60ohm, 1-Element, N-Channel, Silicon, Junction FET, TO-206AA
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Shell connection	GATE	GATE	GATE	GATE	GATE	GATE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum drain-source on-resistance	40 Ω	25 Ω	25 Ω	40 Ω	60 Ω	60 Ω
FET technology	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION
Maximum feedback capacitance (Crss)	3.5 pF	4 pF	4 pF	3.5 pF	3.5 pF	3.5 pF
JEDEC-95 code	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA	TO-206AA
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	40 ns	20 ns	20 ns	40 ns	80 ns	80 ns
Maximum opening time (tons)	10 ns	8 ns	8 ns	10 ns	16 ns	16 ns
Base Number Matches	1	1	1	1	1	1
