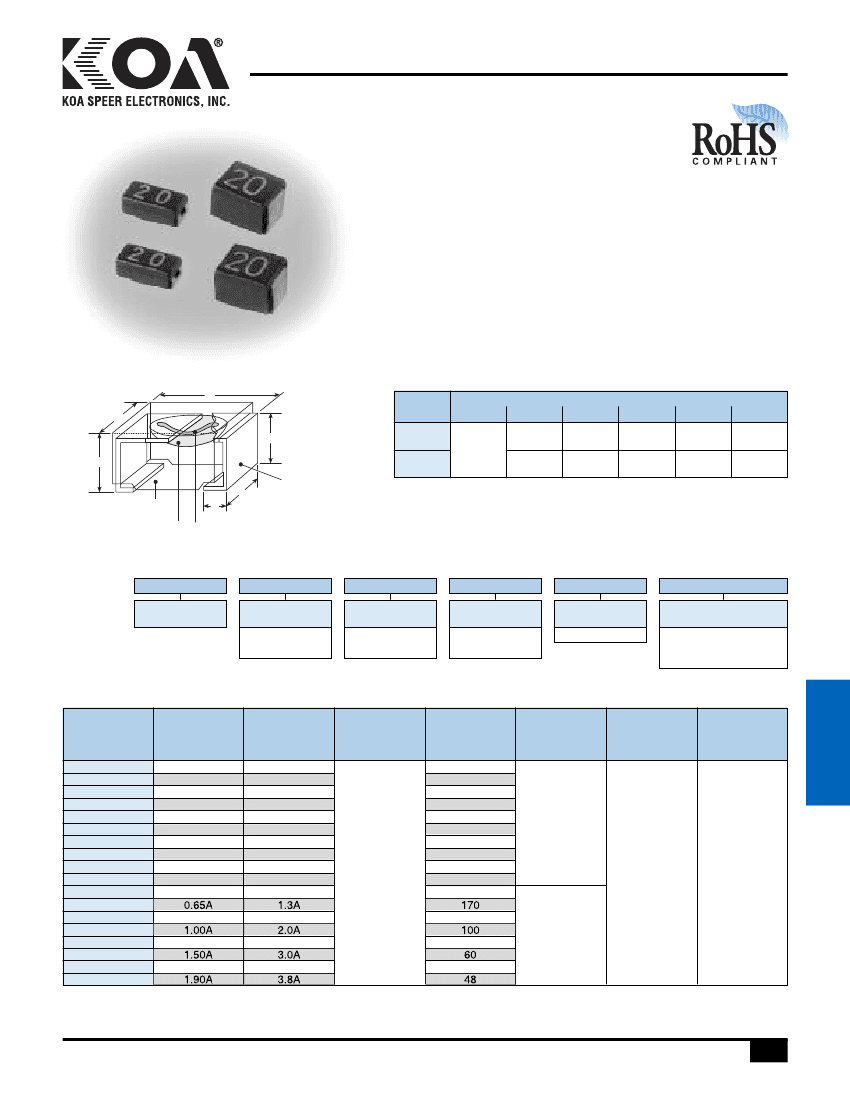

CCP
chip fuse
EU
features
•
•
•
•
•
•
•
•
Immediate cut-off of excessive heat
No generation of heat
UL94V0 epoxy case
Suitable for flow and reflow soldering
UL248.14, file #131375
One-time fuse device
Marking: Black body color with white marking
Products with lead-free terminations meet EU RoHS
and China RoHS requirements
dimensions and construction
L
W
h
t
Electrode
e
Molded
Resin
d
Size
Code
2B
2E
L
W
Dimensions
inches
(mm)
t
h
e
d
.063±.008 .047±.008 .031±.004
.126±.008
(1.6±0.2) (1.2±0.2) (0.8±0.1)
(3.2±0.2)
.098±.008 .087±.008 .075±.004
(2.5±0.2) (2.2±0.2) (1.9±0.1)
.047±.004 .024±.004
(1.2±0.1) (0.6±0.1)
.067±.004 .02±.004
(1.7±0.1) (0.5±0.1)
Buffer Fuse
Element
ordering information
New Part #
CCP
Type
2B
Size Code
2B: 1206
2E: 1210
20
Rating
Reference
rating chart
Nil
Fusing
Magnification
Nil: 2B, 2E: 250%
H: 2E: 200%
T
Termination
Material
T: Sn
TE
Packaging
TE: 7" embossed plastic
(2B - 3,000 pieces/reel)
(2E - 2,000 pieces/reel)
applications and ratings
Part
Designation
Current
Rating
Fusing
Current
Fusing
Time
Internal R.
Maximum
(mΩ)
Maximum
Open
Circuit
Voltage*
Rated
Ambient
Temperature
Operating
Temperature
Range
circuit
protection
CCP2B15
0.75A
1.5A
150
CCP2B20
1.00A
2.0A
100
CCP2B25
1.25A
2.5A
75
CCP2B30
1.50A
3.0A
60
CCP2B35
1.75A
3.5A
50
24V
CCP2B40
2.00A
4.0A
45
(40V/76V)*
CCP2B50
2.50A
5.0A
35
CCP2B63
3.15A
6.3A
23
CCP2B80
4.00A
8.0A
19
1 second max.
CCP2B100
5.00A
10.0A
15
@ fusing current
CCP2E10H
1.0A
0.50A
200
CCP2E13H
1.3A
0.65A
170
CCP2E15H
1.5A
0.75A
150
CCP2E20H
1.00A
2.0A
100
72V
CCP2E25H
2.5A
1.25A
75
CCP2E30H
1.50A
3.0A
60
CCP2E35H
1.75A
3.5A
50
CCP2E38H
1.90A
3.8A
48
* Note: High rated voltage (76V: 0.75A ~ 3.15A; 40V: 4A ~ 5A) also available, please contact KOA.
For further information on packaging, please refer to Appendix A.
+70°C
-40°C
to
+125°C
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
1/14/11
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
239
CCP
chip fuse
applications and ratings
(continued)
Part
Designation
CCP2E40H
CCP2E45H
CCP2E50H
CCP2E63H
CCP2E100
CCP2E10
CCP2E13
CCP2E15
CCP2E20
CCP2E25
CCP2E30
CCP2E35
CCP2E38
CCP2E40
CCP2E45
CCP2E50
CCP2E63
Current
Rating
2.00A
2.25A
2.50A
3.15A
4.00A
0.4A
0.52A
0.6A
0.8A
1.0A
1.2A
1.4A
1.5A
1.6A
1.8A
2.0A
2.5A
Fusing
Current
4.0A
4.5A
5.0A
6.3A
10.0A
1.0A
1.3A
1.5A
2.0A
2.5A
3.0A
3.5A
3.8A
4.0A
4.5A
5.0A
6.3A
Fusing
Time
Internal R.
Maximum
(mΩ)
45
40
35
23
15
200
170
150
100
75
60
50
48
45
40
35
23
Maximum
Open
Circuit
Voltage
Rated
Ambient
Temperature
Operating
Temperature
Range
1 second max.
@ fusing current
72V
+70°C
-40°C
to
+125°C

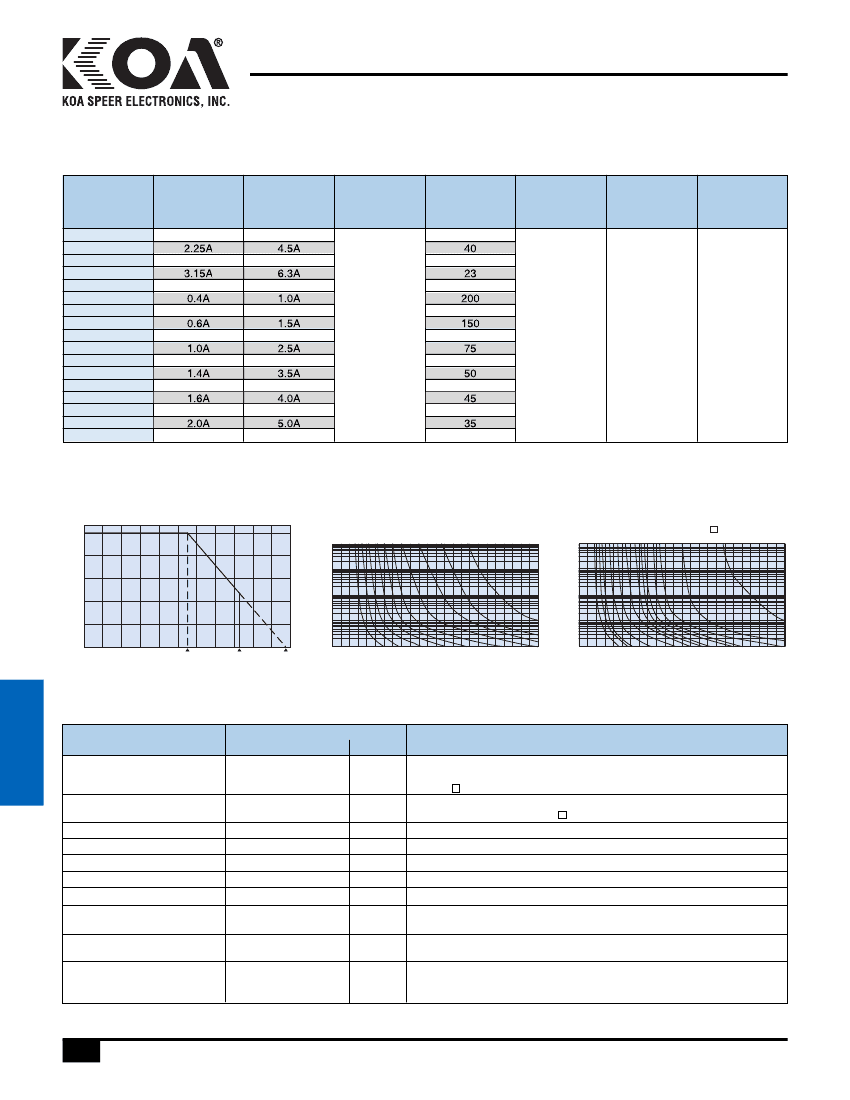

environmental applications
Derating Curve
100
10
80
Fusing Time (Sec.)
Fusing Time (Sec.)
% Rated Power
1
.1
.01
1
.1
.01
60
40
20
0
-40 -20
Fusing Characteristics
CCP2B
1520 2530 3540 50
63
80
100
10
10 131520 2530353840 45 50
CCP2E, CCP2E H
63
100
0
20
80 100 120 140 160 180
70
125
175
Ambient Temperature
(°C)
40
60
.001
0
1
2
3
4
5
6
7
8
9
10
11 12
.001
0
1
2
3
4
5
6
7
8
9
10
11
12
Fusing Current
(A)
Fusing Current
(A)
circuit
protection
Performance Characteristics
Parameter
Fusing Characteristics
Open Circuit Voltage
Residual Resistance
Bending Test
Resistance to Soldering Heat
Solderability
Load Life
Load Life Moisture
Rapid Change of Temperature
Resistance to Solvent
Requirement
∆
R±%
Limit
Typical
Within 1 second
No fusing, flaming,
explosion
10kΩ or more
No mechanical damages
±10%
±95% coverage min.
±10%
±10%
±10%
No evidence of
damages to protective
coating and marking
—
—
—
—
±2.5%
—
±3%
±1.5%
±4.0%
—
Test Method
CCP2B: 200% of rated current shall be carried
CCP2E: 250% of rated current shall be carried
CCP2E H: 200% of rated current shall be carried
Apply DC voltage between the termination after fusing.
CCP2B: 24V; CCP2E, CCP2E H: 72V
Measure DC resistance after fusing
Distance between holding points 90mm, bending width 10mm, 1 time
260°C ±5°C, 10 seconds ± 0.5 seconds, 2 cycles
230°C ±5°C, 3 seconds ± 0.5 seconds
70°C ± 3°C, 1000 hours, rated current, 1.5 hr ON, 0.5 hr OFF cycle
40°C ± 2°C, 90 - 95% RH, 1000 hours, rated current,
1.5 hr ON, 0.5 hr OFF cycle
-40°C (30 minutes), +125°C (30 minutes), 10 cycles
Conforming to MIL-STD-202F
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/23/10
240
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
